K 970 II Chain - Husqvarna Cut-Off Saw (2015-03) CRANKCASE Parts Diagram

Cut-Off Saw

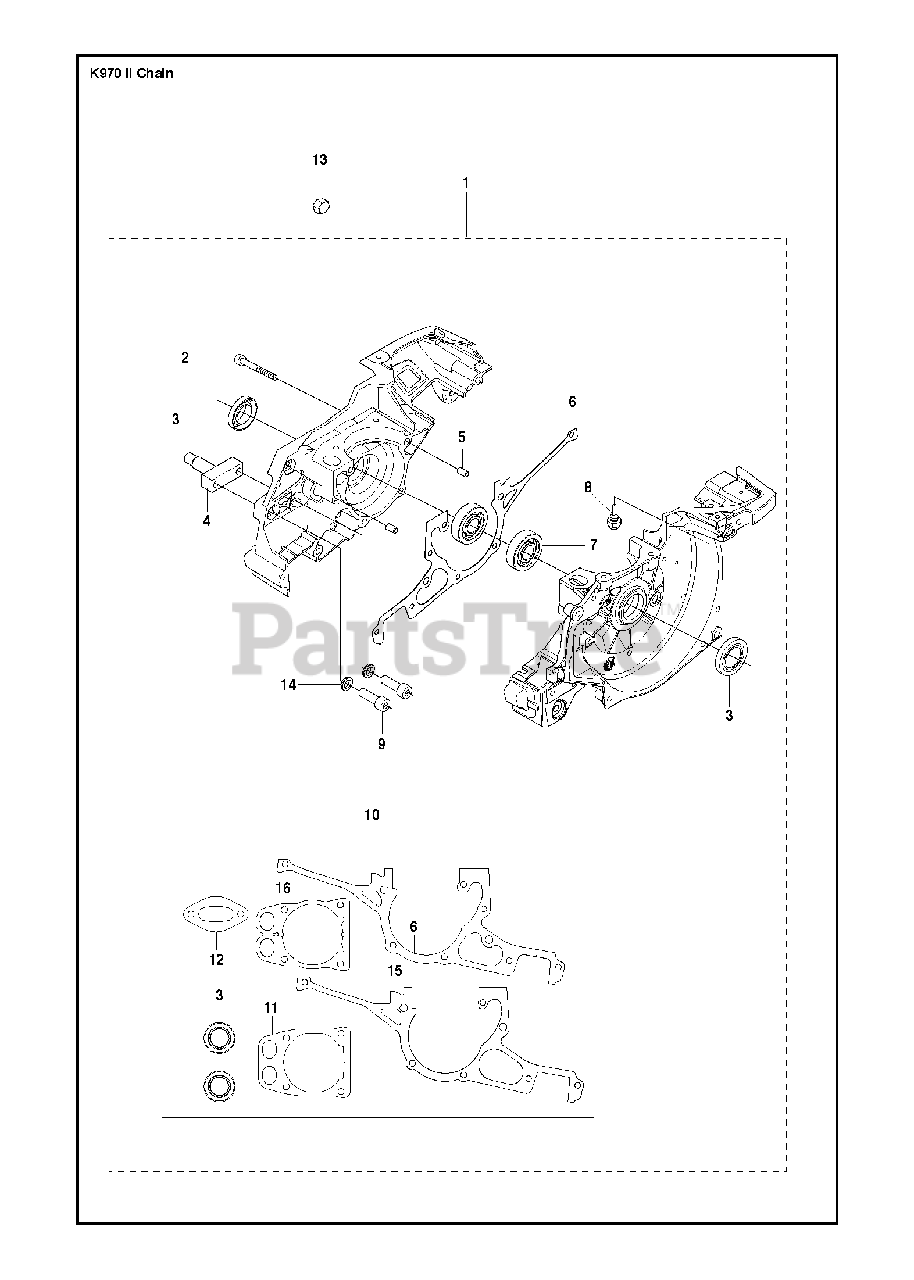

CRANKCASE Parts Diagram

  • Title

1

Husqvarna Construction 587 92 78-01

CRANKCASE ASSYIncl. 2 - 10, 14

$

$

Currently unavailable

2

Husqvarna 503 21 53-49

SCREW ITXSCM

$5.49

$

Usually ships in 3-10 days

0

3

Husqvarna 503 26 02-04

SEALING RING

$17.99

$

In Stock, Qty 5

0

4

Husqvarna Construction 584 95 08-01

BAR BOLT

$18.67

$

Usually ships in 3-10 days

0

5

Husqvarna 501 27 08-01

GUIDE BUSHING

$8.49

$

Usually ships in 3-10 days

0

6

Husqvarna 577 98 89-01

GASKET

$22.99

$

In Stock, only 1 left!

0

7

Husqvarna 503 25 00-02

BALL BEARING
(Superseded to 738220325)

$26.99

$

In Stock, Qty 7

0

8

Husqvarna 522 85 61-01

RUBBER BUSHING

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 725 54 53-01

SCREW IHSCM

$3.50

$

Usually ships in 3-10 days

0

10

Husqvarna 544 22 98-06

GASKET KITIncl. 3 , 6, 11-12, 15-16

$40.99

$

Usually ships in 3-10 days

0

11

Husqvarna 576 49 94-01

GASKET

$25.99

$

In Stock, only 1 left!

0

12

Husqvarna 506 37 81-01

GASKET
(Superseded to 585280901)

$6.99

$

In Stock, Qty 5

0

13

Husqvarna Construction 503 22 21-02

LOCK NUT

$2.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503 23 04-03

WASHER

$5.99

$

In Stock, Qty 10

0

15

Husqvarna 506 41 39-04

GASKET

$40.99

$

Usually ships in 3-10 days

0

16

Husqvarna 579 34 00-01

GASKET

$

$

Not available
