KBL 23 A (HA023F-BS01) - Kawasaki Brush Cutter CARBURETOR Parts Diagram

Brush Cutter

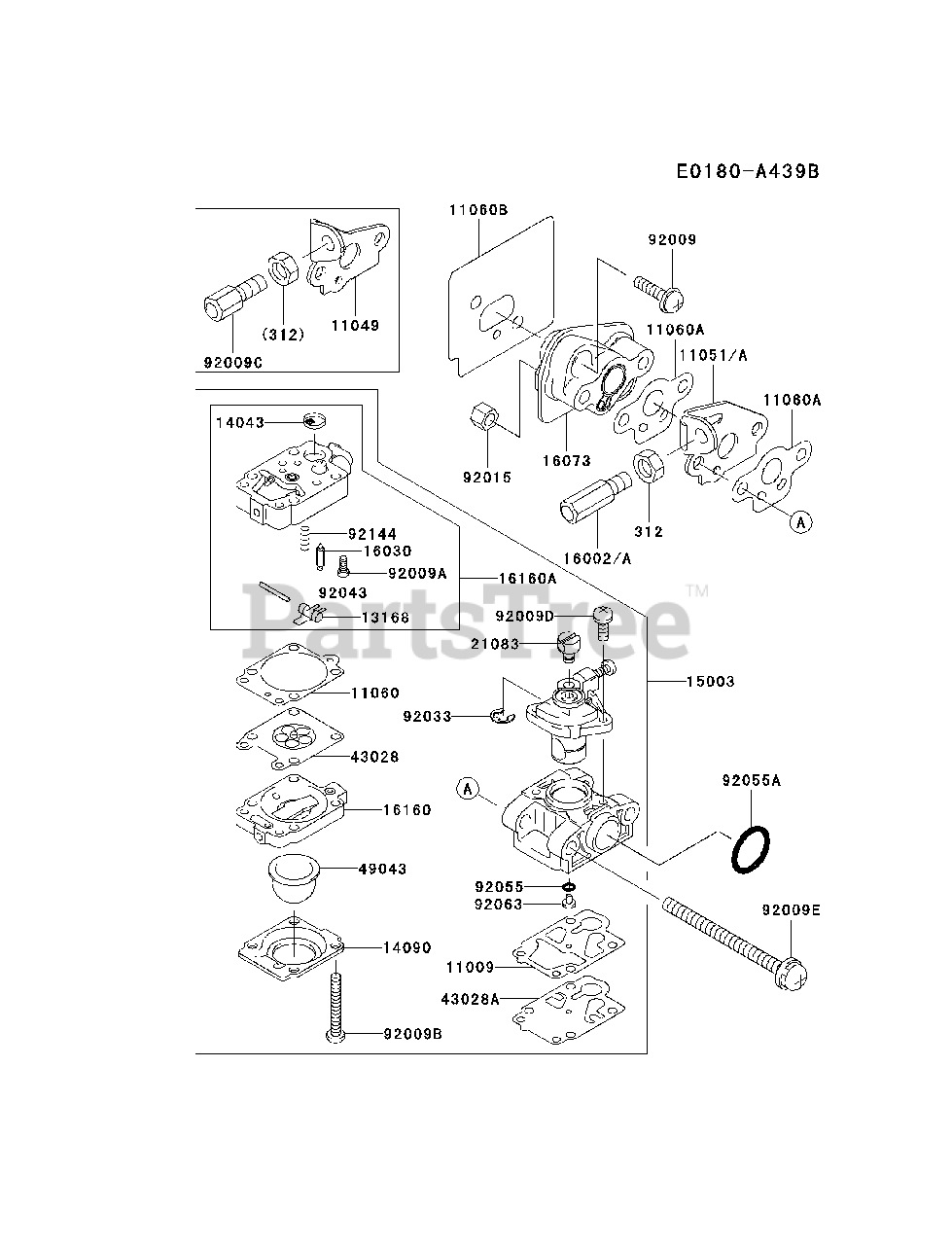

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 11009-2757

GASKET

$5.99

$

In Stock, Qty 6

0

11051

Kawasaki 11051-2112

BRACKET
(Superseded to 11049-2003)

$10.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2111

GASKET

$4.49

$

In Stock, Qty 8

0

11060A

Kawasaki 11060-2181

GASKET,CARBURETOR

$2.49

$

Usually ships in 2-5 days

0

11060B

Kawasaki 11060-2403

GASKET,INSULATOR

$2.99

$

Usually ships in 2-5 days

0

13168

Kawasaki 16055-2051

LEVER
(Superseded to 310370-6178A)

$5.49

$

In Stock, only 3 left!

0

14043

Kawasaki 14043-2051

FILTER
(Superseded to 14043-2055)

$3.49

$

In Stock, only 2 left!

0

14090

Kawasaki 14090-2017

COVER,PRIMER PUMP

$10.99

$

In Stock, only 1 left!

0

15003

Kawasaki 15003-2663

CARBURETOR-ASSY

$83.99

$

In Stock, only 1 left!

0

16002

Kawasaki 16002-2056

ADJUSTER-CABLE

$5.49

$

Usually ships in 2-5 days

0

16030

Kawasaki 16030-2078

VALVE-FLOAT
(Superseded to 16030-2064)

$19.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2190

INSULATOR
(Superseded to 16073-2231)

$11.99

$

Usually ships in 2-5 days

0

16160

Kawasaki 16160-2089

BODY

$37.99

$

Usually ships in 2-5 days

0

16160A

Kawasaki 16160-2103

BODY
(Superseded to 16160-2101)

$38.99

$

Usually ships in 2-5 days

0

21083

Kawasaki 21083-2073

ARM

$7.49

$

Usually ships in 2-5 days

0

43028

Kawasaki 43028-2054

DIAPHRAGM
(Superseded to 310370-6160A)

$25.99

$

In Stock, only 1 left!

0

43028A

Kawasaki 43028-2067

DIAPHRAGM

$9.49

$

In Stock, only 1 left!

0

49043

Kawasaki 49043-2067

PUMP-PRIMING

$11.99

$

In Stock, Qty 9

0

92009

Kawasaki 92009-2249

SCREW,5X20
(Superseded to 92172-2128)

$0.99

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2336

SCREW

$3.49

$

In Stock, Qty 5

0

92009B

Kawasaki 92009-2337

SCREW

$3.49

$

In Stock, only 4 left!

0

92009D

Kawasaki 92009-2373

SCREW

$

$

Not available

92009E

Kawasaki 92009-2397

SCREW,5X65

$0.99

$

In Stock, Qty 6

0

92015

Kawasaki 92015-2097

NUT,M5

$0.99

$

In Stock, Qty 5

0

92033

Kawasaki 92033-2078

RING-SNAP

$1.99

$

In Stock, only 3 left!

0

92043

Kawasaki 92043-2094

PIN

$2.49

$

In Stock, only 1 left!

0

92055

Kawasaki 92055-2147

RING-O

$4.49

$

Usually ships in 2-5 days

0

92055A

Kawasaki 92055-2184

RING-O,14.8X2.4

$1.99

$

Usually ships in 2-5 days

0

92063

Kawasaki 92063-2355

JET-MAIN,#34

$8.49

$

Usually ships in 2-5 days

0

92144

Kawasaki 92144-2308

SPRING

$3.99

$

Usually ships in 2-5 days

0

312

Kawasaki 312B0600

NUT-HEX
(Superseded to 312AA0600)

$0.99

$

In Stock, Qty 20+

0
