KBL 27 A (KBL27A-A1) - Kawasaki Brush Cutter CASE/CUTTER Parts Diagram

Brush Cutter

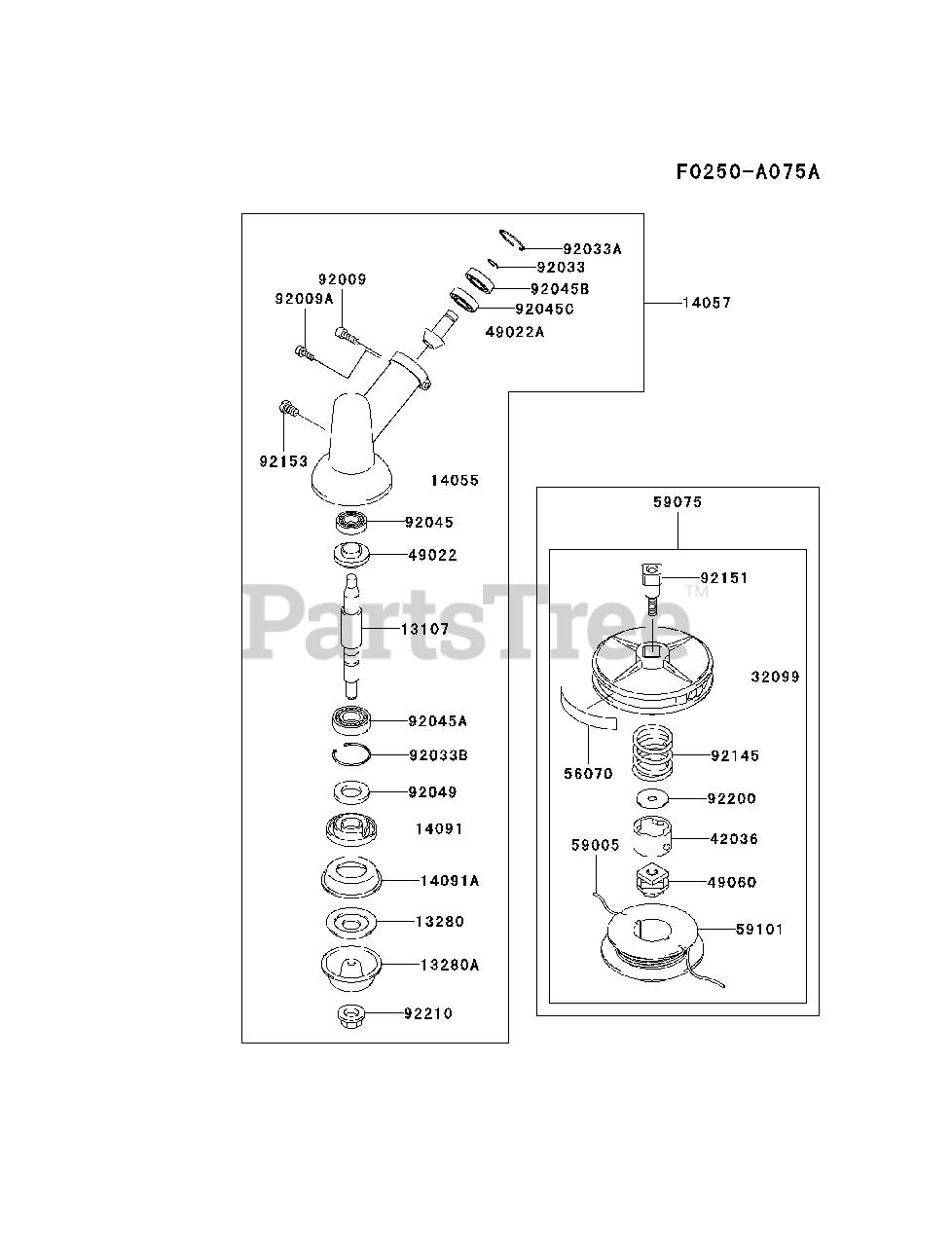

CASE/CUTTER Parts Diagram

  • Title

13107

Kawasaki 13107-T001

SHAFT,SPLINE
(Superseded to 13107-T005)

$41.99

$

Usually ships in 2-5 days

0

13280

Kawasaki 13280-T001

HOLDER,

Note: B

$16.99

$

Usually ships in 2-5 days

0

56070

Kawasaki 56070-2035

LABEL-WARNING

$4.49

$

In Stock, only 1 left!

0

13280A

Kawasaki 13280-T002

HOLDER,LWR

$5.49

$

In Stock, only 1 left!

0

14055

Kawasaki 14055-T001

CASE-GEAR

$73.99

$

In Stock, only 1 left!

0

14057

Kawasaki 14057-T001

CASE-COMP-GEAR
(Superseded to 14057-T007)

$289.99

$

Usually ships in 2-5 days

0

14091

Kawasaki 14091-T001

COVER,C.P.

$21.99

$

Usually ships in 2-5 days

0

14091A

Kawasaki 14091-T002

COVER,GRASS

$8.99

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2340

CASE,CUTTER

$39.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-2101

SLEEVE,CUTTER

$14.99

$

Usually ships in 2-5 days

0

49022

Kawasaki 49022-T001

GEAR-BEVEL

$40.99

$

Usually ships in 2-5 days

0

49022A

Kawasaki 49022-T002

GEAR-BEVEL

$47.99

$

Usually ships in 2-5 days

0

49060

Kawasaki 49060-2058

CAM,CUTTER

$14.99

$

Usually ships in 2-5 days

0

59005

Kawasaki 59005-2008

STRING,2.4X6900

$7.49

$

Usually ships in 2-5 days

0

59075

Kawasaki 59075-2017

CUTTER-CORD,M8,L

$36.99

$

In Stock, only 1 left!

0

59101

Kawasaki 59101-2108

REEL,CUTTER

$13.99

$

In Stock, Qty 10

0

92009

Kawasaki 92009-T001

SCREW,5X25

$1.49

$

In Stock, only 4 left!

0

92009A

Kawasaki 92009-T002

SCREW,5X15

$0.99

$

In Stock, only 3 left!

0

92033

Kawasaki 92033-T001

RING-SNAP,DIA=9

$0.99

$

In Stock, only 4 left!

0

92033A

Kawasaki 92033-T002

RING-SNAP,DIA=24

$1.49

$

In Stock, Qty 8

0

92033B

Kawasaki 92033-T003

RING-SNAP,DIA=28

$1.49

$

In Stock, only 3 left!

0

92045

Kawasaki 92045-T001

BEARING-BALL,626OP C3

$11.99

$

Usually ships in 2-5 days

0

92045A

Kawasaki 92045-T002

BEARING-BALL,6001OP C3
(Superseded to 92045-T006)

$14.99

$

Usually ships in 2-5 days

0

92045B

Kawasaki 92045-T003

BEARING-BALL,609DD

$15.99

$

Usually ships in 2-5 days

0

92045C

Kawasaki 92045-T004

BEARING-BALL,609OP C3

$12.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 92049-T001

SEAL-OIL,NSK DS16284

$8.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-2064

SPRING

$4.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2098

BOLT,CUTTER,M8,L

$20.99

$

In Stock, only 1 left!

0

92153

Kawasaki 92153-T001

BOLT,8X10

$0.99

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-2095

WASHER

$0.99

$

In Stock, Qty 7

0

92210

Kawasaki 92210-T001

NUT,LOCK

$2.49

$

In Stock, only 4 left!

0
