KBL 27 C (KBL27C-A1) - Kawasaki Brush Cutter COOLING-EQUIPMENT Parts Diagram

Brush Cutter

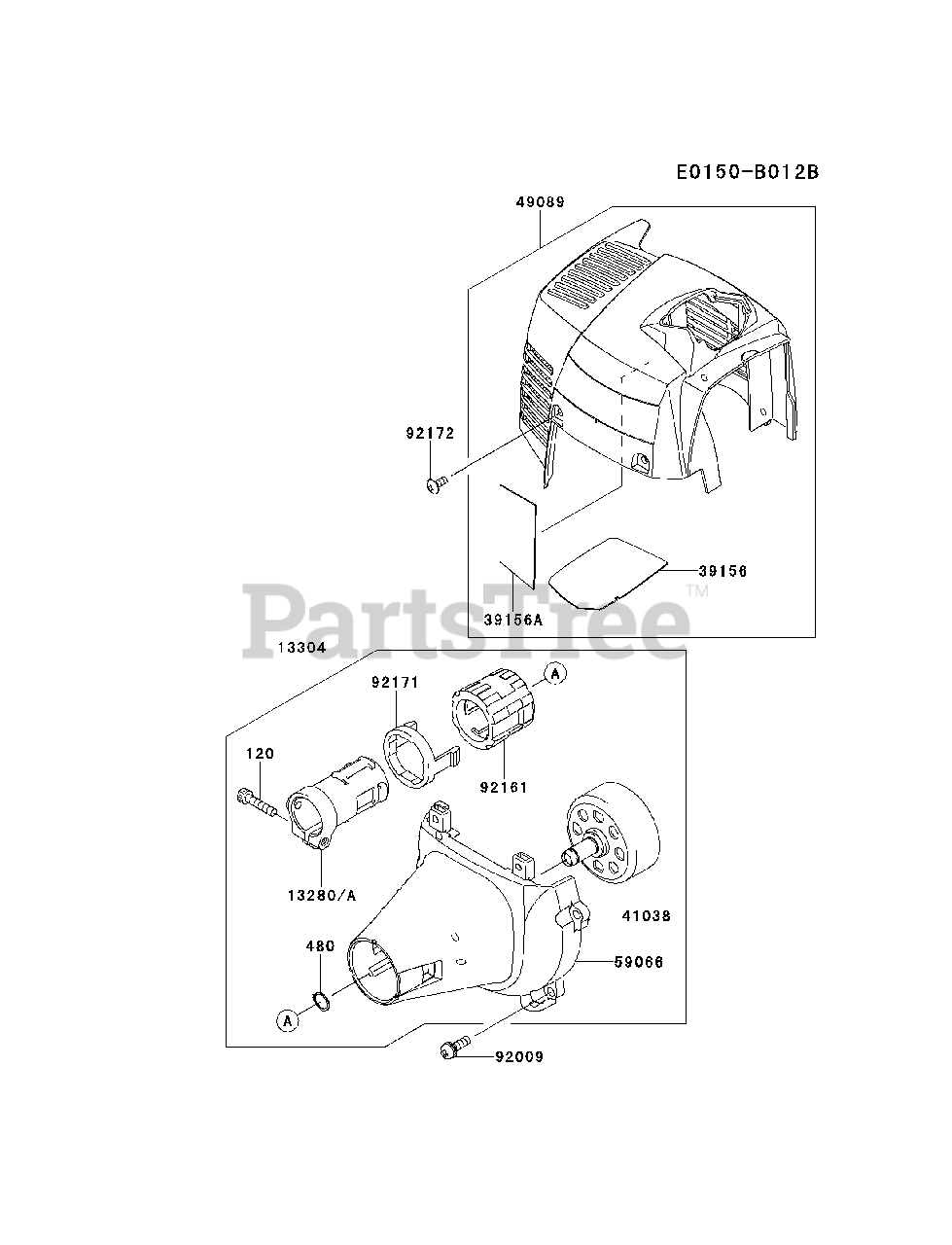

COOLING-EQUIPMENT Parts Diagram

  • Title

13280

Kawasaki 13280-2066

HOLDER
(Superseded to 13280-2076)

Note: Substitute part, supplied until the stock is exhausted.

$26.99

$

Usually ships in 2-5 days

0

13280A

Kawasaki 13280-2076

HOLDER
(Superseded to 13280-2077)

$26.99

$

Usually ships in 2-5 days

0

13304

Kawasaki 13304-2244

HOUSING-ASSY
(Superseded to 13304-0642)

$202.99

$

Usually ships in 2-5 days

0

39156

Kawasaki 39156-2084

PAD

$2.99

$

Usually ships in 2-5 days

0

39156A

Kawasaki 391562093

PAD

$8.49

$

Usually ships in 2-5 days

0

41038

Kawasaki 41038-2089

DRUM
(Superseded to 41038-2091)

$80.99

$

In Stock, only 1 left!

0

49089

Kawasaki 49089-2729

SHROUD-ENGINE
(Superseded to 49089-0767)

$62.99

$

Usually ships in 2-5 days

0

59066

Kawasaki 59066-2798

HOUSING-FAN
(Superseded to 59066-2825)

$117.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2395

SCREW,5X16

$0.99

$

In Stock, Qty 8

0

92161

Kawasaki 921612065

DAMPER

$6.49

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-2072

CLAMP

$3.99

$

Usually ships in 2-5 days

0

92172

Kawasaki 921722060

SCREW,4X10

$0.99

$

Usually ships in 2-5 days

0

120

Kawasaki 120CB0522

BOLT-SOCKET,5X22
(Superseded to 120S0522)

$1.99

$

In Stock, only 4 left!

0

480

Kawasaki 480J1000

CIRCLIP,10MM

$0.99

$

In Stock, Qty 5

0
