KBL 34 A (HA034F-AS01) - Kawasaki Brush Cutter AIR-FILTER/MUFFLER Parts Diagram

Brush Cutter

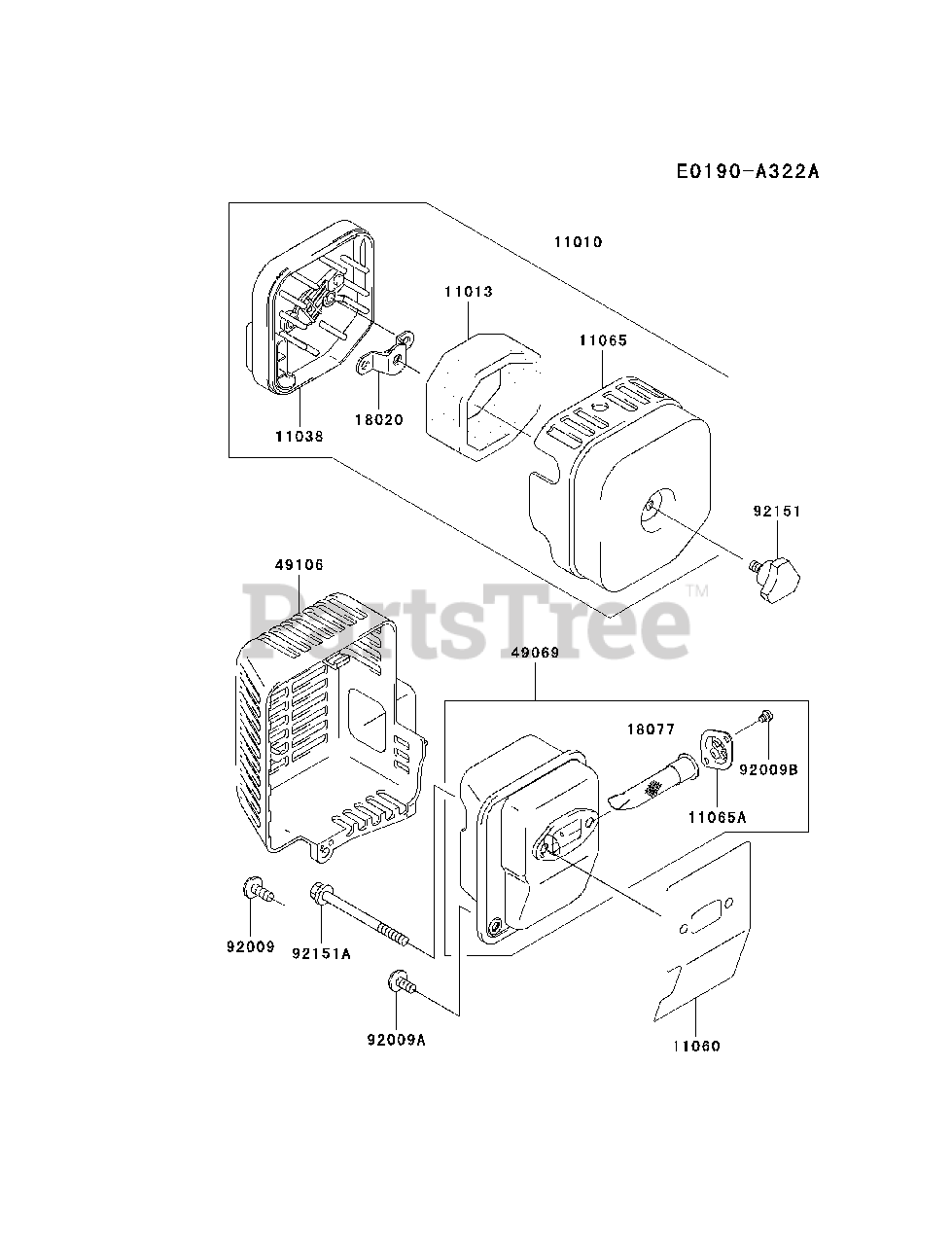

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-2525

FILTER-ASSY-AIR

$30.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-2184

ELEMENT-AIR FILTER

$1.99

$

In Stock, Qty 7

0

11038

Kawasaki 11038-2069

CASE-ASSY-AIR FILTER

$13.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2436

GASKET,MUFFLER

$9.49

$

Usually ships in 2-5 days

0

11065

Kawasaki 11065-2070

CAP,AIR FILTER

$9.99

$

Usually ships in 2-5 days

0

11065A

Kawasaki 11065-2071

CAP,SPARK ARRESTER

$4.99

$

Usually ships in 2-5 days

0

18020

Kawasaki 18020-2082

BAFFLE
(Superseded to 18020-2078)

$4.49

$

In Stock, only 1 left!

0

18077

Kawasaki 18077-2109

ARRESTER-SPARK

$25.99

$

Usually ships in 2-5 days

0

49069

Kawasaki 49069-2319

MUFFLER-ASSY

$

$

Not available

49106

Kawasaki 49106-2622

COVER-MUFFLER
(Superseded to 49106-2653)

$53.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2393

SCREW,5X12

$0.99

$

In Stock, Qty 5

0

92009A

Kawasaki 92009-2410

SCREW,5X10

$1.49

$

Usually ships in 2-5 days

0

92009B

Kawasaki 92009-2411

SCREW

$0.99

$

In Stock, Qty 16

0

92151

Kawasaki 92151-2075

BOLT

$3.99

$

In Stock, only 2 left!

0

92151A

Kawasaki 92151-2108

BOLT,5X60

$2.99

$

Usually ships in 2-5 days

0
