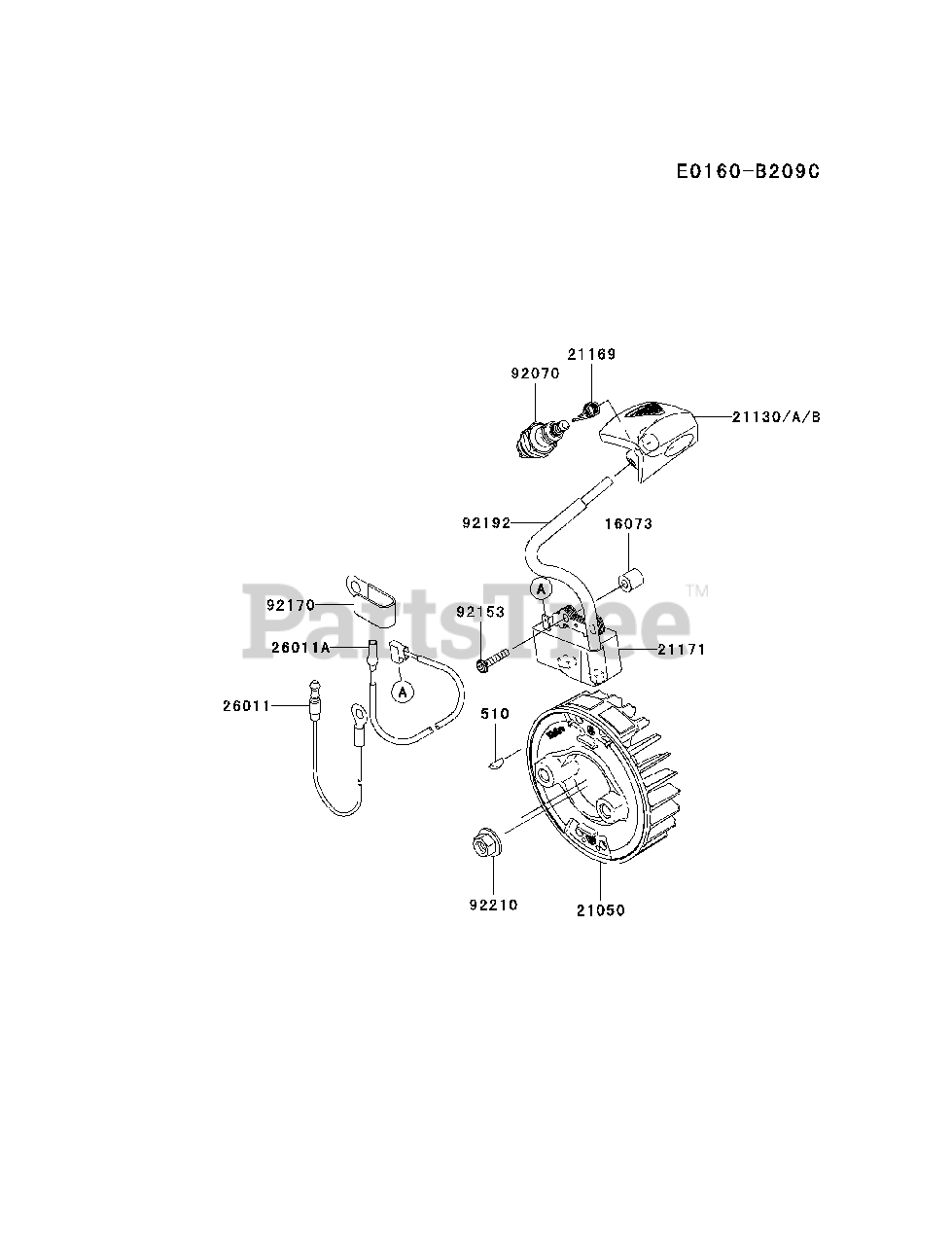

KBL 35 A (KBL35A-A1) - Kawasaki Brush Cutter ELECTRIC-EQUIPMENT Parts Diagram

Brush Cutter

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

16073

Kawasaki 16073-2220

INSULATOR

$1.99

$

In Stock, Qty 7

0

21050

Kawasaki 21050-2317

FLYWHEEL

$140.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-2074

CAP-SPARK PLUG
(Superseded to 21130-2077)

Note: Substitute part, supplied until the stock is exhausted.

$8.99

$

In Stock, only 2 left!

0

21130B

Kawasaki 21130-2077

CAP-SPARK PLUG
(Superseded to 99996-6112)

$8.99

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2051

TERMINAL
(Superseded to 311509-8419B)

$

$

Not available

21171

Kawasaki 21171-2257

COIL-ASSY-IGNITION

$122.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 260112113

WIRE-LEAD

$2.99

$

Usually ships in 2-5 days

0

26011A

Kawasaki 26011-2361

WIRE-LEAD,L=230
(Superseded to 26011-2376)

$6.99

$

In Stock, only 1 left!

0

92070

Kawasaki 92070-2107

PLUG-SPARK,BPMR7A,SOLID
(Superseded to BPMR7A)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-2134

BOLT,4X20

$

$

Not available

92170

Kawasaki 92170-2041

CLAMP

$

$

Not available

92192

Kawasaki 92192-2165

TUBE,6X6.6X80

$7.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-2094

NUT,M8

$1.99

$

In Stock, Qty 5

0

510

Kawasaki 510A3100

KEY-WOODRUFF

$2.99

$

In Stock, only 1 left!

0
