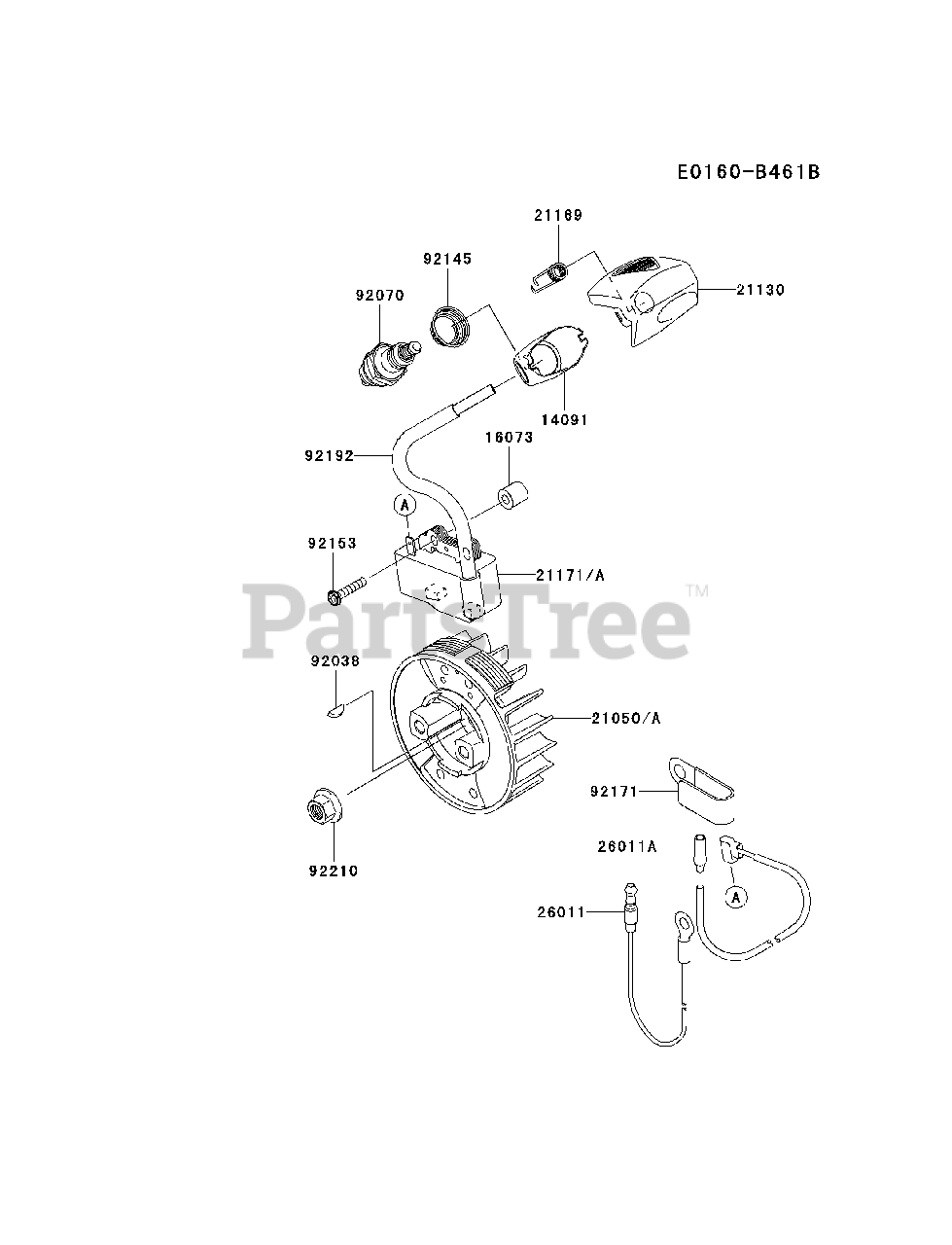

KCL 525 A (KCL525A-A1) - Kawasaki Hedge Trimmer ELECTRIC-EQUIPMENT Parts Diagram

Hedge Trimmer

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

14091

Kawasaki 14091-2147

COVER

$13.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2239

INSULATOR

$2.49

$

Usually ships in 2-5 days

0

21050

Kawasaki 21050-2316

FLYWHEEL

$146.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-2071

CAP-SPARK PLUG
(Superseded to 21130-2076)

$6.49

$

In Stock, only 1 left!

0

21169

Kawasaki 21169-2078

TERMINAL
(Superseded to 21169-2075)

$1.49

$

In Stock, Qty 11

0

21171

Kawasaki 21171-2265

COIL-ASSY-IGNITION

$107.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 260112113

WIRE-LEAD

$2.99

$

Usually ships in 2-5 days

0

26011A

Kawasaki 26011-2388

WIRE-LEAD,L=230

$

$

Not available

92038

Kawasaki 92038-2106

KEY

$8.99

$

In Stock, only 4 left!

0

92070

Kawasaki 92070-2107

PLUG-SPARK,BPMR7A,SOLID
(Superseded to BPMR7A)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92145

Kawasaki 92145-2193

SPRING

$9.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-2138

BOLT,4X20

$1.99

$

In Stock, only 4 left!

0

92171

Kawasaki 921712067

CLAMP

$7.49

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-2135

TUBE

$17.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-0737

NUT,8MM

$

$

Not available
