KCS 525 A (KCS525A-A2) - Kawasaki Hedge Trimmer CASE/CUTTER Parts Diagram

Hedge Trimmer

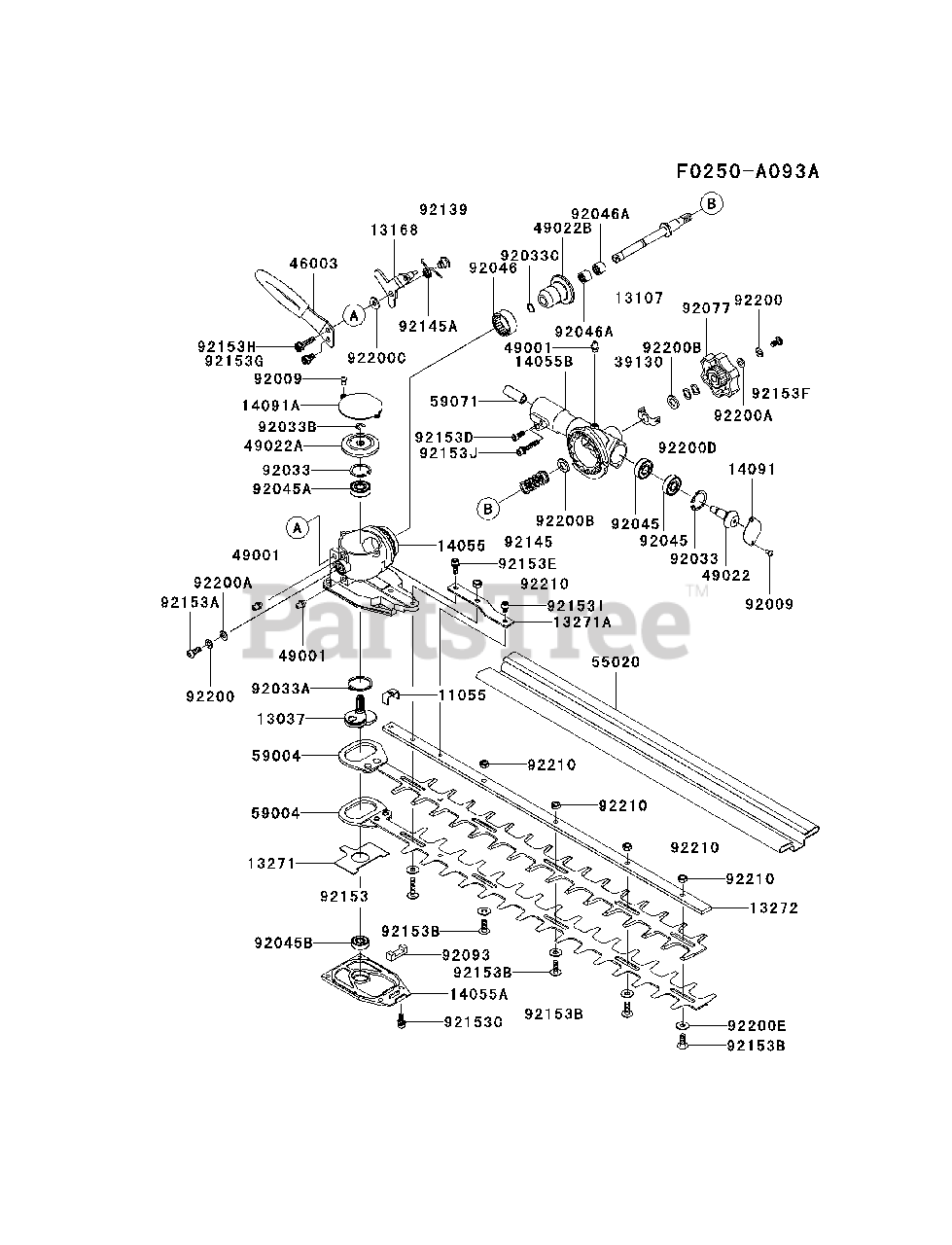

CASE/CUTTER Parts Diagram

  • Title

11055

Kawasaki 11055-V001

BRACKET

$5.99

$

Usually ships in 2-5 days

0

13037

Kawasaki 13037-V001

CRANKSHAFT

$87.99

$

Usually ships in 2-5 days

0

13107

Kawasaki 13107-V001

SHAFT

$108.99

$

Usually ships in 2-5 days

0

13168

Kawasaki 13168-V005

LEVER

$34.99

$

In Stock, only 2 left!

0

13271

Kawasaki 13271-V008

PLATE

$15.99

$

Usually ships in 2-5 days

0

13271A

Kawasaki 13271-V009

PLATE

$10.99

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-V001

PLATE,S500

$72.99

$

Usually ships in 2-5 days

0

14055

Kawasaki 14055-V006

CASE-GEAR,UPP

$167.99

$

Usually ships in 2-5 days

0

14055A

Kawasaki 14055-V007

CASE-GEAR,LWR

$52.99

$

In Stock, only 1 left!

0

14055B

Kawasaki 14055-V008

CASE-GEAR,JOINT

$77.99

$

In Stock, only 1 left!

0

14091

Kawasaki 14091-V002

COVER,

Note: C

$5.49

$

Usually ships in 2-5 days

0

14091A

Kawasaki 14091-V003

COVER,

Note: B

$8.99

$

Usually ships in 2-5 days

0

39130

Kawasaki 39130-V001

SPRING-LEAF

$14.99

$

Usually ships in 2-5 days

0

46003

Kawasaki 46003-V001

HANDLE

$18.99

$

Usually ships in 2-5 days

0

49001

Kawasaki 49001-2058

NIPPLE-GREASE
(Superseded to 99971-0209)

$1.99

$

Usually ships in 2-5 days

0

49022

Kawasaki 49022-V001

GEAR-BEVEL,1.5-14

$50.99

$

In Stock, only 1 left!

0

49022A

Kawasaki 49022-V002

GEAR-BEVEL,1.5-32

$67.99

$

Usually ships in 2-5 days

0

49022B

Kawasaki 49022-V003

GEAR-BEVEL,1.5-14X27

$82.99

$

In Stock, only 2 left!

0

55020

Kawasaki 55020-V004

GUARD,CUTTER

$18.99

$

In Stock, only 1 left!

0

59004

Kawasaki 59004-V007

CUTTER,500

$65.99

$

In Stock, Qty 6

0

59071

Kawasaki 59071-V001

JOINT

$22.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-V002

SCREW,4X8

$0.99

$

In Stock, Qty 10

0

92033

Kawasaki 92033-V002

RING-SNAP,DIA=26

$1.49

$

In Stock, Qty 10

0

92033A

Kawasaki 92033-V003

RING-SNAP,DIA=28

$5.99

$

In Stock, Qty 9

0

92033B

Kawasaki 92033-V004

RING-SNAP,DIA=6

$0.99

$

Usually ships in 2-5 days

0

92033C

Kawasaki 92033-V005

RING-SNAP,DIA=10

$0.99

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-V001

BEARING-BALL,ZZ 6000
(Superseded to 92045-2242)

$15.99

$

In Stock, only 2 left!

0

92045A

Kawasaki 92045-V002

BEARING-BALL,UU 6000

$13.99

$

Usually ships in 2-5 days

0

92045B

Kawasaki 92045-V003

BEARING-BALL,UU 608

$10.99

$

Usually ships in 2-5 days

0

92046

Kawasaki 92046-V001

BEARING-NEEDLE

$31.99

$

In Stock, only 1 left!

0

92046A

Kawasaki 92046-V002

BEARING-NEEDLE

$12.99

$

In Stock, Qty 5

0

92077

Kawasaki 92077-V001

KNOB

$8.99

$

In Stock, only 1 left!

0

92093

Kawasaki 92093-V002

SEAL

$7.99

$

Usually ships in 2-5 days

0

92139

Kawasaki 92139-V001

BUSHING

$4.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-V009

SPRING

$2.99

$

Usually ships in 2-5 days

0

92145A

Kawasaki 92145-V010

SPRING

$2.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-V007

BOLT,L=28

$3.49

$

In Stock, Qty 18

0

92153A

Kawasaki 92153-V010

BOLT,SOCKET,6X16

$1.99

$

Usually ships in 2-5 days

0

92153B

Kawasaki 92153-V011

BOLT,CUTTER

$2.99

$

Usually ships in 2-5 days

0

92153C

Kawasaki 92153-V012

BOLT,SOCKET,5X14

$1.49

$

Usually ships in 2-5 days

0
