KCS 525 AC (KCS525AC-A1) - Kawasaki Hedge Trimmer PIPE/HANDLE/GUARD Parts Diagram

Hedge Trimmer

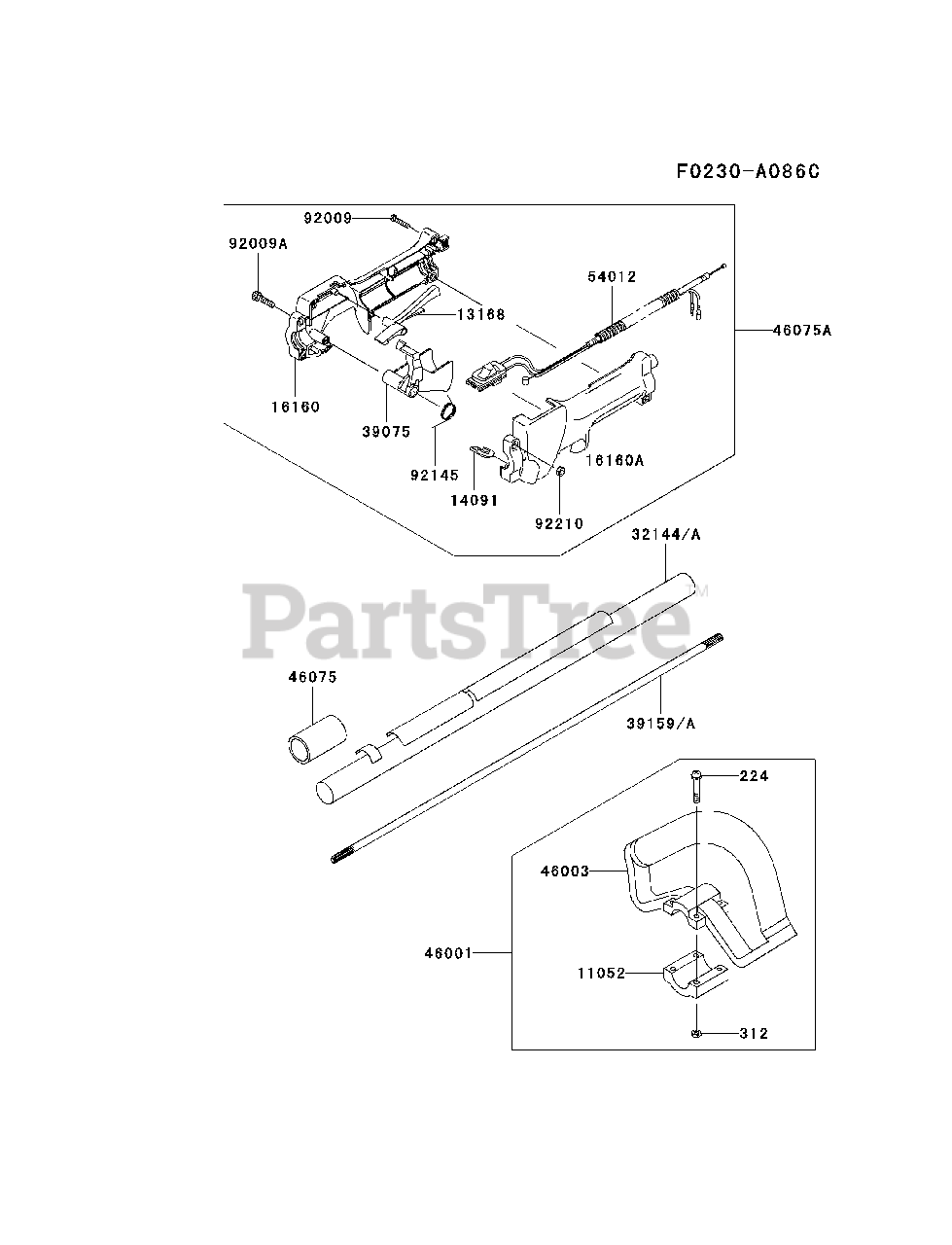

PIPE/HANDLE/GUARD Parts Diagram

  • Title

11052

Kawasaki 11052-X001

BRACKET

$

$

Not available

13168

Kawasaki 13168-X001

LEVER,STOP
(Superseded to 13168-R001)

$11.99

$

In Stock, only 1 left!

0

14091

Kawasaki 14091X001

COVER,TOP

$

$

Not available

16160

Kawasaki 16160X001

BODY,GRIP,RH

$23.99

$

Usually ships in 2-5 days

0

16160A

Kawasaki 16160X002

BODY,GRIP,LH

$23.99

$

Usually ships in 2-5 days

0

32144

Kawasaki 32144-V002

PIPE-ASSY,L=750

$41.99

$

Usually ships in 2-5 days

0

32144A

Kawasaki 32144-V004

PIPE-ASSY,L=750
(Superseded to 32144-V008)

$39.99

$

Usually ships in 2-5 days

0

39075

Kawasaki 39075X001

LEVER-THROTTLE

$14.99

$

Usually ships in 2-5 days

0

39159

Kawasaki 39159-V002

SHAFT-DRIVE,L=792
(Superseded to 39159-V013)

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

39159A

Kawasaki 39159-V004

SHAFT-DRIVE,L=797
(Superseded to 39159-V013)

$

$

Not available

46001

Kawasaki 46001-X001

HANDLE-ASSY

$40.99

$

Usually ships in 2-5 days

0

46003

Kawasaki 46003-X001

HANDLE

$33.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075V002

GRIP,130

$26.99

$

Usually ships in 2-5 days

0

46075A

Kawasaki 46075X001

GRIP,ASSY

$129.99

$

Usually ships in 2-5 days

0

54012

Kawasaki 54012-X001

CABLE-THROTTLE,ASSY

$40.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009X001

SCREW,4X20

$0.99

$

In Stock, only 2 left!

0

92009A

Kawasaki 92009X002

SCREW,5X20

$1.99

$

In Stock, only 4 left!

0

92145

Kawasaki 92145X001

SPRING,RETURN

$2.49

$

In Stock, only 2 left!

0

92210

Kawasaki 92210X001

NUT,M5

$0.99

$

In Stock, Qty 8

0

224

Kawasaki 224AB0530

SCREW-PAN-WP-CROS,5X30

$

$

Not available

312

Kawasaki 312AA0500

NUT-HEX,5MM

$0.99

$

In Stock, Qty 9

0
