KCS 600 A (KCS600A-A4) - Kawasaki Hedge Trimmer CASE/CUTTER Parts Diagram

Hedge Trimmer

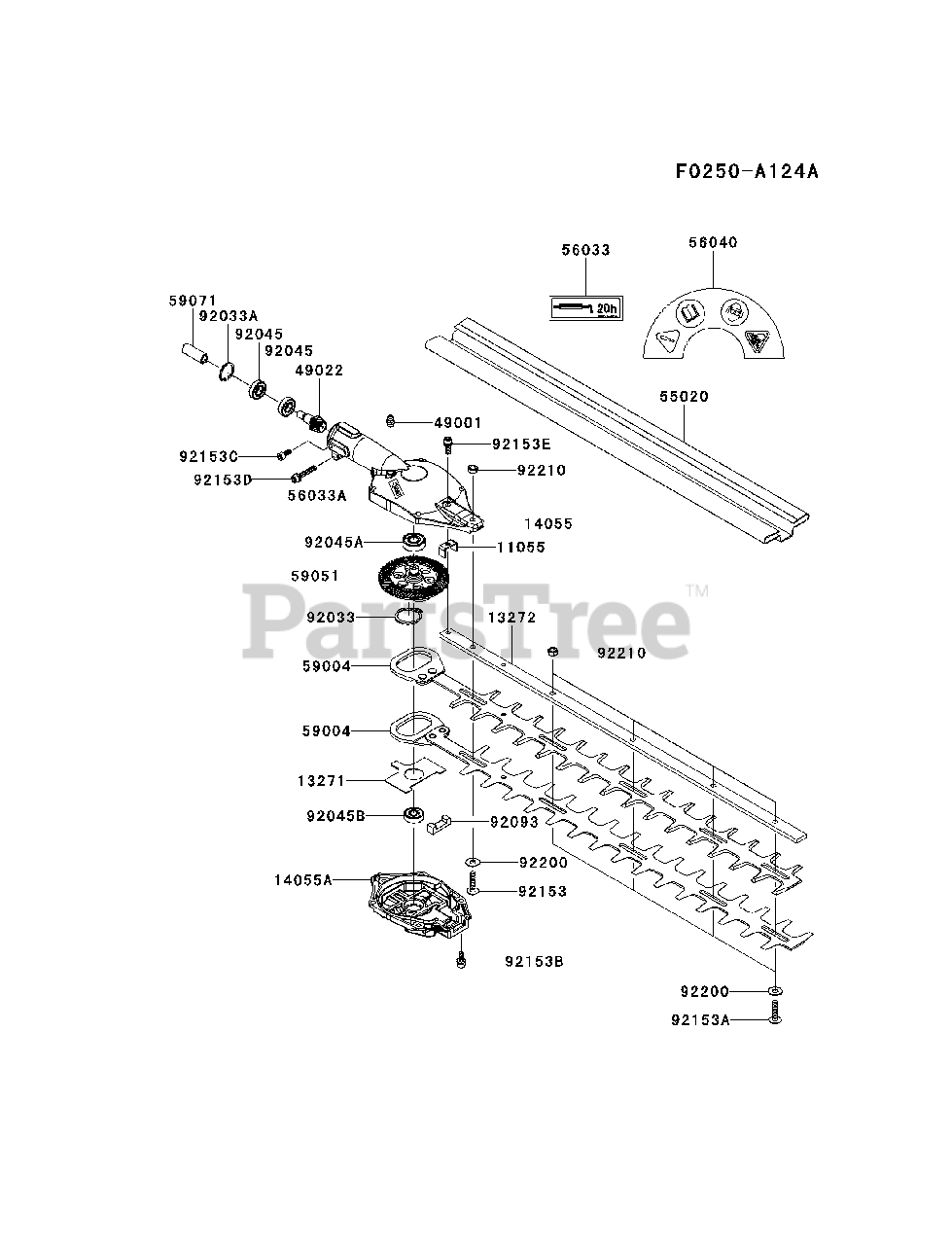

CASE/CUTTER Parts Diagram

  • Title

11055

Kawasaki 11055-V001

BRACKET

$5.99

$

Usually ships in 2-5 days

0

13271

Kawasaki 13271-V008

PLATE

$15.99

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-V001

PLATE,S500

$72.99

$

Usually ships in 2-5 days

0

14055

Kawasaki 14055-V015

CASE-GEAR,UPP

$50.99

$

In Stock, only 1 left!

0

14055A

Kawasaki 14055-V016

CASE-GEAR,LWR

$26.99

$

In Stock, only 1 left!

0

49001

Kawasaki 49001-2058

NIPPLE-GREASE
(Superseded to 99971-0209)

$1.99

$

Usually ships in 2-5 days

0

49022

Kawasaki 49022-V006

GEAR-BEVEL,1.25-13

$107.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-V004

GUARD,CUTTER

$18.99

$

In Stock, only 1 left!

0

56033

Kawasaki 56033-V001

LABEL-MANUAL

$1.99

$

Usually ships in 2-5 days

0

56033A

Kawasaki 56033-V002

LABEL-MANUAL

$0.99

$

Usually ships in 2-5 days

0

56040

Kawasaki 56040-V002

LABEL-WARNING

$5.49

$

Usually ships in 2-5 days

0

59004

Kawasaki 59004-V016

CUTTER

$121.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-V005

GEAR-SPUR

$296.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-V001

JOINT

$22.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-V003

RING-SNAP,DIA=28

$5.99

$

In Stock, Qty 9

0

92033A

Kawasaki 92033-V010

RING-SNAP,DIA=22

$1.99

$

In Stock, only 4 left!

0

92045

Kawasaki 92045-V005

BEARING-BALL,UU 6900

$24.99

$

In Stock, only 2 left!

0

92045A

Kawasaki 92045-2242

BEARING-BALL,6000ZZ

$15.99

$

In Stock, only 2 left!

0

92045B

Kawasaki 92045-2247

BEARING-BALL,608ZL

$10.99

$

In Stock, Qty 5

0

92093

Kawasaki 92093-V002

SEAL

$7.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-V007

BOLT,L=28

$3.49

$

In Stock, Qty 18

0

92153A

Kawasaki 92153-V011

BOLT,CUTTER

$2.99

$

Usually ships in 2-5 days

0

92153B

Kawasaki 92153-V012

BOLT,SOCKET,5X14

$1.49

$

Usually ships in 2-5 days

0

92153C

Kawasaki 92153-V014

BOLT,SOCKET,5X12

$1.49

$

In Stock, Qty 16

0

92153D

Kawasaki 92153-V020

BOLT,SOCKET,5X25

$1.99

$

Usually ships in 2-5 days

0

92153E

Kawasaki 92153-V024

BOLT,5X16

$2.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2103

WASHER

$0.99

$

In Stock, Qty 20+

0

92210

Kawasaki 92210-2066

NUT,M6

$0.99

$

In Stock, Qty 20+

0
