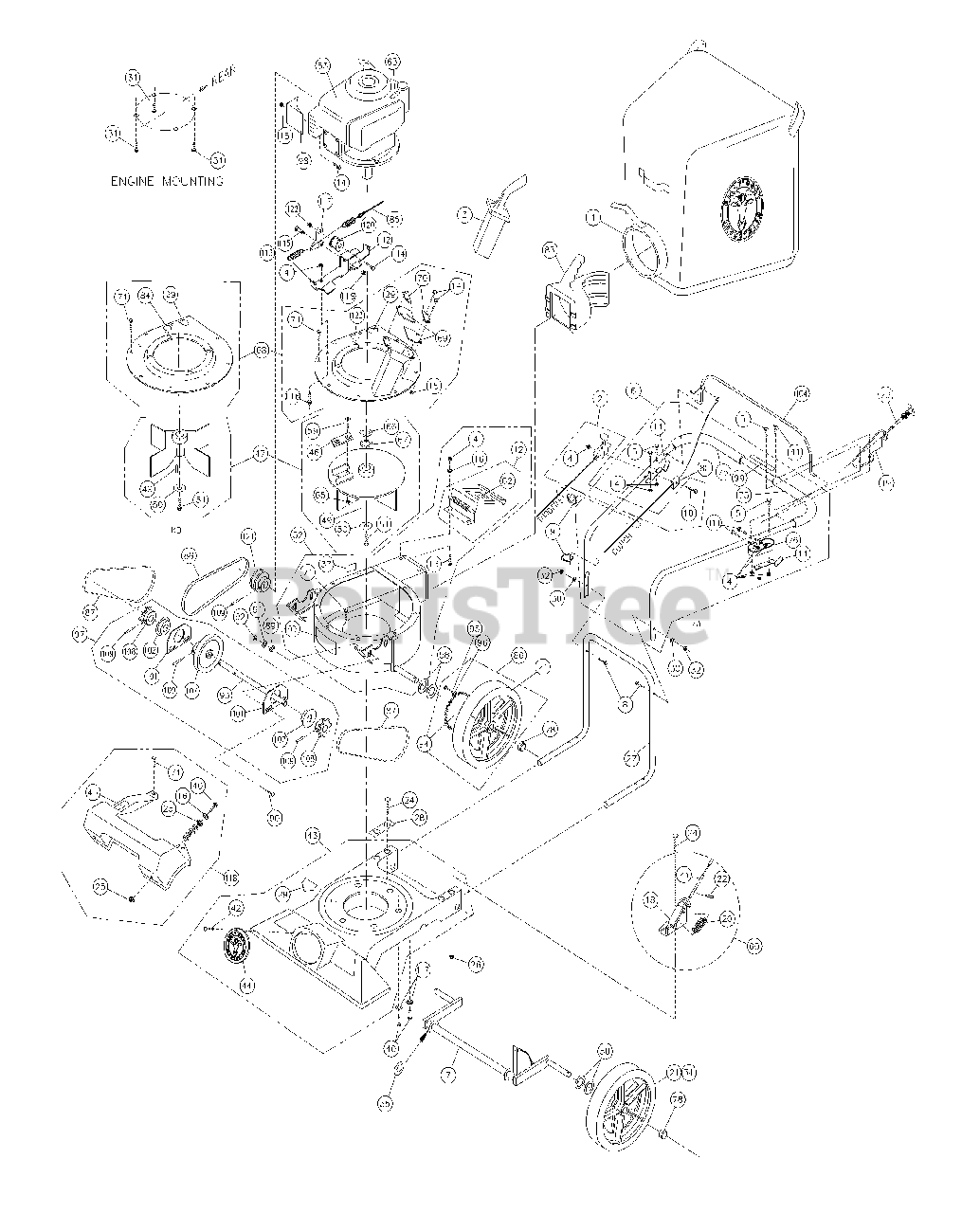

KD 512 SP - Billy Goat Lawn & Litter Vacuum > Parts Diagrams (1) > Parts Assembly

  • Title
890023

1

Debris Bag Turf (service)

Part# 890023

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $171.76

900514-04

2

Throttle Assembly (INCL. 1 ea. 4,10)

Part# 900514-04

OEM Warranty Repair Part for Billy Goat

Not available

890229

3

Part Not Applicable on this model

Part# 890229

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $37.57

8160001

4

Nut Lock (1/4 - 20)

Part# 8160001

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

8041008

5

Screw Cap (1/4 - 20 x 1- 1/2 HEX)

Part# 8041008

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

900059

6

Handle Assy' (incl. items 4(6), 5(4), 11(2), 75(2), 76 & 99)

Part# 900059

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $114.80

890389

7

Axle Rear - Frame W.A.

Part# 890389

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $83.30

8041031

8

Screw Handle 5/16 - 18 x 1-3/4

Part# 8041031

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

900407

9

Clamp Cable Plastic 1"

Part# 900407

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.47

8041011

10

Screw Cap (1/4 - 20 x 2- 1/4)

Part# 8041011

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

900039

11

Bar Support Bag

Part# 900039

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $14.93

890148

12

Door Exhaust Assy' (incl. item 62)

Part# 890148

OEM Warranty Repair Part for Billy Goat

Not available

8024021

13

Bolt - Carriage 1/4 x 3/4

Part# 8024021

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

8059135

14

Screw Cap #10 - 24 x 5/8

Part# 8059135

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

8164005

15

Part Not Applicable on this model

Part# 8164005

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

8171002

16

Washer 1/4 FC ZP

Part# 8171002

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.47

890021

18

Bracket - Height Adjustment

Part# 890021

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $23.92

890005

19

Plate Upper height Adjustment

Part# 890005

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $14.12

900136

20

Spring

Part# 900136

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $1.40

900659

21

Tire - Only (per assy') Treaded

Part# 900659

OEM Warranty Repair Part for Billy Goat

Not available

900471

22

Pin - Hair Cotter

Part# 900471

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.82

890019

23

Cable Height Adjustment

Part# 890019

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $24.27

8024054

24

Bolt - Carriage 5/16 - 18 x 4-1/2

Part# 8024054

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

900453

25

Nut Lock Flange 1/4 - 20

Part# 900453

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.82

8160002

26

Nut Lock 5/16 - 18 HEX

Part# 8160002

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

890346

27

Handle Lower

Part# 890346

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $42.35

900933

28

Plate Handle Support

Part# 900933

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $3.27

400424

29

Label Danger Cut Finger

Part# 400424

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $2.10

8171003

30

Washer Flat Cut 5/16

Part# 8171003

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.47

900564

31

Screw Cap 3/8 - 16 x 2-1/2 Washer Face

Part# 900564

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $3.38

900760

34

Wheel Ass'y Cast (incl. items 21) treaded

Part# 900760

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $47.02

900997

35

Washer 0.75 "C"

Part# 900997

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.82

890254

37

Label Ear Eye Breathing

Part# 890254

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.10

8041007

40

Screw Cap 1/4 - 20 x 1-1/4

Part# 8041007

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

8041009

41

Screw Cap 1/4 - 20 x 1-3/4

Part# 8041009

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

8123086

42

Screw Self Tapping 10 - 24 x 1/2

Part# 8123086

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.70

890391

43

Nozzle Frame (incl. one of items 29,44,42)

Part# 890391

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $246.26

900146

44

Plug

Part# 900146

OEM Warranty Repair Part for Billy Goat

Not available

830502

45

Label Oil Chain

Part# 830502

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.10

890101

46

Part Not Applicable on this model

Part# 890101

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $41.07

900353

47

Impeller Ass'y (incl items 49, 50, 51)

Part# 900353

OEM Warranty Repair Part for Billy Goat

Not available

N/A

48

Label Chipper

Part# N/A

Not available

900162

49

Key 3/16 Sq. x 1.25

Part# 900162

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.82

400502

50

Washer Lock 3/8 Twisted Tooth

Part# 400502

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $2.45

900344

51

Screw Cap 3/8-24 x 1 1/2" (Torque 50 ft.lbs.(68 Nm))

Part# 900344

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $1.52

890419-S

52

Housing Ass'y (incl. items 12, 14, 15, 16, 37, 100)

Part# 890419-S

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $239.17

900784

53

Engine 5.5 H.P. Briggs & Stratton

Part# 900784

OEM Warranty Repair Part for Billy Goat

Currently unavailable

900230

57

Washer 1/2 flat KD Wheel

Part# 900230

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

8172011

58

Washer Flat 1/2 SAE

Part# 8172011

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.47

890103

59

Part Not Applicable on this model

Part# 890103

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.93

890013

60

Height Adjustment Ass'y (incl 18, 20, 22, 23)

Part# 890013

OEM Warranty Repair Part for Billy Goat

Not available

810736

62

Label Danger Flying Material

Part# 810736

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.10

400268

63

Label Hot Engine

Part# 400268

OEM Warranty Repair Part for Billy Goat

Not available

890104

65

Part Not Applicable on this model

Part# 890104

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $1.52

890130

66

Part Not Applicable on this model

Part# 890130

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $1.31

890131

67

Part Not Applicable on this model

Part# 890131

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $3.91

890590

68

Plate Top Ass'y (incl. items 29, 71, 84)

Part# 890590

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $97.88

890119

69

Part Not Applicable on this model

Part# 890119

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $6.77

890127

70

Part Not Applicable on this model

Part# 890127

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.33

890359

71

Screw Cap 1/4-20 x 1/2 HWH

Part# 890359

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.70

890108

73

Knob Wing 5/16 - 18" Thin Ht.

Part# 890108

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $1.52

8161041

74

Nut Lock5/16 - 18 Thin Ht.

Part# 8161041

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

400570

75

Grip Handle

Part# 400570

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $3.85

890167

76

Part Not Applicable on this model

Part# 890167

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $17.03

890530

78

1/2-13 Cap nut np W/patch

Part# 890530

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.57

890176

83

Connector Quick

Part# 890176

OEM Warranty Repair Part for Billy Goat

Not available

900327

84

Label - Warning Guards

Part# 900327

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $2.10

890588

85

Cable Ass'y Clutch

Part# 890588

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $31.50

890242

86

Wheel With Sprocket Ass'y Cast ( 21, 94, 95, 96)

Part# 890242

OEM Warranty Repair Part for Billy Goat

Not available

890239

87

Chain 52 Pitch

Part# 890239

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $8.52

890586

88

Belt 4L220

Part# 890586

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $16.10

900455

89

Nut Whiz 1/4-0 Wash Face

Part# 900455

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.70

8024039

90

Bolt Carriage 5/16 - 18 x 3/4

Part# 8024039

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.78

8177011

91

Washer Spring Lock 5/16

Part# 8177011

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.47

8142002

92

Nut Regular 5/16 - 18

Part# 8142002

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

900320

93

Jackshaft

Part# 900320

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $20.65

890238

94

Sprocket (per Assemby) (size # 65A26) 26 Teeth

Part# 890238

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $8.98

900505

95

Screw Self Tap 1/4-14 x 3/4 (Per Assembly)

Part# 900505

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $1.04

8181007

96

Washer Lock External Tooth (Per Assembly)

Part# 8181007

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.68

890197

97

Jackshaft Ass'y (incl. 93, 101, 102, 107, 108, 109)

Part# 890197

OEM Warranty Repair Part for Billy Goat

Currently unavailable

890190

98

Shield Muffler TKDSP

Part# 890190

OEM Warranty Repair Part for Billy Goat

Currently unavailable

830503

99

Label Clutch

Part# 830503

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.10

900327

100

Label - Warning Guards

Part# 900327

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $2.10

900317

101

Bearing Plate

Part# 900317

OEM Warranty Repair Part for Billy Goat

Currently unavailable

900321

102

Bearing Ball (with Snap Ring)

Part# 900321

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $5.37

900970

104

Rod Bail Clutch

Part# 900970

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $191.60

8122082

106

Screw 8122082

Part# 8122082

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.70

890583

107

Pulley 3"OD x 5/8 Bore

Part# 890583

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $20.77

900302

108

Sprocket - 8 Tooth

Part# 900302

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $12.48

8195166

109

Roll Pin 3/16 Dia. x 1 1/4 Lg.

Part# 8195166

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.47

850164

110

Locknut 5/16 - 18 Flange

Part# 850164

OEM Warranty Repair Part for Billy Goat

Currently unavailable

8041008

111

Part Not Applicable on this model

Part# 8041008

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

890580

112

Bracket Clutch KDSP

Part# 890580

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $17.73

400217

113

Spring Tension

Part# 400217

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $2.10

800888

114

Bolt Idler

Part# 800888

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $4.08

830528

115

Bolt Shoulder 3/8" x 1/2"

Part# 830528

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.57

8041004

116

Screw Cap 1/4 - 20 x 3/4 Lg.

Part# 8041004

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $0.58

890582

117

Arm Idler Wa KDSP

Part# 890582

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $18.43

890600

118

Guard Chain Ass'y TKDSP

Part# 890600

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $89.13

8161041

119

Nut Lock 5/16-18 Thin

Part# 8161041

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

890585

120

Pulley Idler 1.13"OD x 3/8" Bore

Part# 890585

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $22.63

890584

121

Pulley 1.63" OD X 1/2 Bore

Part# 890584

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $25.67

8161042

122

Nut Lock 3/8-16 Thin

Part# 8161042

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 1 business day

Your price: $0.58

890301

123

Label Read Owner's Manual

Part# 890301

OEM Warranty Repair Part for Billy Goat

Usually leaves our warehouse in 8 to 12 business days

Your price: $2.10
