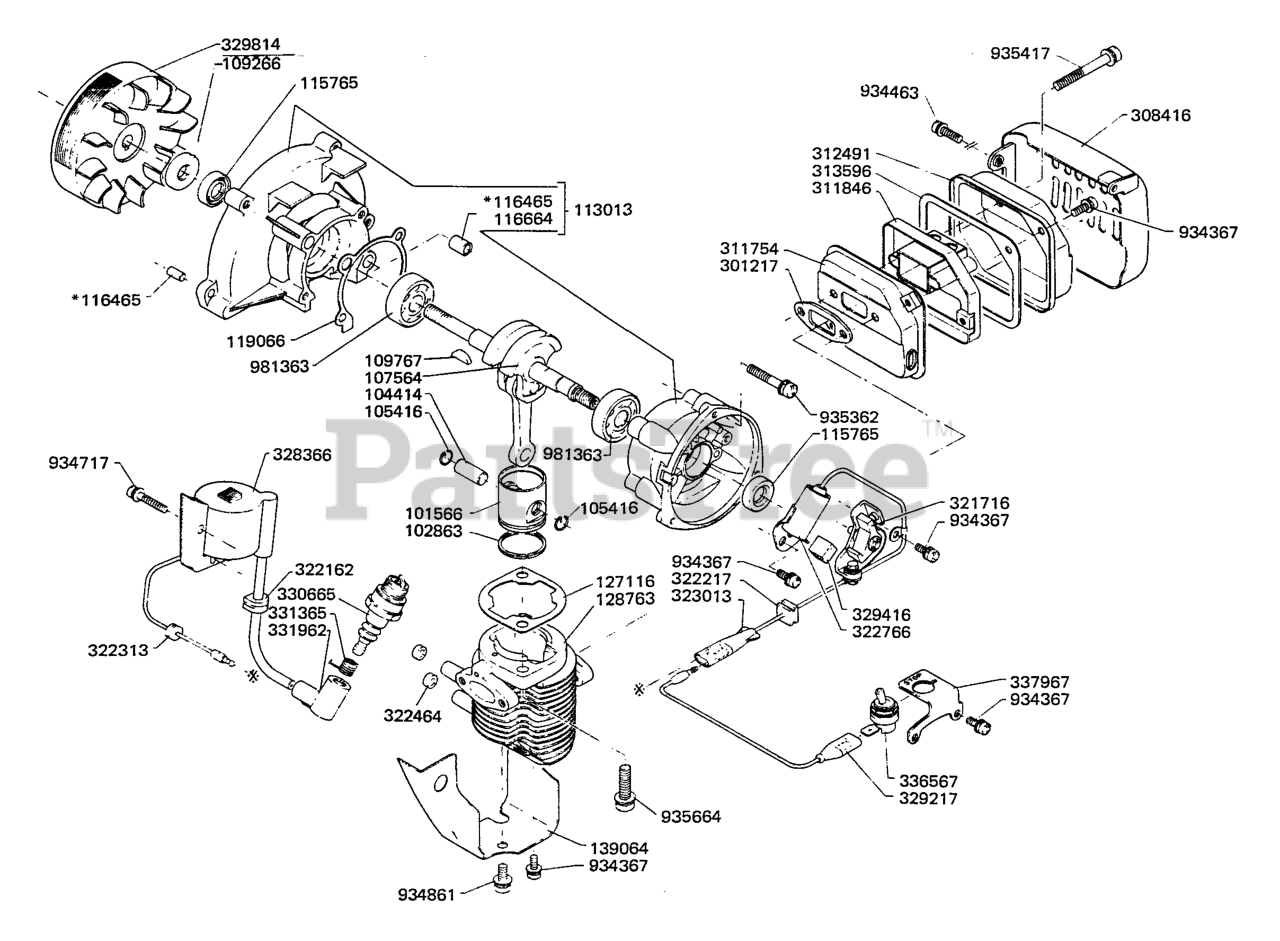

KE-140 DA - Echo Engine Engine, Crankcase, Ignition Parts Diagram

Engine

Engine, Crankcase, Ignition Parts Diagram

  • Title

101566

Echo 10001007330

PISTON
(Superseded to Discontinued)

$

$

Not available

102863

Echo 10001105930

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

104414

Echo 10001304920

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

105416

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

107564

Echo 10010007330

CRANKSHAFT
(Superseded to Discontinued)

$

$

Not available

109266

Echo 10013206530

WASHER

$2.49

$

Usually ships in 2-4 days

0

109767

Echo 10014200330

KEY

$1.49

$

Usually ships in 2-4 days

0

113013

Echo 10020005932

CRANKCASE SET
(Superseded to Discontinued)

$

$

Not available

115765

Echo 10021305930

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

116465

Echo 10021502830

KNOCKPIN, CRANKCASE

$0.99

$

Usually ships in 2-4 days

0

116664

Echo 10021505731

USE 100215-05730
(Superseded to 10021505730)

$

$

Not available

119066

Echo 10024205931

OBS
(Superseded to Discontinued)

$

$

Not available

127116

Echo 10101005930

OBS
(Superseded to Discontinued)

$

$

Not available

128763

Echo 10101107330

CYLINDER
(Superseded to Discontinued)

$

$

Not available

139064

Echo 10151407330

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

301217

Echo 14551005930

GASKET, MUFFLER
(Superseded to Discontinued)

$

$

Not available

308416

Echo 14562107330

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

311754

Echo 14580607330

BODY, MUFFLER (S A)
(Superseded to Discontinued)

$

$

Not available

311846

Echo 14580707330

SILENCER (S A)
(Superseded to Discontinued)

$

$

Not available

312491

Echo 14586107330

LID, MUFFLER (S A)
(Superseded to Discontinued)

$

$

Not available

313596

Echo 14586607330

GASKET, MUFFLER LID (S A)
(Superseded to Discontinued)

$

$

Not available

321716

Echo 15210105930

CONTACT POINTS

$23.99

$

Usually ships in 2-4 days

0

322162

Echo 15211207330

USE 152112-07331
(Superseded to 15211207331)

$

$

Not available

322217

Echo 15211405530

GROMMET
(Superseded to Discontinued)

$

$

Not available

322313

Echo 15211505930

GROMMET
(Superseded to Discontinued)

$

$

Not available

322464

Echo 15211705930

SPACER
(Superseded to Discontinued)

$

$

Not available

322766

Echo 15212705530

CONDENSER
(Superseded to Discontinued)

$

$

Not available

323013

Echo 15213305530

CORD, PRIMARY
(Superseded to Discontinued)

$

$

Not available

328366

Echo 15612606530

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

329217

Echo 15613106530

LEAD, GROUND
(Superseded to Discontinued)

$

$

Not available

329416

Echo 15613404630

PAD, OILER

$2.49

$

Usually ships in 2-4 days

0

329814

Echo 15620007330

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

330665

Echo 15901000330

SPARK PLUG BM6A

$3.49

$

Usually ships in 2-4 days

0

331365

Echo 15901100510

COIL,SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 20+

0

331962

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

336567

Echo 16340007330

SWITCH ASSY.
(Superseded to Discontinued)

$

$

Not available

337967

Echo 16381007330

BRACKET, SWITCH
(Superseded to Discontinued)

$

$

Not available

934367

Echo 90024204010

SCREW 4 X 10

$0.99

$

In Stock, Qty 20+

0

934463

Echo 90024204014

SCREW 4 X 14

$0.99

$

In Stock, Qty 15

0

934717

Echo 90024204022

SCREW 4 X 22

$0.99

$

In Stock, Qty 8

0

934861

Echo 90024205010

SCREW 5 X 10

$0.99

$

In Stock, Qty 20+

0

935362

Echo 90024205030

SCREW 5 X 30

$0.99

$

In Stock, only 3 left!

0

935417

Echo 90024205040

SCREW 5 X 40

$0.99

$

In Stock, Qty 7

0

935664

Echo 90024206022

SCREW 6 X 22
(Superseded to Discontinued)

$

$

Not available

981363

Echo 90081036200

BEARING, BALL 6200
(Superseded to Discontinued)

$

$

Not available
