KEH-202 D - Echo Engine Engine, Crankcase Parts Diagram

Engine

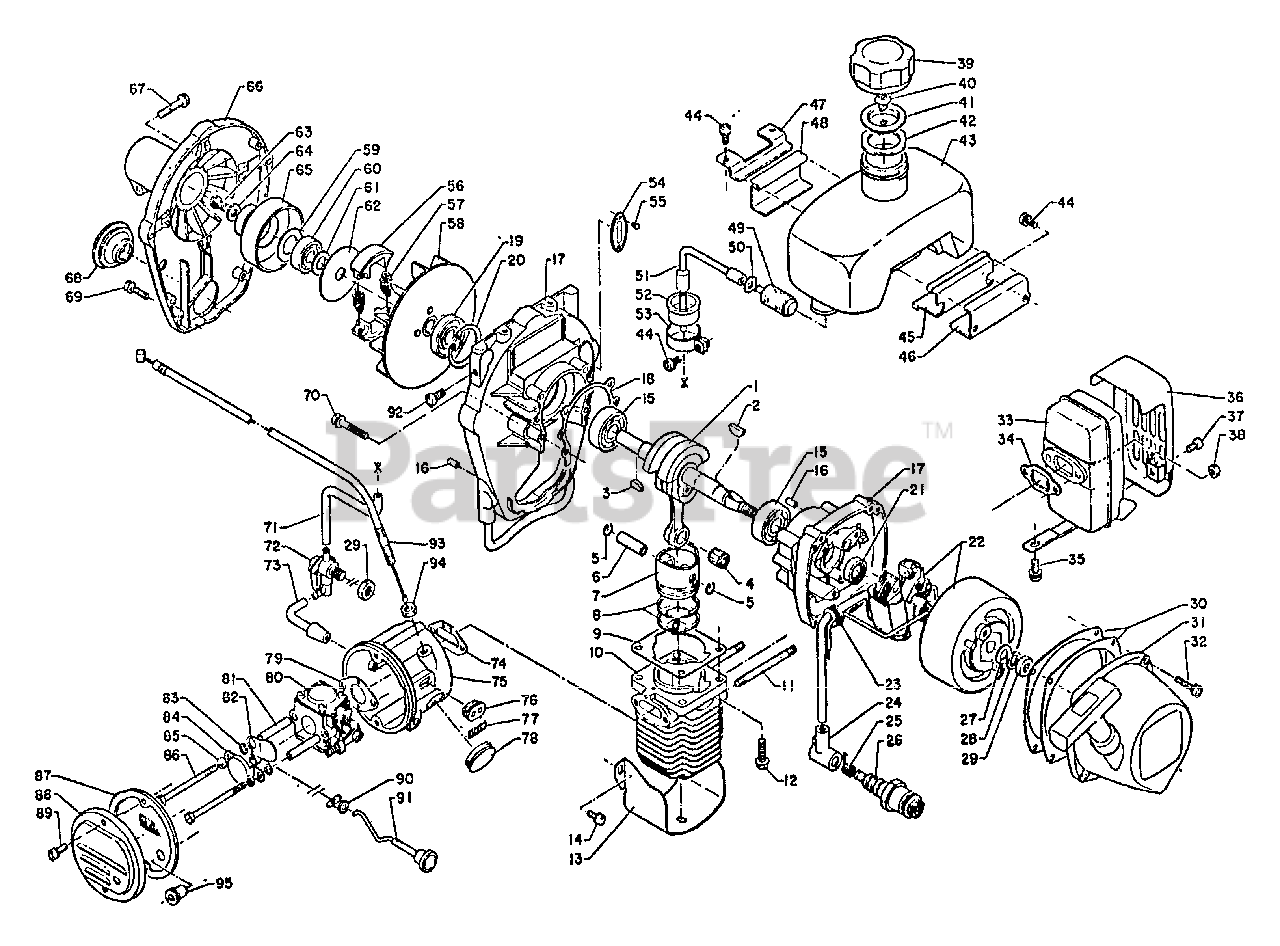

Engine, Crankcase Parts Diagram

  • Title

1

Echo 10010005330

CRANKSHAFT ASSY
(Superseded to 10010005331)

$

$

Not available

2

Echo 10014200310

KEY

$1.99

$

Usually ships in 2-4 days

0

3

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

4

Echo 17501203930

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

5

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

6

Echo 10001304630

PIN, PISTON
(Superseded to 10001310210)

$7.99

$

Usually ships in 2-4 days

0

7

Echo 10001005330

PISTON
(Superseded to 10000005330)

$

$

Not available

8

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

9

Echo 10101004630

GASKET, CYLINDER
(Superseded to 10101004631)

$2.49

$

Usually ships in 2-4 days

0

10

Echo 10101105330

CYLINDER
(Superseded to Discontinued)

$

$

Not available

11

Echo 10101405330

STUD
(Superseded to 10101422330)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 90022005016

SCREW - 5X16

$0.99

$

In Stock, Qty 6

0

12

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 10151405330

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

14

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

14

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 9

0

15

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

16

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

17

Echo 10020005330

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

18

Echo 10024204630

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

19

Echo 10021203930

SEAL, OIL

$6.49

$

In Stock, Qty 14

0

20

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 1 left!

0

21

Echo 10021204630

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 8

0

22

------------------

UNKNOWN

$

$

Not available

23

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 8

0

24

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

25

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

26

Echo 15901000330

SPARK PLUG -- BM-6A

$

$

Not available

27

Echo 10014304630

WASHER

$0.99

$

Usually ships in 2-4 days

0

28

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

29

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

30

Echo 10061504630

GASKET, STARTER
(Superseded to 10061504631)

$1.49

$

Usually ships in 2-4 days

0

31

Echo 17720004320

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

32

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 9

0

32

Echo 90022004020

SCREW - 4X20

$0.99

$

Usually ships in 2-4 days

0

33

Echo 14560504320

MUFFLER
(Superseded to Discontinued)

$

$

Not available

34

Echo 14551004630

GASKET, EXHAUST

$2.99

$

Usually ships in 2-4 days

0

35

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

35

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 7

0

35

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

36

Echo 14562104320

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

37

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

38

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

39

Echo 13101704320

CAP
(Superseded to 13101704420)

$

$

Not available

40

Echo 13131400330

VENT

$13.99

$

In Stock, only 2 left!

0

41

Echo 13101503331

HOLDER, VENT

$4.49

$

Usually ships in 2-4 days

0

42

Echo 13101604630

GASKET, CAP
(Superseded to 13101604631)

$3.99

$

In Stock, only 4 left!

0

43

Echo 13101004630

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

44

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

44

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

45

Echo 13192405330

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

46

Echo 13191804630

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

47

Echo 13191005330

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

48

Echo 13192005330

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

49

Echo 13120505230

FILTER, FUEL
(Superseded to 13120002830)

$9.99

$

In Stock, Qty 20+

0

50

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

51

Echo 13201004630

PIPE - FUEL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

52

Echo 13200504630

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

53

Echo 13200604630

CLAMP
(Superseded to Discontinued)

$

$

Not available

54

Echo 89011004320

PLATE, MODEL
(Superseded to Discontinued)

$

$

Not available

55

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available

56

Echo 17500905130

SHOE, CLUTCH
(Superseded to 17500905131)

$25.99

$

Usually ships in 2-4 days

0

57

Echo 17501805130

SPRING, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

58

Echo 10150004630

FAN
(Superseded to Discontinued)

$

$

Not available

59

Echo 17504404630

WASHER, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

60

Echo 90080206000

BEARING, BALL - 6000

$16.99

$

In Stock, Qty 15

0

61

Echo 17501504630

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

62

Echo 17501904630

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

63

Echo 90010506010

SCREW - 6X10

$1.49

$

In Stock, only 3 left!

0

64

Echo 17501404630

WASHER - 6

$2.49

$

In Stock, Qty 20+

0

65

Echo 17501004632

DRUM, CLUTCH
(Superseded to 17501004633)

$36.99

$

Usually ships in 2-4 days

0

66

Echo 10151104320

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

67

Echo 90010005025

BOLT - 5X25

$3.49

$

Usually ships in 2-4 days

0

68

Echo 15901504630

SEAL, DUST

$1.99

$

Usually ships in 2-4 days

0

69

Echo 90022004018

SCREW - 4X18

$0.99

$

Usually ships in 2-4 days

0

69

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 9

0

70

Echo 90022005028

SCREW - 5X28

$0.99

$

In Stock, only 1 left!

0

70

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 7

0

70

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

71

Echo 13201604320

PIPE, FUEL - OUTER
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

72

Echo 13220004630

FUEL VALVE ASSY
(Superseded to Discontinued)

$

$

Not available

73

Echo 13201204320

PIPE - FUEL
(Superseded to 13201204321)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

74

Echo 13001005330

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

75

Echo 13030604320

CASE, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

76

Echo 12901005230

GROMMET

$1.99

$

Usually ships in 2-4 days

0

77

Echo 89001101320

LABEL - CAUTION

$

$

Currently unavailable

78

Echo 13033804320

PLUG
(Superseded to Discontinued)

$

$

Not available

79

Echo 13001604630

GASKET, INTAKE
(Superseded to 13001604631)

$0.99

$

In Stock, Qty 8

0

80

Echo 12300004320

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

81

Echo 13001903930

SPACER
(Superseded to Discontinued)

$

$

Not available

82

Echo 17851504630

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

83

Echo 17851603930

WASHER
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

84

Echo 12901104630

PLATE, PREVENT

$3.49

$

Usually ships in 2-4 days

0

85

Echo 13002903930

SPACER

$0.99

$

Usually ships in 2-4 days

0

86

Echo 13002103930

BOLT

$1.99

$

In Stock, only 4 left!

0

87

Echo 13031005230

FILTER, AIR
(Superseded to 13031004320)

$

$

Not available

88

Echo 13031305230

COVER, AIR FILTER
(Superseded to 13031304320)

$

$

Not available

89

Echo 90022004012

SCREW - 4X12

$0.99

$

Usually ships in 2-4 days

0

90

Echo 17881004320

GROMMET
(Superseded to Discontinued)

$

$

Not available

91

Echo 17851005230

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

92

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

93

Echo 17800104320

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

94

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

95

Echo 12901504320

GROMMET
(Superseded to Discontinued)

$

$

Not available
