KGT 26 AC (KGT26AC-A1) - Kawasaki String Trimmer PIPE/HANDLE/GUARD Parts Diagram

String Trimmer

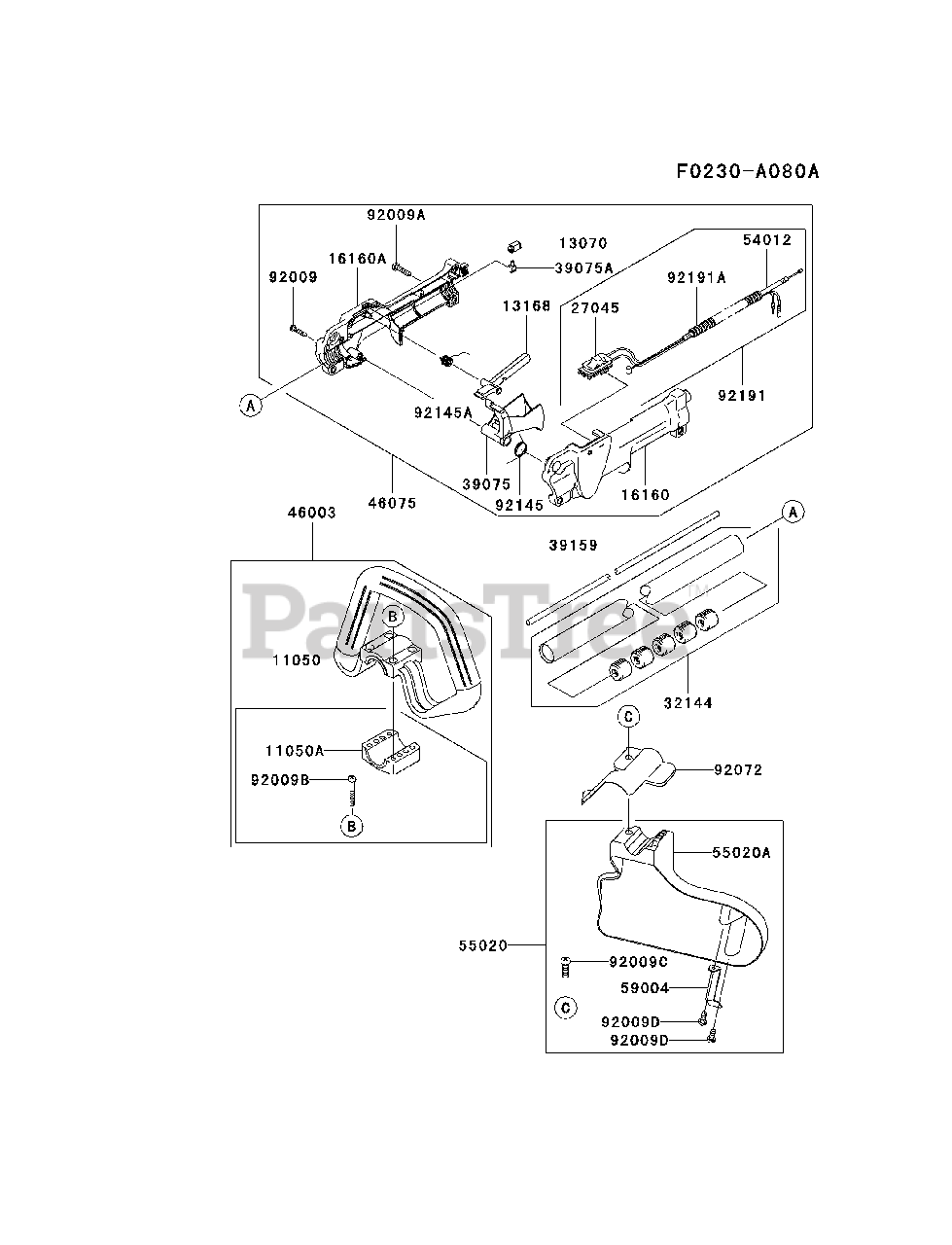

PIPE/HANDLE/GUARD Parts Diagram

  • Title
11050

Kawasaki 11050-T007

BRACKET,SET

$

$

Not available

11050A

Kawasaki 11050-T008

BRACKET,HANDLE

$6.49

$

Usually ships in 2-5 days

0

13070

$

$

Not available

13168

$6.49

$

Usually ships in 2-5 days

0

16160

Kawasaki 16160-T001

BODY,GRIP,LH

$38.99

$

Usually ships in 2-5 days

0

16160A

Kawasaki 16160-T002

BODY,GRIP,RH

$20.99

$

Usually ships in 2-5 days

0

27045

Kawasaki 27045-T003

SWITCH-ASSY,STOP

$19.99

$

Usually ships in 2-5 days

0

32144

$107.99

$

Usually ships in 2-5 days

0

39075

Kawasaki 39075-T001

LEVER-THROTTLE

$9.99

$

Usually ships in 2-5 days

0

39075A

Kawasaki 39075-T002

LEVER-THROTTLE,HALF GAS

$

$

Not available

39159

Kawasaki 39159-T001

SHAFT-DRIVE

$76.99

$

In Stock, only 1 left!

0

46003

Kawasaki 46003-T005

HANDLE,SET

$135.99

$

Usually ships in 2-5 days

0

46075

$

$

Not available

54012

Kawasaki 54012-T003

CABLE-THROTTLE

$7.49

$

In Stock, only 1 left!

0

55020

$73.99

$

Usually ships in 2-5 days

0

55020A

$61.99

$

Usually ships in 2-5 days

0

59004

Kawasaki 59004-T005

CUTTER,STRING

$13.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-T009

SCREW,4X20

$0.99

$

In Stock, Qty 20+

0

92009A

Kawasaki 92009-T010

SCREW,5X20

$0.99

$

In Stock, Qty 7

0

92009B

Kawasaki 92009-T011

SCREW,5X35

$1.99

$

In Stock, Qty 7

0

92009C

Kawasaki 92009-T015

SCREW,6X20

$2.49

$

Usually ships in 2-5 days

0

92009D

Kawasaki 92009-T017

SCREW,5X12

$2.49

$

In Stock, Qty 12

0

92072

Kawasaki 92072-T005

BAND,GUARD

$8.99

$

Usually ships in 2-5 days

0

92145

$2.49

$

In Stock, only 2 left!

0

92145A

$3.99

$

In Stock, only 1 left!

0

92191

$35.99

$

Usually ships in 2-5 days

0

92191A

$1.49

$

Usually ships in 2-5 days

0
