KGT 35 A (KGT35A-A1) - Kawasaki String Trimmer CASE/CUTTER Parts Diagram

String Trimmer

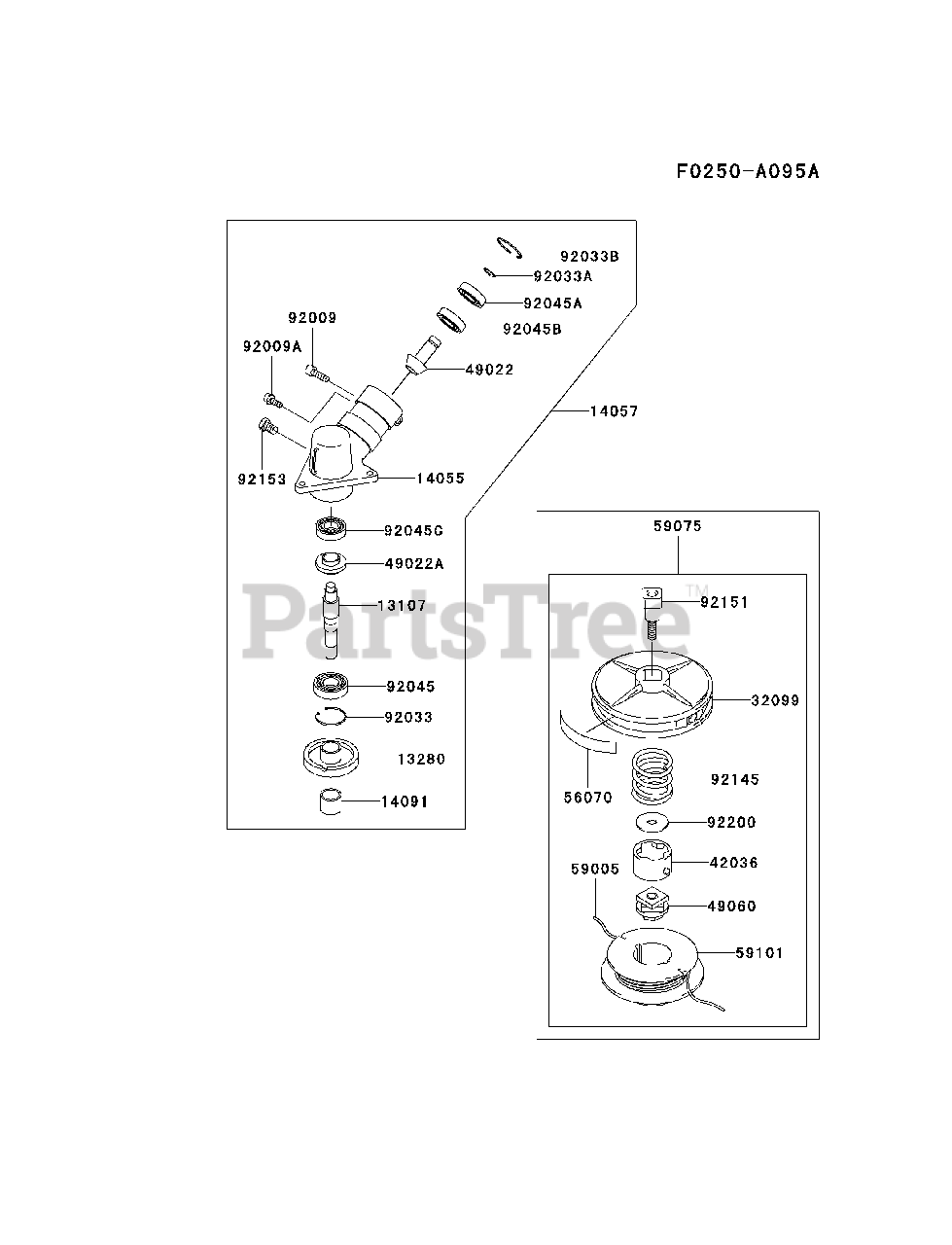

CASE/CUTTER Parts Diagram

  • Title

13107

Kawasaki 13107-T006

SHAFT,SPLINE

$49.99

$

Usually ships in 2-5 days

0

13280

Kawasaki 13280-T007

HOLDER,
(Superseded to 99971-0055)

Note: A

$27.99

$

Usually ships in 2-5 days

0

14055

Kawasaki 14055-T005

CASE-GEAR

$

$

Not available

14057

Kawasaki 14057-T011

CASE-COMP-GEAR

$310.99

$

Usually ships in 2-5 days

0

14091

Kawasaki 14091-T007

COVER
(Superseded to 99971-0056)

$1.99

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2340

CASE,CUTTER

$39.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-2101

SLEEVE,CUTTER

$14.99

$

Usually ships in 2-5 days

0

49022

Kawasaki 49022-T012

GEAR-BEVEL

$57.99

$

Usually ships in 2-5 days

0

49022A

Kawasaki 49022-T013

GEAR-BEVEL

$51.99

$

Usually ships in 2-5 days

0

49060

Kawasaki 49060-2058

CAM,CUTTER

$14.99

$

Usually ships in 2-5 days

0

56070

Kawasaki 56070-2035

LABEL-WARNING

$4.49

$

In Stock, only 1 left!

0

59005

Kawasaki 59005-2008

STRING,2.4X6900

$7.49

$

Usually ships in 2-5 days

0

59075

Kawasaki 59075-2017

CUTTER-CORD,M8,L

$36.99

$

In Stock, only 1 left!

0

59101

Kawasaki 59101-2108

REEL,CUTTER

$13.99

$

In Stock, Qty 10

0

92009

Kawasaki 92009-T012

SCREW,SOCKET

$

$

Not available

92009A

Kawasaki 92009-T013

SCREW,SOCKET

$1.49

$

In Stock, only 2 left!

0

92033

Kawasaki 92033-T008

RING-SNAP,DIA=32

$1.49

$

Usually ships in 2-5 days

0

92033A

Kawasaki 92033-T010

RING-SNAP,DIA=10

$4.99

$

Usually ships in 2-5 days

0

92033B

Kawasaki 92033-T011

RING-SNAP,DIA=26

$1.49

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-T010

BEARING-BALL,6201DD C3

$15.99

$

Usually ships in 2-5 days

0

92045A

Kawasaki 92045-T012

BEARING-BALL,6000 ZZ

$12.99

$

Usually ships in 2-5 days

0

92045B

Kawasaki 92045-2006

BEARING-BALL,6000C3

$10.99

$

Usually ships in 2-5 days

0

92045C

Kawasaki 92045-2159

BEARING,BALL
(Superseded to 92045-2240)

Note: #629

$10.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-2064

SPRING

$4.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2098

BOLT,CUTTER,M8,L

$20.99

$

In Stock, only 1 left!

0

92153

Kawasaki 92153-T001

BOLT,8X10

$0.99

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-2095

WASHER

$0.99

$

In Stock, Qty 7

0
