KGZ (RSKXD161994VO) - Spartan 61" Zero-Turn Mower (SN: 400000000 - 999999999) Body Styling Assembly Parts Diagram

61" Zero-Turn Mower

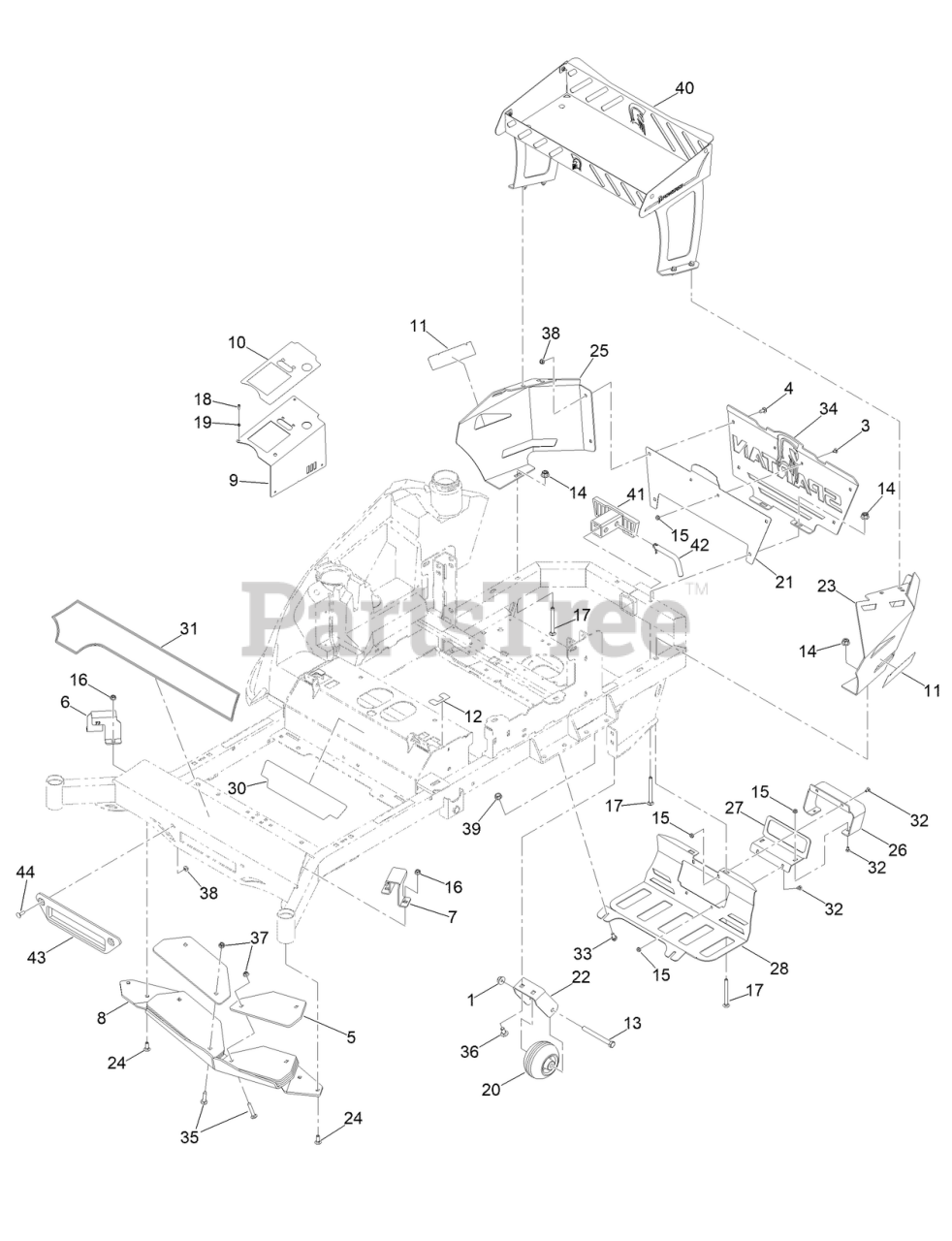

Body Styling Assembly Parts Diagram

  • Title

1

Toro 413-0002-00

NUT-LOCK

$

$

Currently unavailable

3

Toro 116-5879

SCREW-CARR

$17.99

$

Usually ships in 3-6 days

0

4

Toro 144-2265

BOLT-CARR

$

$

Currently unavailable

5

Toro 148-0071-05

2023 COUNTER WEIGHT PLATE

$

$

Currently unavailable

6

Toro 148-0072-05

2023 COUNTER WEIGHT TOP MOUNT BRK 72

$

$

Currently unavailable

7

Toro 148-0073-05

2023 COUNTER WEIGHT TOP MOUNT BRK 73

$

$

Currently unavailable

8

Toro 148-0074-05

2023 COUNTER WEIGHT RT/SRT BOTTOM MOUNT

$

$

Currently unavailable

9

Toro 148-1241-05

BRACKET-CONSOLE [BLK-TXT]

$

$

Currently unavailable

10

Toro 148-0414

DECAL-CONSOLE

$

$

Currently unavailable

11

Toro 148-0854

DECAL-COWLING

$

$

Currently unavailable

12

Toro 148-1056

DECAL-MOTION CONTROL

$

$

Currently unavailable

13

Toro 418-0016-00

SCREW-HH

$

$

Currently unavailable

14

Toro 413-0013-00

3/8-16 NYLON INSERT FLANGE L/NUT YZ

$

$

Currently unavailable

15

Toro 413-0023-00

1/4-20 HEX FLANGE NUT W/SERR ZINC

$

$

Currently unavailable

16

Toro 413-0029-00

NUT-HEX

$

$

Currently unavailable

17

Toro 418-0018-00

3/8-16 X 4 CARRIAGE BOLT ZINC

$

$

Currently unavailable

18

Toro 418-0055-00

10-24 X 1/2 SOCKET C/S 18-8 SS

$

$

Currently unavailable

19

Toro 419-0011-00

#10 SPLIT LOCKWASHER 18-8 SS

$

$

Currently unavailable

20

Toro 422-0061-00

MWR ANTI-SCALP WHL W/O GREASE FITTING

$

$

Currently unavailable

21

Toro 426-0803-00-P12

KGZ ENGN COWLING CTR BACKER PLATE PAINT

$

$

Currently unavailable

22

Toro 439-0138-00-05

MWR STABILIZER MTG BRKT BLACK

$

$

Currently unavailable

23

Toro 439-0805-00-05

KGZ ENGN COWLING LT PAINTED

$

$

Currently unavailable

24

Toro 418-0045-00

3/8-16 X 1 CARRIAGE BOLT YZ GR.8

$

$

Currently unavailable

25

Toro 439-0807-00-05

KGZ ENGN COWLING RT PAINTED

$

$

Currently unavailable

26

Toro 148-1174-P12

EXHAUST TIP GUARD [ORANGE]

$

$

Currently unavailable

27

Toro 439-0816-00-05

DUAL EXHAUST TIP BOTTOM BRKT BLACK

$

$

Currently unavailable

28

Toro 148-1173-05

MUFFLER GUARD [BLK-TXT]

$

$

Currently unavailable

30

Toro 148-0850

DECAL-KGZ-XD GT TRAC MODEL

$

$

Currently unavailable

31

Toro 148-0851

DECAL-FLOORBOARD

$

$

Currently unavailable

32

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, Qty 7

0

33

Toro 418-0049-00

BOLT-HWH

$

$

Currently unavailable

34

Toro 439-0806-00-05

KGZ ENGN COWLING CNTR PAINTED

$

$

Currently unavailable

35

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

36

Toro 3232-1

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

37

Toro 413-0020-00

3/8-16 HEX FLANGE NUT W/SERR ZINC YELLOW

$

$

Currently unavailable

38

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable

39

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

40

Toro 148-1258

SPOILER BASKET, BLACK

$

$

Currently unavailable

41

Toro 429-0004-00

MWR RR RECEIVER NYLON BUMPER

$

$

Currently unavailable

42

Toro 793-3212-00

HITCH PIN SHORT FOR INTMDR RR HITCH

$

$

Currently unavailable

43

Toro 429-0003-00

MWR FT NYLON BUMPER

$

$

Currently unavailable

44

Toro 418-0010-00

BOLT-CARR

$

$

Currently unavailable
