KGZ (RSKXD161994VO) - Spartan 61" Zero-Turn Mower (SN: 400000000 - 999999999) Motion Control and Parking Brake Assembly Parts Diagram

61" Zero-Turn Mower

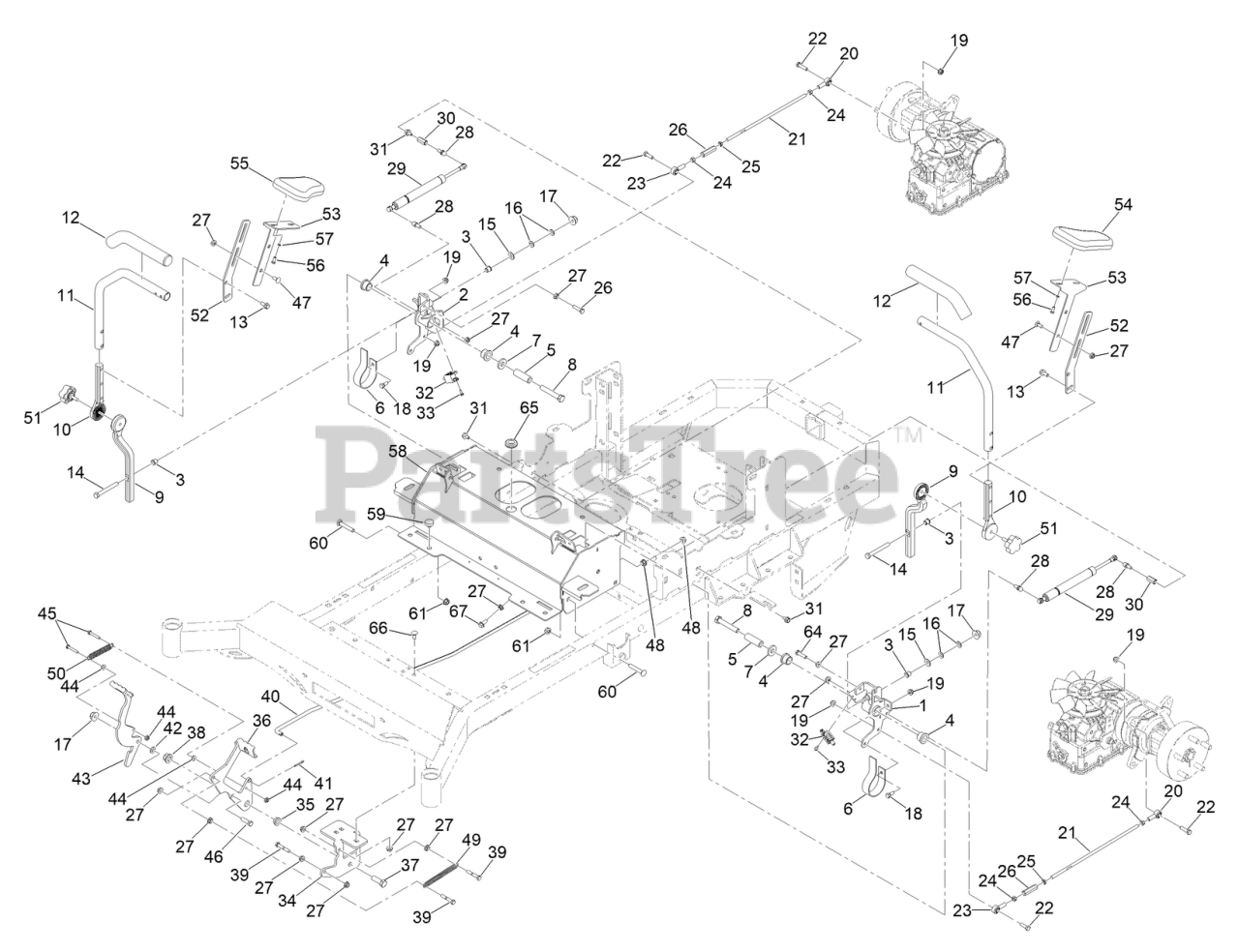

Motion Control and Parking Brake Assembly Parts Diagram

  • Title

1

Toro 148-0888-05

LH PIVOT ASM

$

$

Currently unavailable

2

Toro 148-0889-05

RH PIVOT ASM

$

$

Currently unavailable

3

Toro 148-0886

BUSHING-FLANGE

$

$

Currently unavailable

4

Toro 148-0897

BUSHING-FLANGE

$

$

Currently unavailable

5

Toro 148-0885

SLEEVE-PIVOT

$

$

Currently unavailable

6

Toro 109-5575

SPRING-LEAF

$17.99

$

In Stock, only 2 left!

0

7

Toro 419-0003-00

1/2 FENDER WASHER 1-1/4IN OD ZINC

$

$

Currently unavailable

8

Toro 418-0050-00

1/2-13 X 3 HEX C/S GR 5 ZINC W/LOCTITE

$

$

Currently unavailable

9

Toro 431-0002-00

ADJUSTABLE LWR DRIVE ARM

$

$

Currently unavailable

10

Toro 431-0003-00

ADJUSTABLE UPP DRIVE ARM

$

$

Currently unavailable

11

Toro 403-0020-10-05

MOWER DRIVE HANDLE TUBE ABC

$

$

Currently unavailable

12

Toro 484-0001-00

CONTROL ARM HANDLE GRIP

$

$

Currently unavailable

13

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

14

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 8

0

15

Toro 419-0007-00

WASHER-FLAT

$

$

Currently unavailable

16

Toro 148-1012

WASHER-BELLEVILLE

$

$

Currently unavailable

17

Toro 413-0013-00

3/8-16 NYLON INSERT FLANGE L/NUT YZ

$

$

Currently unavailable

18

Toro 418-0054-00

SCREW-HH

$

$

Currently unavailable

19

Toro 413-0027-00

NUT-HF, NI

$

$

Currently unavailable

20

Toro 410-0071-00

5/16-24 SPHER ROD END ZINC RH THD FEM

$

$

Currently unavailable

21

Toro 435-0002-00

TRANS DRIVE ARM LINKAGE STANDARD TRANS

$

$

Currently unavailable

22

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

23

Toro 148-1099

ROD END-BALL JOINT

$

$

Currently unavailable

24

Toro 09207

NUT

$

$

Currently unavailable

25

Toro 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

26

Toro 148-1100

NUT-SLEEVE

$

$

Currently unavailable

27

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable

28

Toro 487-0005-00

5/16-18X1.286 DAMPER BALL STUD (.562 TL)

$

$

Currently unavailable

29

Toro 487-0001-00

CONTROL ARM DAMPER

$

$

Currently unavailable

30

Toro 613-0065-00

STANDOFF-HEX

$

$

Currently unavailable

31

Toro 3234-28

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

32

Toro 486-0030-00

NO PLUNGER LIMIT SWITCH

$

$

Currently unavailable

33

Toro 418-0032-00

8-32 X 1/2 IND. HWH SLOT TYPE F TCS ZINC

$

$

Currently unavailable

34

Toro 439-0009-00-05

MWR FRAME BRAKE MTG BRKT BLACK

$

$

Currently unavailable

35

Toro 410-0009-00

1/2IN ID X 3/4IN OD X 3/8IN FLANGE BUSH

$

$

Currently unavailable

36

Toro 490-0016-00-05

MWR BRAKE LOCK LEVER ASSY BLACK

$

$

Currently unavailable

37

Toro 139-2631

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

38

Toro 413-0002-00

NUT-LOCK

$

$

Currently unavailable

39

Toro 418-0027-00

BOLT-HH

$

$

Currently unavailable

40

Toro 435-0004-00

MWR BRAKE LINKAGE

$

$

Currently unavailable

41

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 6

0

42

Toro 413-0052-00

3/8 ID X 3/4 OD X .125 THK BRONZE WASHER

$

$

Currently unavailable

43

Toro 490-0017-00-05

MWR BRAKE UNLOCK LEVER ASSY BLACK

$

$

Currently unavailable

44

Toro 413-0012-00

1/4-20 HEX FLANGE NUT

$

$

Currently unavailable

45

Toro 418-0029-00

1/4-20 X 1-1/4 HEX C/S GR 2 ZINC

$

$

Currently unavailable

46

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

47

Toro 418-0008-00

BOLT-CARR

$

$

Currently unavailable

48

Toro 413-0020-00

3/8-16 HEX FLANGE NUT W/SERR ZINC YELLOW

$

$

Currently unavailable

49

Toro 434-0015-00

2020 MWR BRAKE PEDAL TENSION SPRING

$

$

Currently unavailable

50

Toro 434-0003-00

MWR BRAKE PEDAL RELEASE SPRING

$

$

Currently unavailable

51

Toro 148-0228

5/16-18 X 1 SL 5-LOBE MALE ST KNOB 1.90

$

$

Currently unavailable

52

Toro 439-0010-00-05

MWR ARM PAD TUBE MTG BRKT BLACK

$

$

Currently unavailable

53

Toro 439-0011-00-05

MWR ARM PAD MTG BRKT BLACK

$

$

Currently unavailable

54

Toro 471-0028-00

2020 MWR DRIVE ARM SUPPORT PAD LT

$

$

Currently unavailable

55

Toro 471-0029-00

2020 MWR DRIVE ARM SUPPORT PAD RT

$

$

Currently unavailable

56

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 2 left!

0

57

Toro 419-0012-00

1/4 EXT TOOTH LOCKWASHER ZINC

$

$

Currently unavailable

58

Toro 148-0911-05

GT-TRAC ASM

$

$

Currently unavailable

59

Toro 429-0002-00

PUSH-IN RUBBER BUMPER MWR FLOOR

$

$

Currently unavailable

60

Toro 618-2023-00

SCREW-CARR

$

$

Currently unavailable

61

Toro 413-0029-00

NUT-HEX

$

$

Currently unavailable

64

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

65

Toro 240-6

GROMMET-RUBBER

$

$

Currently unavailable

66

Toro 418-0010-00

BOLT-CARR

$

$

Currently unavailable

67

Toro 418-0048-00

5/16-18 X 3/4 HEX FLANGE BOLT GR 8 YZ

$

$

Currently unavailable
