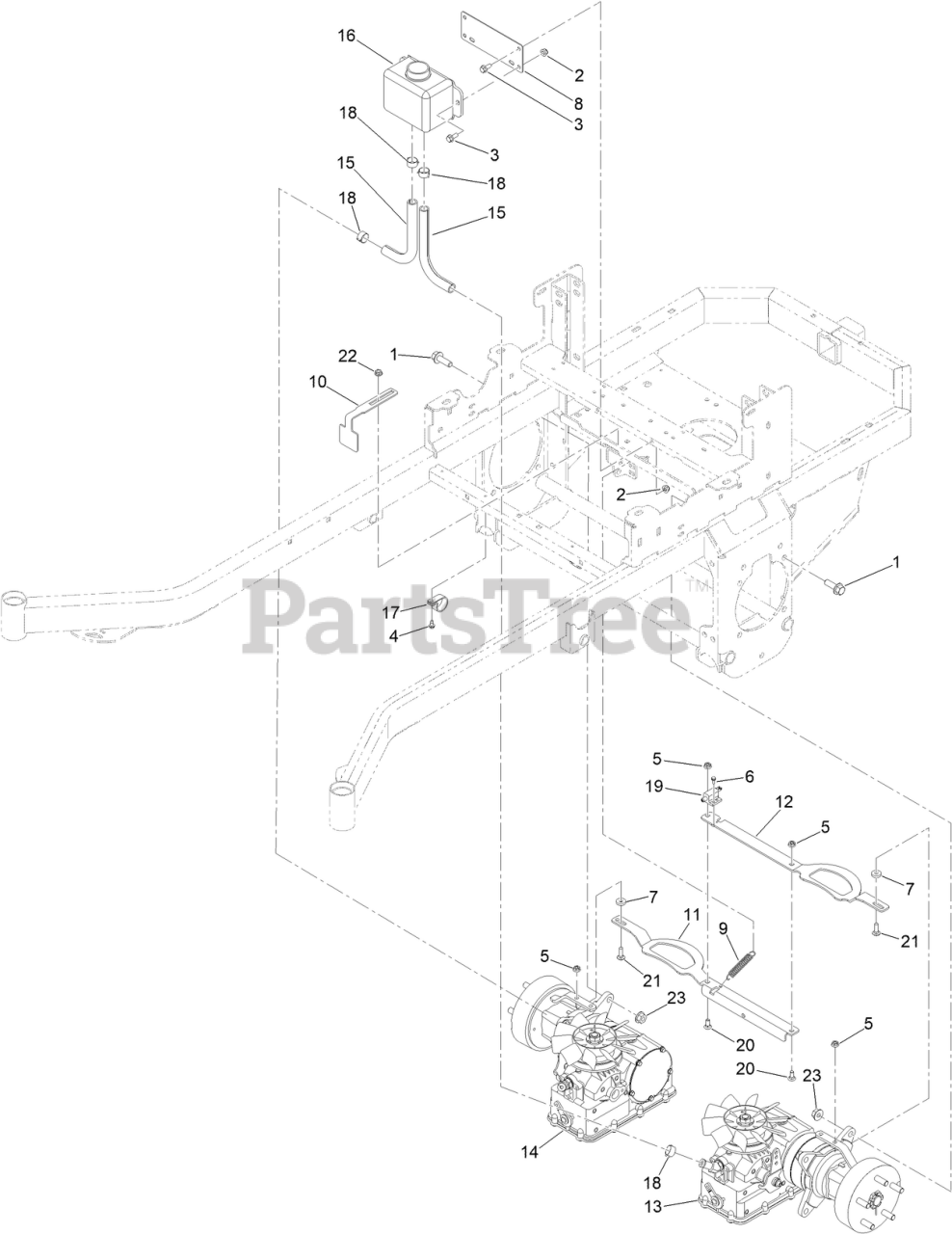

KGZ (SKXD161994VO) - Spartan 61" Zero-Turn Mower Transmission Assembly Parts Diagram

61" Zero-Turn Mower

Transmission Assembly Parts Diagram

  • Title

1

Toro 100-6116

SCREW-HHF

$9.99

$

Usually ships in 3-6 days

0

2

Toro 413-0027-00

NUT-HF, NI

$

$

Currently unavailable

3

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

4

Toro 120-9551

SCREW-HWH

$

$

Currently unavailable

5

Toro 413-0019-00

5/16-18 NYLON INSERT FLANGE L/NUT ZC

$

$

Currently unavailable

6

Toro 418-0032-00

8-32 X 1/2 IND. HWH SLOT TYPE F TCS ZINC

$

$

Currently unavailable

7

Toro 419-0006-00

.312 ID X .875OD X .1875 THK F/W NYL

$

$

Currently unavailable

8

Toro 426-0013-00-05

HYDRAULIC RESERVOIR MTNG PLATE PAINT

$

$

Currently unavailable

9

Toro 434-0003-00

MWR BRAKE PEDAL RELEASE SPRING

$

$

Currently unavailable

10

Toro 439-0066-00-05

STAND TRANSM BRAKE INTERLOCK BRKT BLACK

$

$

Currently unavailable

11

Toro 439-0808-00-05

KGZ PARK BRAKE BRKT RT PAINTED

$

$

Currently unavailable

12

Toro 439-0809-00-05

KGZ PARK BRAKE BRKT LT PAINTED

$

$

Currently unavailable

13

Toro 450-0015-00

HTG16 LT SIDE TRANSM W/CONTROL ORIFICE

$

$

Currently unavailable

14

Toro 450-0016-00

HTG16 PARKER RT SD TRANS W/CNTRL ORIFICE

$

$

Currently unavailable

15

Toro 451-0001-00

MWR 5/8IN HYDRAULIC HOSE, 1FT

$

$

Currently unavailable

16

Toro 467-0003-00

HYDRAULIC FLUID RESERVOIR

$

$

Currently unavailable

17

Toro 472-0001-00

1-1/4IN CUSHIONED LOOP CLAMP BLACK

$

$

Currently unavailable

18

Toro 472-0013-00

22MM HOSE CLAMP (CTB-22ST-FK)

$

$

Currently unavailable

19

Toro 486-0030-00

NO PLUNGER LIMIT SWITCH

$

$

Currently unavailable

20

Toro 418-0008-00

BOLT-CARR

$

$

Currently unavailable

21

Toro 418-0010-00

BOLT-CARR

$

$

Currently unavailable

22

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable

23

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0
