KGZ (SKXD172994VO) - Spartan 72" Zero-Turn Mower Fuel Tank Assembly Parts Diagram

72" Zero-Turn Mower

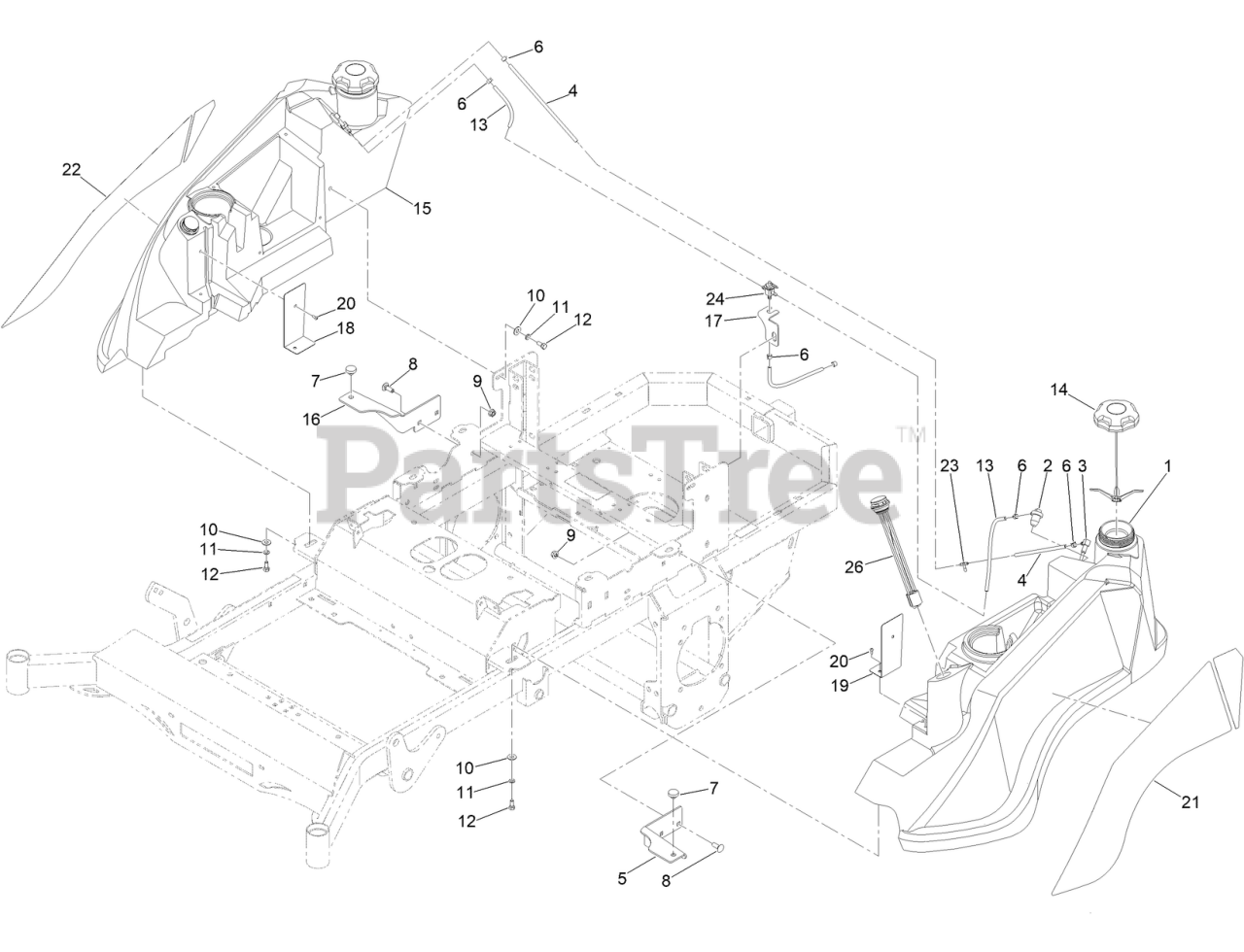

Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 467-0031-00

KGZ-XD LT TANK ASSY

$

$

Currently unavailable

2

Toro 467-0006-00

REMOTE TANK VENT VALVE W/GROMMET

$

$

Currently unavailable

3

Toro 467-0033-00

KGZ-XD PICK UP TUBE

$

$

Currently unavailable

4

Toro 451-0002-00

MWR FUEL TANK BLACK 3/16IN VENT TUBE 1FT

$

$

Currently unavailable

5

Toro 439-0820-00-05

2022 KGZ LT TANK BRKT BLACK

$

$

Currently unavailable

6

Toro 472-0004-00

1/2IN (#8) HOSE CLAMP

$

$

Currently unavailable

7

Toro 429-0002-00

PUSH-IN RUBBER BUMPER MWR FLOOR

$

$

Currently unavailable

8

Toro 418-0045-00

3/8-16 X 1 CARRIAGE BOLT YZ GR.8

$

$

Currently unavailable

9

Toro 413-0020-00

3/8-16 HEX FLANGE NUT W/SERR ZINC YELLOW

$

$

Currently unavailable

10

Toro 419-0007-00

WASHER-FLAT

$

$

Currently unavailable

11

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 418-0054-00

SCREW-HH

$

$

Currently unavailable

13

Toro 751-1014-00

1/4IN SAE J30R7 BULK HOSE 1FT

$

$

Currently unavailable

14

Toro 467-0008-00

KELCH TANK FILL NECK NON-VENTCAP(204541)

$

$

Currently unavailable

15

Toro 148-0309

TANK W/ CUPHOLDER

$

$

Currently unavailable

16

Toro 439-0821-00-05

2022 KGZ RT TANK BRKT BLACK

$

$

Currently unavailable

17

Toro 439-0810-00-05

KGZ FUEL SELECT/SHUTOFF VLV BRKT PAINT

$

$

Currently unavailable

18

Toro 439-0813-00-05

KGZ FUEL GAUGE WIRE COVER RT BLACK

$

$

Currently unavailable

19

Toro 439-0814-00-05

KGZ FUEL GAUGE WIRE COVER LT BLACK

$

$

Currently unavailable

20

Toro 618-8056-50

10-24 X 1/2 BUTTON SOCKET BLACK

$

$

Currently unavailable

21

Toro 148-0855

DECAL-TANK

$

$

Currently unavailable

22

Toro 148-0856

DECAL-TANK

$

$

Currently unavailable

23

Toro 414-0036-00

STAND-ON FUEL LINE T-CONN (3/16IN X 3IN)

$

$

Currently unavailable

24

Toro 467-0030-00

STAND-ON FUEL SELECTOR/SHUT OFF VALVE

$

$

Currently unavailable

26

Toro 467-0034-00

KGZ-XD FUEL GAUGE

$

$

Currently unavailable
