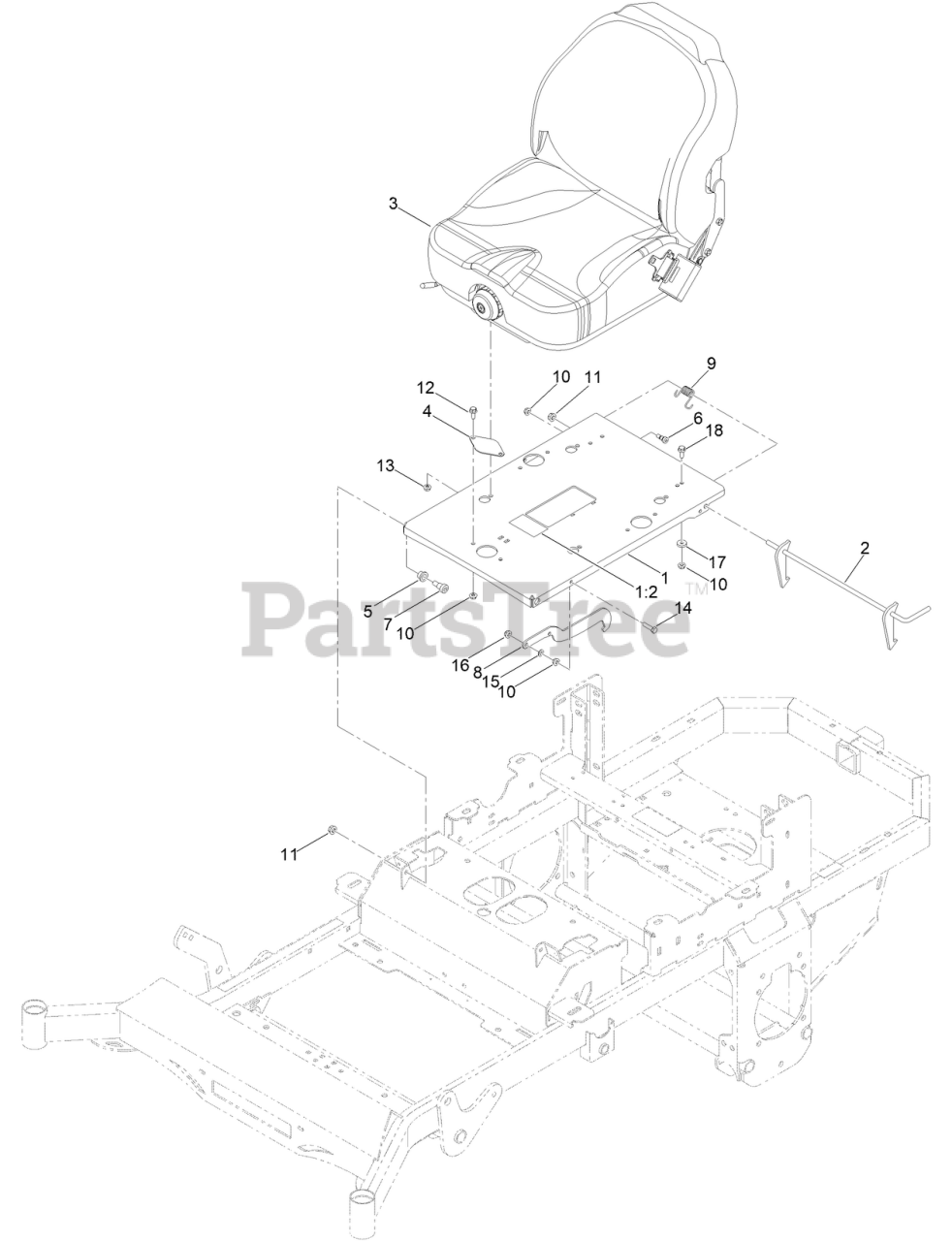

KGZ (SKXD172994VO) - Spartan 72" Zero-Turn Mower Seat Assembly Parts Diagram

72" Zero-Turn Mower

Seat Assembly Parts Diagram

  • Title

1

Toro 148-0792

ASM-SEAT PLATEFLOATING W/ DECAL

$

$

Currently unavailable

1:2

Toro 125-8473

DECAL-WARNING, BATTERY

$

$

Currently unavailable

2

Toro 490-0011-61

MWR SEAT LATCH RELEASE ASSY ABC

$

$

Currently unavailable

3

Toro 471-0038-00

KGZ-XD FULL SUSP SEAT

$

$

Currently unavailable

4

Toro 426-0241-00-05

UNIV FLOATING SEAT COVER PLATE BLACK

$

$

Currently unavailable

5

Toro 410-0010-00

1/2IN ID X 5/8IN OD X 1/2IN FLANGE BUSH

$

$

Currently unavailable

6

Toro 1-809056

SCREW-HSH

$8.49

$

In Stock, only 2 left!

0

7

Toro 418-0038-00

1/2 X 1/2 SOCKET SHOULDER BOLT ZC YELLOW

$

$

Currently unavailable

8

Toro 439-0065-00-05

MWR SEAT LATCH HOOK BLACK

$

$

Currently unavailable

9

Toro 434-0004-00

MWR SEAT LATCH SPRING

$

$

Currently unavailable

10

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable

11

Toro 413-0029-00

NUT-HEX

$

$

Currently unavailable

12

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

13

Toro 413-0019-00

5/16-18 NYLON INSERT FLANGE L/NUT ZC

$

$

Currently unavailable

14

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

15

Toro 413-0016-00

.312IDX.625ODX.062 THK THRUST BRG OI BRZ

$

$

Currently unavailable

16

Toro 413-0027-00

NUT-HF, NI

$

$

Currently unavailable

17

Toro 419-0006-00

.312 ID X .875OD X .1875 THK F/W NYL

$

$

Currently unavailable

18

Toro 418-0048-00

5/16-18 X 3/4 HEX FLANGE BOLT GR 8 YZ

$

$

Currently unavailable
