KHDS 750 A (KHDS750A-A3) - Kawasaki Hedge Trimmer ELECTRIC-EQUIPMENT Parts Diagram

Hedge Trimmer

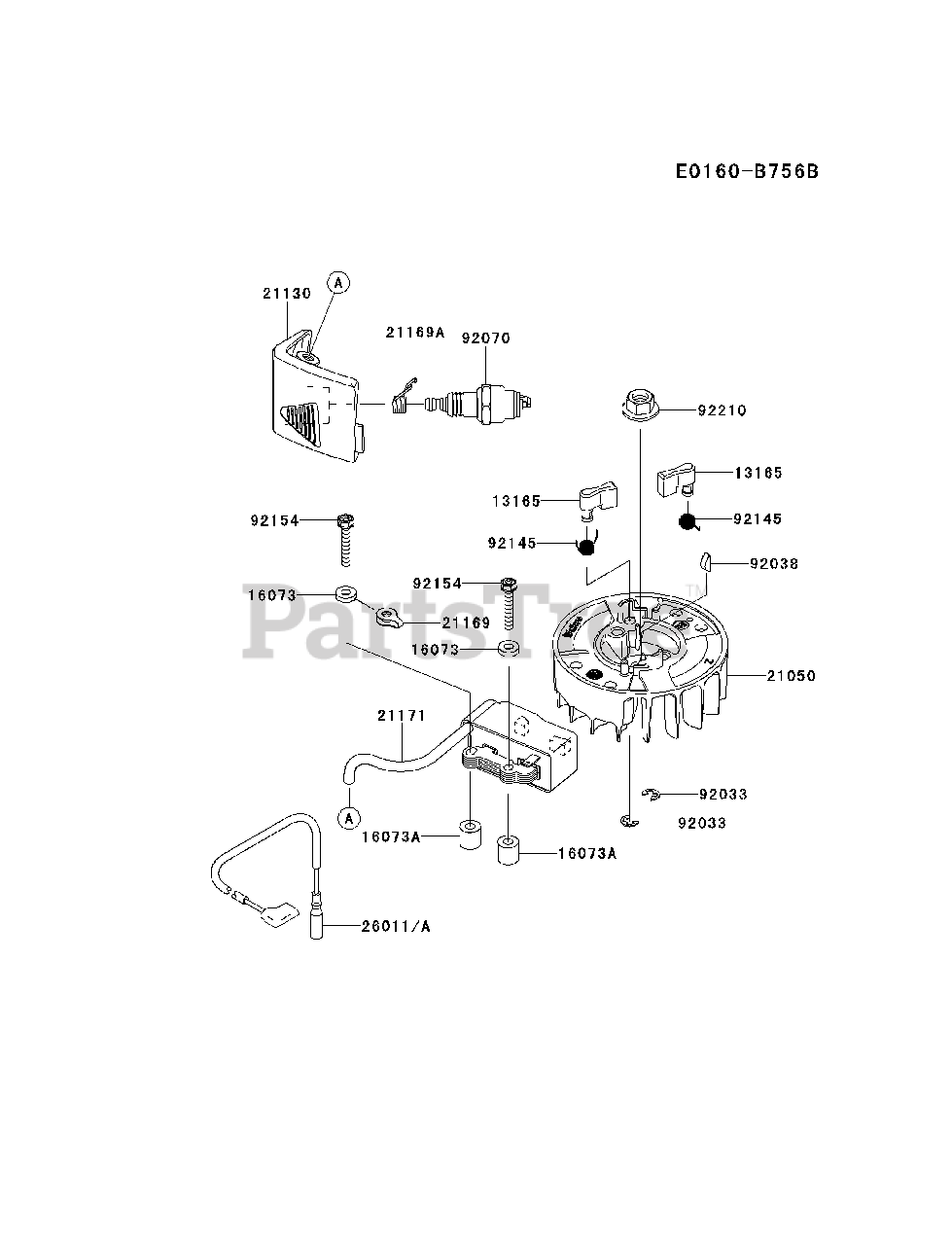

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

13165

Kawasaki 13165-0563

PAWL

$4.99

$

In Stock, only 2 left!

0

16073

Kawasaki 16073-0780

INSULATOR

$2.49

$

Usually ships in 2-5 days

0

16073A

Kawasaki 16073-2239

INSULATOR

$2.49

$

Usually ships in 2-5 days

0

21050

Kawasaki 21050-0708

FLYWHEEL

$156.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-0558

CAP-SPARK PLUG
(Superseded to 21130-2075)

$10.99

$

In Stock, only 1 left!

0

21169

Kawasaki 21169-0037

TERMINAL

$1.49

$

Usually ships in 2-5 days

0

21169A

Kawasaki 21169-2078

TERMINAL
(Superseded to 21169-2075)

$1.49

$

In Stock, Qty 11

0

21171

Kawasaki 21171-0031

COIL-ASSY-IGNITION

$

$

Not available

26011

Kawasaki 260110747

WIRE-LEAD

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

26011A

Kawasaki 26011-0833

WIRE-LEAD

$

$

Not available

92033

Kawasaki 92033-0716

RING-SNAP

$1.49

$

In Stock, only 4 left!

0

92038

Kawasaki 92038-2106

KEY

$8.99

$

In Stock, only 4 left!

0

92070

Kawasaki 920702122

PLUG-SPARK,BPMR8Y

Note: NGK

$24.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-0867

SPRING

$6.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 921542041

BOLT,4X25

$1.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-0737

NUT,8MM

$

$

Not available
