KHDS 750 A (KHDS750A-A3) - Kawasaki Hedge Trimmer FUEL-TANK/FUEL-VALVE Parts Diagram

Hedge Trimmer

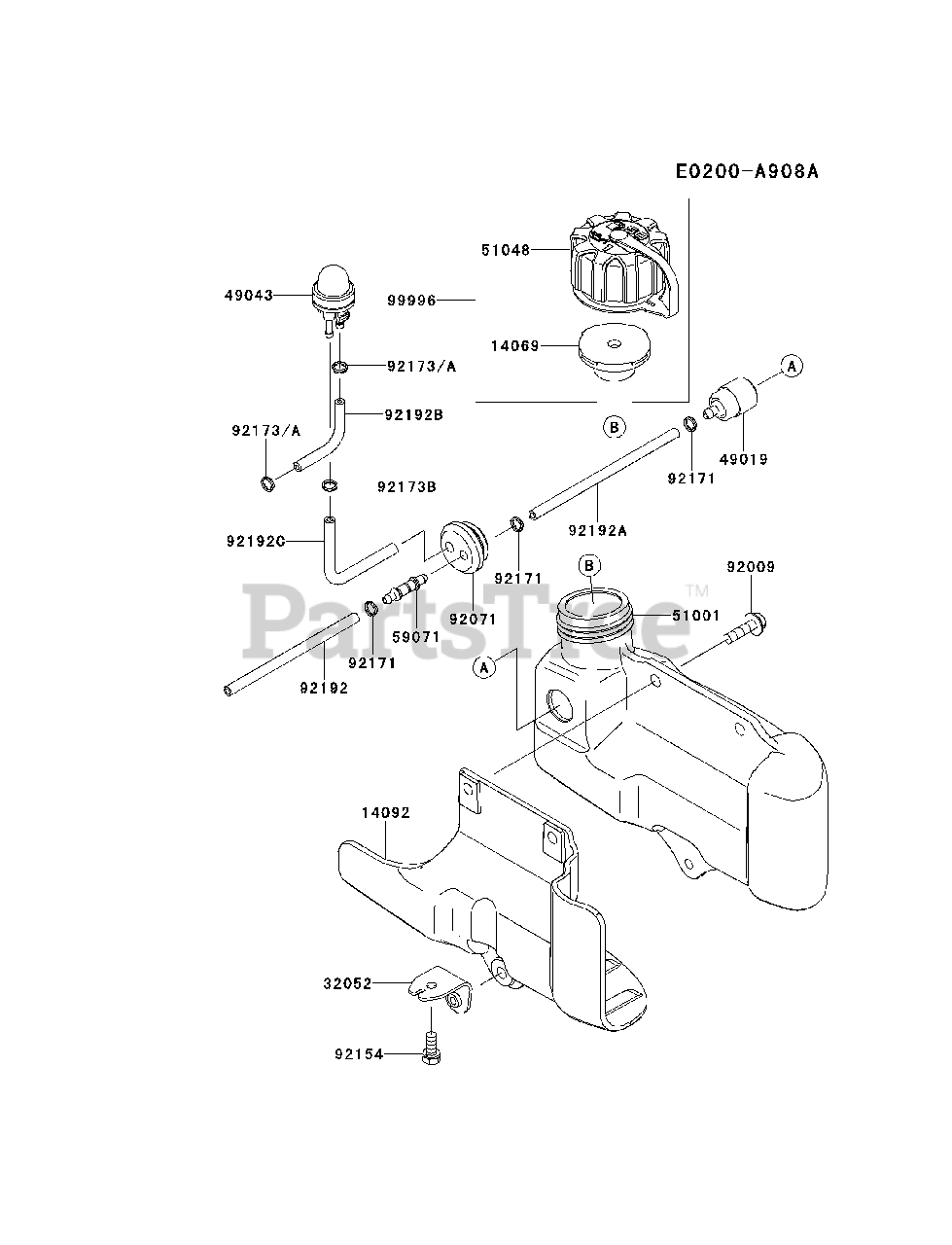

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title

14069

Kawasaki 140690013

BREATHER
(Superseded to 14069-2088)

$17.99

$

In Stock, Qty 20+

0

14092

Kawasaki 14092-1066

COVER,TANK

$13.99

$

Usually ships in 2-5 days

0

32052

Kawasaki 32052-0715

BRACKET-TANK

$11.99

$

In Stock, only 1 left!

0

49019

Kawasaki 49019-2111

FILTER-FUEL

$10.99

$

Usually ships in 2-5 days

0

49043

Kawasaki 49043-2074

PUMP-PRIMING,CARBURETOR
(Superseded to 49043-2073)

$21.99

$

In Stock, Qty 14

0

51001

Kawasaki 51001-2339

TANK-COMP-FUEL

$

$

Not available

51048

Kawasaki 51048-2083

CAP-ASSY-TANK

$14.99

$

In Stock, Qty 19

0

59071

Kawasaki 590710048

JOINT

$10.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092383

SCREW,5X20

$1.49

$

In Stock, Qty 5

0

92071

Kawasaki 92071-2169

GROMMET

$

$

Not available

92154

Kawasaki 92154-0874

BOLT,5X12

$1.49

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-2086

CLAMP

$1.99

$

In Stock, Qty 5

0

92173

Kawasaki 92173-0860

CLAMP

Note: Substitute part, supplied until the stock is exhausted.

$

$

Currently unavailable

92173A

Kawasaki 921732018

CLAMP

$1.49

$

Usually ships in 2-5 days

0

92173B

Kawasaki 921732022

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-1165

TUBE,3X5X90

$15.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-1198

TUBE,3X5X101

$

$

Not available

92192B

Kawasaki 921921319

TUBE,2.3X5X40

$3.49

$

Usually ships in 2-5 days

0

92192C

Kawasaki 92192-2178

TUBE,3X5.5X80

$7.49

$

In Stock, only 1 left!

0

99996

Kawasaki 999966101

KIT,CAP-TANK & BREATHER

$21.99

$

In Stock, Qty 12

0
