KHSS 750 A (KHSS750A-A1) - Kawasaki Hedge Trimmer CARBURETOR Parts Diagram

Hedge Trimmer

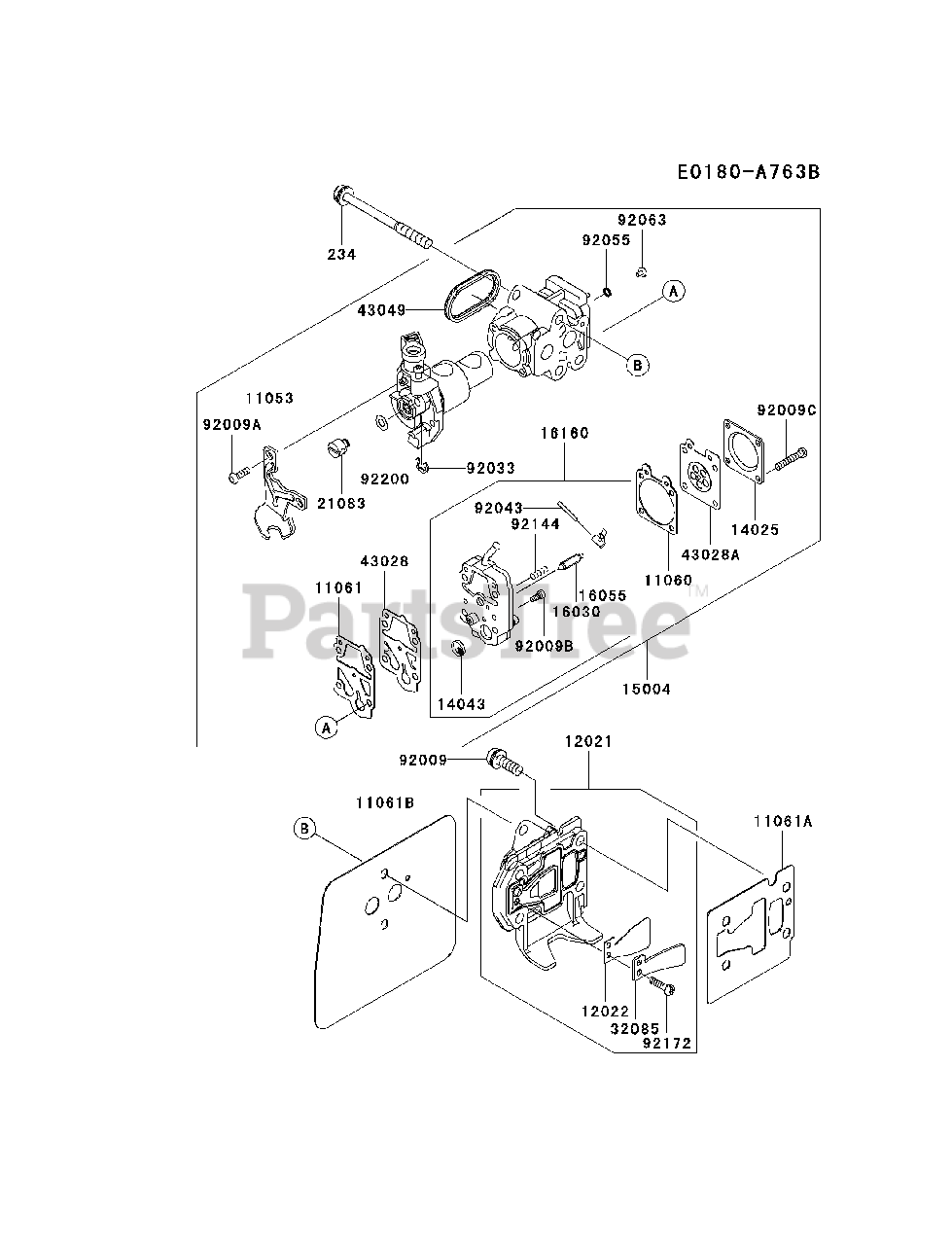

CARBURETOR Parts Diagram

  • Title

11053

Kawasaki 11053-2066

BRACKET

$

$

Not available

11060

Kawasaki 11060-2456

GASKET

$4.49

$

In Stock, only 3 left!

0

11061

Kawasaki 11061-2054

GASKET

$5.99

$

In Stock, Qty 5

0

11061A

Kawasaki 11061-2201

GASKET
(Superseded to 11061-0773)

$7.49

$

Usually ships in 2-5 days

0

11061B

Kawasaki 11061-2218

GASKET,VALVE

$6.49

$

Usually ships in 2-5 days

0

12021

Kawasaki 12021-2056

VALVE-ASSY-REED
(Superseded to 12021-0033)

$39.99

$

Usually ships in 2-5 days

0

12022

Kawasaki 12022-2060

VALVE-REED
(Superseded to 12022-2064)

$

$

Not available

14025

Kawasaki 14025-2157

COVER
(Superseded to 310370-6165A)

$7.99

$

In Stock, only 2 left!

0

14043

Kawasaki 14043-2051

FILTER
(Superseded to 14043-2055)

$3.49

$

In Stock, only 2 left!

0

15004

Kawasaki 15004-2040

CARBURETOR-ASSY
(Superseded to 15004-0747)

$232.99

$

Usually ships in 2-5 days

0

16030

Kawasaki 16030-2078

VALVE-FLOAT
(Superseded to 16030-2064)

$19.99

$

Usually ships in 2-5 days

0

16055

Kawasaki 16055-2051

LEVER
(Superseded to 310370-6178A)

$5.49

$

In Stock, only 3 left!

0

16160

Kawasaki 16160-2143

BODY

$40.99

$

Usually ships in 2-5 days

0

21083

Kawasaki 21083-2073

ARM

$7.49

$

Usually ships in 2-5 days

0

32085

Kawasaki 32085-2106

STOPPER

$1.49

$

In Stock, only 3 left!

0

43028

Kawasaki 43028-2067

DIAPHRAGM

$9.49

$

In Stock, only 1 left!

0

43028A

Kawasaki 43028-2096

DIAPHRAGM
(Superseded to 43028-2090)

$29.99

$

In Stock, only 3 left!

0

43049

Kawasaki 43049-2062

PACKING

$5.49

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2249

SCREW,5X20
(Superseded to 92172-2128)

$0.99

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2277

SCREW

$2.49

$

In Stock, only 2 left!

0

92009B

Kawasaki 92009-2336

SCREW

$3.49

$

In Stock, Qty 5

0

92009C

Kawasaki 92009-2438

SCREW

$2.49

$

In Stock, only 1 left!

0

92033

Kawasaki 92033-2078

RING-SNAP

$1.99

$

In Stock, only 3 left!

0

92043

Kawasaki 92043-2094

PIN

$2.49

$

In Stock, only 1 left!

0

92055

Kawasaki 92055-2147

RING-O

$4.49

$

Usually ships in 2-5 days

0

92063

Kawasaki 92063-2368

JET-MAIN,#33.5

$7.99

$

Usually ships in 2-5 days

0

92144

Kawasaki 92144-2308

SPRING

$3.99

$

Usually ships in 2-5 days

0

92172

Kawasaki 92172-2091

SCREW,3X12

$0.99

$

In Stock, Qty 14

0

92200

Kawasaki 92200-2074

WASHER

$1.99

$

In Stock, Qty 5

0

234

Kawasaki 234AA0560

SCREW-PAN-WSP+-,5X60
(Superseded to 234B0560)

$0.99

$

In Stock, Qty 8

0
