KHSS 750 A (KHSS750A-A1) - Kawasaki Hedge Trimmer CASE/CUTTER Parts Diagram

Hedge Trimmer

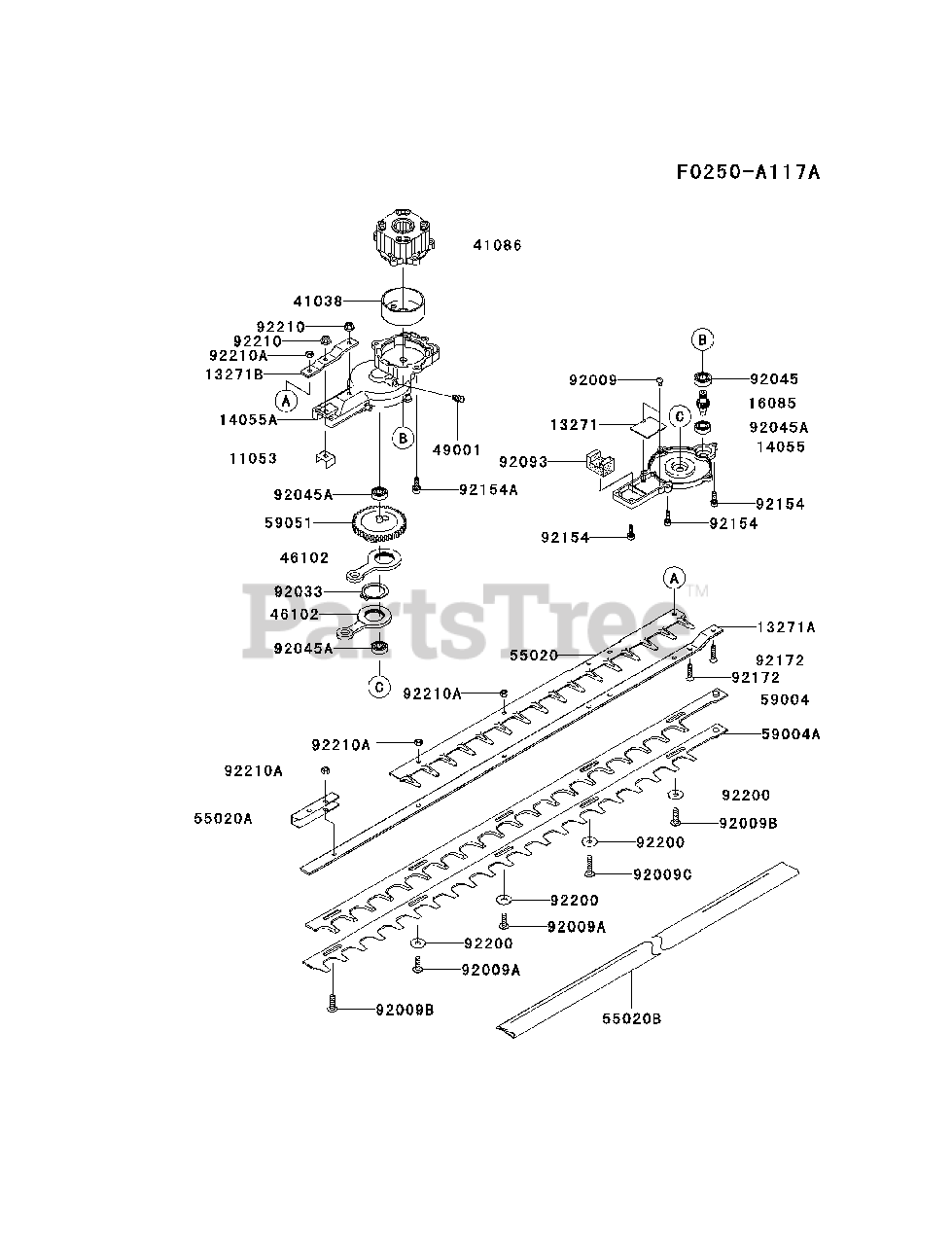

CASE/CUTTER Parts Diagram

  • Title

11053

Kawasaki 11053-2085

BRACKET

$8.99

$

In Stock, only 1 left!

0

13271

Kawasaki 132712069

PLATE,ROD

$5.99

$

In Stock, only 1 left!

0

13271A

Kawasaki 13271-2071

PLATE

$71.99

$

Usually ships in 2-5 days

0

13271B

Kawasaki 13271-2233

PLATE

$9.49

$

Usually ships in 2-5 days

0

14055

Kawasaki 14055-2255

CASE-GEAR,LWR

$45.99

$

Usually ships in 2-5 days

0

14055A

Kawasaki 14055-2256

CASE-GEAR,UPP

$123.99

$

Usually ships in 2-5 days

0

16085

Kawasaki 16085-V006

GEAR,PINION

$68.99

$

Usually ships in 2-5 days

0

41038

Kawasaki 41038-V001

DRUM,CLUTCH

$23.99

$

Usually ships in 2-5 days

0

41086

Kawasaki 41086-2182

FLANGE

$

$

Not available

46102

Kawasaki 46102-V003

ROD,CUTTER
(Superseded to 46102-2081)

$54.99

$

In Stock, only 2 left!

0

49001

Kawasaki 49001-2058

NIPPLE-GREASE
(Superseded to 99971-0209)

$1.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-2137

GUARD,BLAID,S

$

$

Not available

55020A

Kawasaki 55020-2138

GUARD,TOP,S

$5.99

$

Usually ships in 2-5 days

0

55020B

Kawasaki 55020-2139

GUARD,CUTTER,S

$18.99

$

Usually ships in 2-5 days

0

59004

Kawasaki 59004V014

CUTTER,UPP

$149.99

$

Usually ships in 2-5 days

0

59004A

Kawasaki 59004V015

CUTTER,LWR

$149.99

$

In Stock, only 1 left!

0

59051

Kawasaki 59051-2351

GEAR-SPUR

$113.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2421

SCREW,3X5

$0.99

$

In Stock, Qty 7

0

92009A

Kawasaki 92009-2423

SCREW,L=19

$2.99

$

In Stock, Qty 20+

0

92009B

Kawasaki 92009-2424

SCREW,L=22

$3.49

$

In Stock, only 4 left!

0

92009C

Kawasaki 92009-2426

SCREW,L=29

$4.99

$

In Stock, only 1 left!

0

92033

Kawasaki 92033-2182

RING-SNAP,DIA=26

$1.49

$

In Stock, only 3 left!

0

92045

Kawasaki 92045-2246

BEARING-BALL,6001RS

$11.99

$

Usually ships in 2-5 days

0

92045A

Kawasaki 920452247

BEARING-BALL,608ZL

$11.99

$

In Stock, only 4 left!

0

92093

Kawasaki 92093-2125

SEAL

$12.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-V012

BOLT,SOCKET,5X16

$3.99

$

Usually ships in 2-5 days

0

92154A

Kawasaki 92154-V016

BOLT,SOCKET,6X16

$5.99

$

Usually ships in 2-5 days

0

92172

Kawasaki 92172-V006

SCREW,5X20

$4.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2103

WASHER

$0.99

$

In Stock, Qty 20+

0

92210

Kawasaki 92210-2065

NUT,M5

$1.49

$

In Stock, Qty 7

0

92210A

Kawasaki 92210-2066

NUT,M6

$1.49

$

In Stock, Qty 20+

0
