KHT 600 SC (KHT600SC-A2) - Kawasaki Hedge Trimmer FUEL-TANK/FUEL-VALVE Parts Diagram

Hedge Trimmer

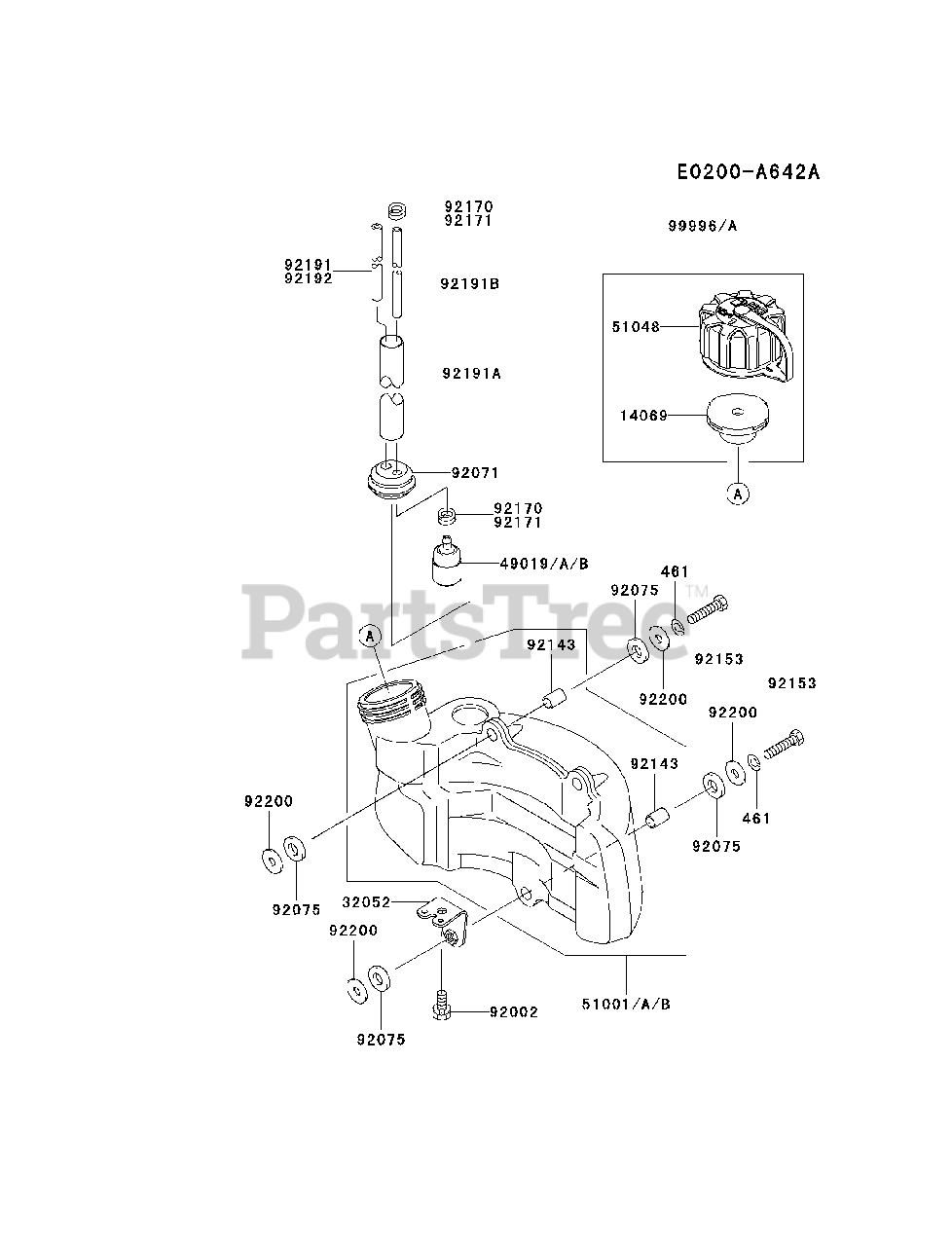

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title

14069

Kawasaki 14069-2088

BREATHER
(Superseded to 14069-0013)

$17.99

$

In Stock, only 4 left!

0

32052

Kawasaki 320522157

BRACKET-TANK

$2.49

$

In Stock, only 1 left!

0

49019A

Kawasaki 49019-2114

FILTER-FUEL

$13.99

$

In Stock, only 2 left!

0

51001A

Kawasaki 510012313

TANK-COMP-FUEL
(Superseded to 51001-2281)

$68.99

$

In Stock, only 1 left!

0

51001B

Kawasaki 510012327

TANK-COMP-FUEL

$46.99

$

Usually ships in 2-5 days

0

51048

Kawasaki 51048-2083

CAP-ASSY-TANK

$12.99

$

In Stock, only 1 left!

0

92002

Kawasaki 920022313

BOLT

$0.99

$

In Stock, only 2 left!

0

92071

Kawasaki 92071-2142

GROMMET,FUEL TANK

$4.99

$

In Stock, Qty 20+

0

92075

Kawasaki 920752116

DAMPER

$0.99

$

In Stock, only 3 left!

0

92143

Kawasaki 921432159

COLLAR

$0.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 921532087

BOLT,5X22

$1.49

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-2073

CLAMP

$1.49

$

In Stock, Qty 20+

0

92191A

Kawasaki 92191-2076

TUBE,12X13X130

$1.49

$

In Stock, Qty 6

0

92191B

Kawasaki 921912169

TUBE

$7.49

$

In Stock, only 2 left!

0

92192

Kawasaki 921922142

TUBE,3X6X260

$20.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2101

WASHER,5.2X15X1.2

$0.99

$

Usually ships in 2-5 days

0

99996

Kawasaki 99996-6085

KIT,CAP-ASSY-TANK
(Superseded to 99996-6089)

Note: Substitute part, supplied until the stock is exhausted.

$19.99

$

In Stock, only 2 left!

0

99996A

Kawasaki 99996-6089

CAP-TANK & BREATHER,ASSY
(Superseded to 99996-6101)

$19.99

$

In Stock, only 2 left!

0

461

Kawasaki 461K0500

WASHER-SPRING,5MM
(Superseded to 461DB0500)

$2.49

$

Usually ships in 2-5 days

0
