KHT 750 SC (KHT750SC-A1) - Kawasaki Hedge Trimmer CYLINDER/CRANKCASE Parts Diagram

Hedge Trimmer

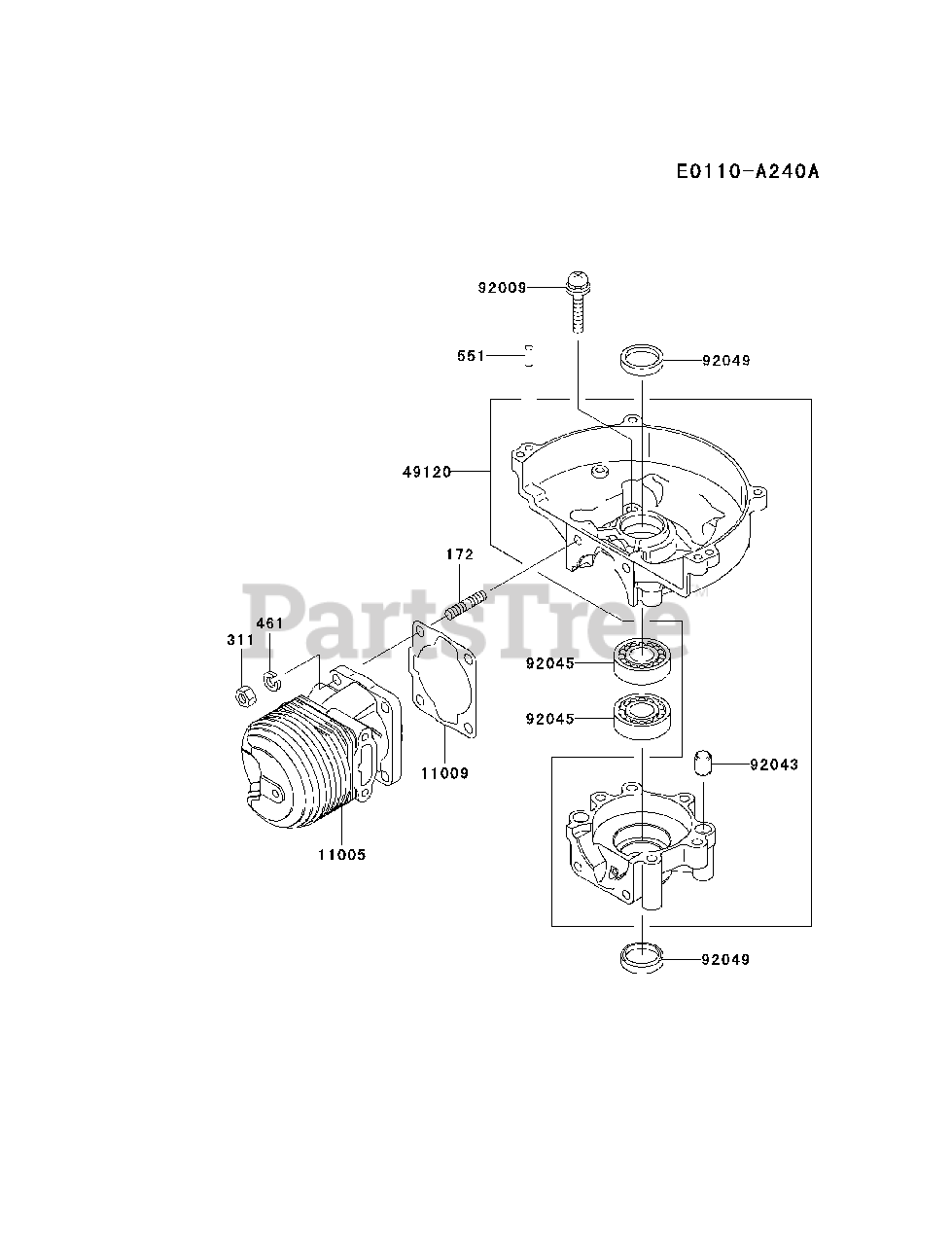

CYLINDER/CRANKCASE Parts Diagram

  • Title

11005

Kawasaki 110052146

CYLINDER-ENGINE

$201.99

$

Usually ships in 2-5 days

0

11009

Kawasaki 110092796

GASKET,CYLINDER
(Superseded to 11009-2286)

$1.99

$

In Stock, only 4 left!

0

49120

Kawasaki 491206124

CRANKCASE-COMP
(Superseded to 49120-6018)

$157.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092115

SCREW

$0.99

$

Usually ships in 2-5 days

0

92043

Kawasaki 920431302

PIN

$1.49

$

Usually ships in 2-5 days

0

92045

Kawasaki 920452060

BEARING-BALL,6001V3

$15.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 920492108

SEAL-OIL

$8.49

$

Usually ships in 2-5 days

0

172

Kawasaki 172G0514

BOLT-STUD,5X14
(Superseded to 172BA0514)

$0.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311B0500

NUT-HEX,5MM
(Superseded to 311AA0500)

$0.99

$

Usually ships in 2-5 days

0

461

Kawasaki 461F0500

WASHER-SPRING,5MM
(Superseded to 461DA0500)

$0.99

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0410

PIN-DOWEL,4X10

$0.99

$

In Stock, Qty 10

0
