KMC 01A-A1 - Kawasaki Multi-Task Series Cultivator CASE/CUTTER Parts Diagram

Multi-Task Series Cultivator

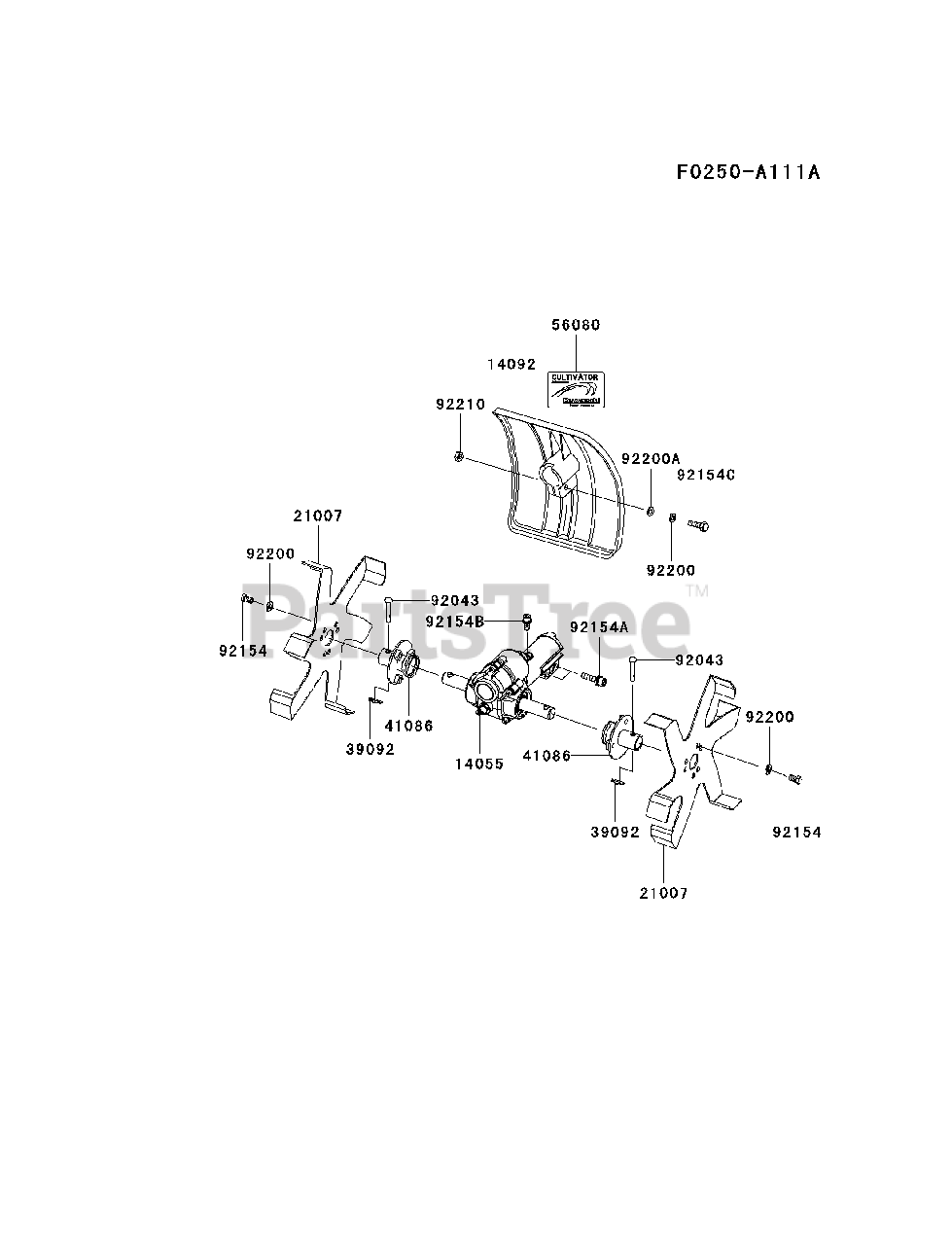

CASE/CUTTER Parts Diagram

  • Title

14055

Kawasaki 14055V011

CASE-GEAR

$452.99

$

Usually ships in 2-5 days

0

14092

Kawasaki 14092V002

COVER,ROTOR

$53.99

$

Usually ships in 2-5 days

0

21007

Kawasaki 21007-V001

ROTOR,CULTI

$108.99

$

Usually ships in 2-5 days

0

39092

Kawasaki 39092V001

PIN-HAIR

$1.49

$

Usually ships in 2-5 days

0

41086

Kawasaki 41086V001

FLANGE,ROTOR

$22.99

$

Usually ships in 2-5 days

0

56080

Kawasaki 56080V003

LABEL-BRAND

$14.99

$

Usually ships in 2-5 days

0

92043

Kawasaki 92043-V002

PIN

$6.49

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154V004

BOLT,6X10

$0.99

$

Usually ships in 2-5 days

0

92154A

Kawasaki 92154V005

BOLT,SOCKET,6X25

$6.49

$

Usually ships in 2-5 days

0

92154B

Kawasaki 92154V006

BOLT,SOCKET,6X14

$5.99

$

Usually ships in 2-5 days

0

92154C

Kawasaki 92154V007

BOLT,6X20

$1.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200V009

WASHER,SPRING,M6

$0.99

$

Usually ships in 2-5 days

0

92200A

Kawasaki 92200V010

WASHER,M6

$0.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210V007

NUT,M6

$0.99

$

Usually ships in 2-5 days

0
