Kodiak 50 - Dixon 50" Kodiak Zero-Turn Mower (2006) ENGINE (KOHLER 20 HP) Parts Diagram

50" Kodiak Zero-Turn Mower

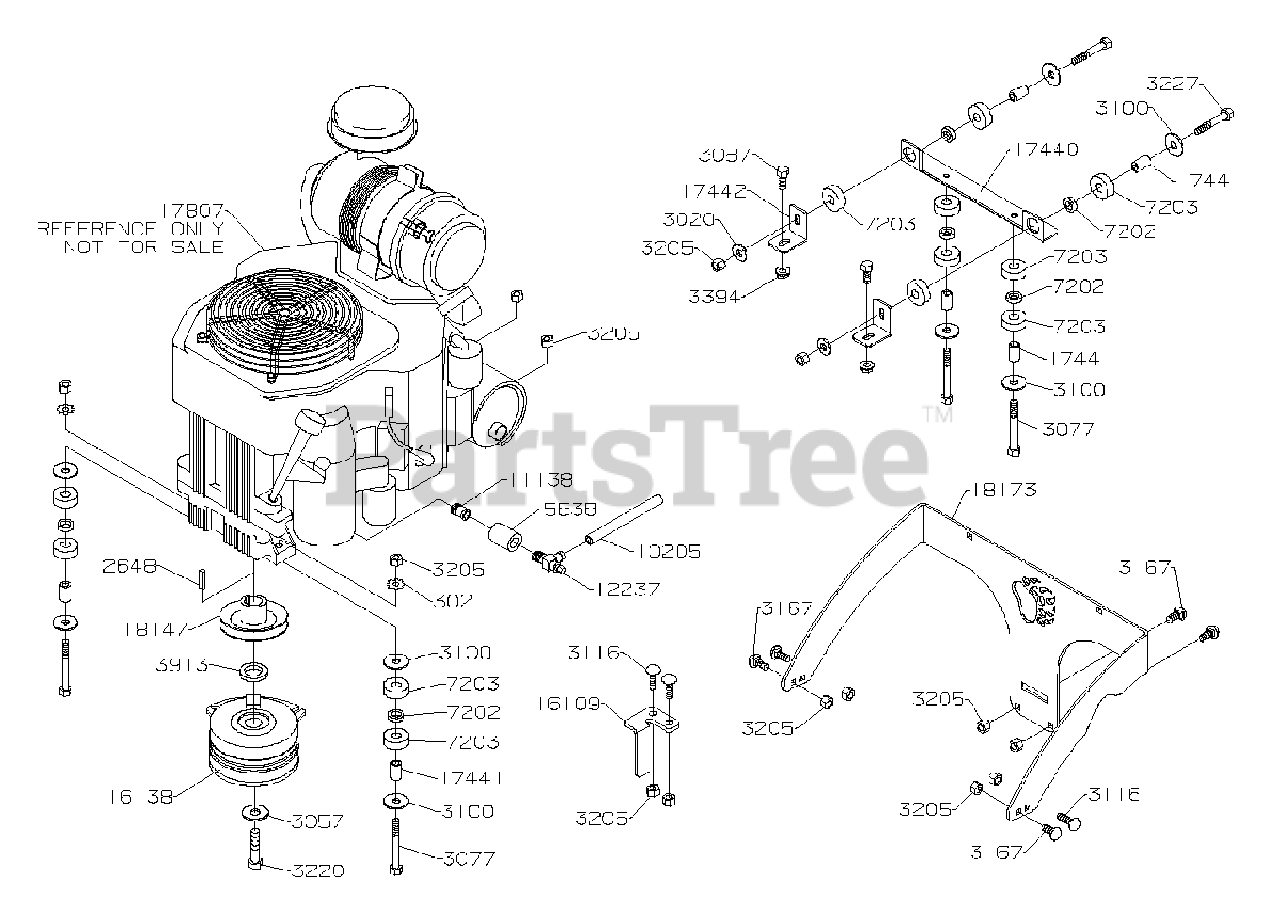

ENGINE (KOHLER 20 HP) Parts Diagram

  • Title
2648

2648

KEY - 1/4 X .88

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3913

3913

SPACER .25

$

$

Not available

5838

5838

FEMALE COUPLING

$

$

Not available

7202

7202

ISO-MOUNT INSERT

$

$

Not available

7203

7203

ISO-MOUNT BUSHING

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

11138

11138

NIPPLE

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

16109

16109

CLUTCH STOP

$

$

Not available

16138

16138

CLUTCH

$

$

Not available

17440

17440

ISO MT. PLATE

$

$

Not available

17441

17441

ISO MT. BUSHING

$

$

Not available

17442

17442

ISO MT. BRKT.

$

$

Not available

17807

17807

$

$

Not available

18147

18147

ENGINE PULLEY

$

$

Not available

18173

18173

REAR GUARD

$

$

Not available
