Kodiak 52 (968999577) - Dixon 52" Kodiak Zero-Turn Mower, 20hp Honda (2008-05) ENGINE PLATE Parts Diagram

52" Kodiak Zero-Turn Mower, 20hp Honda

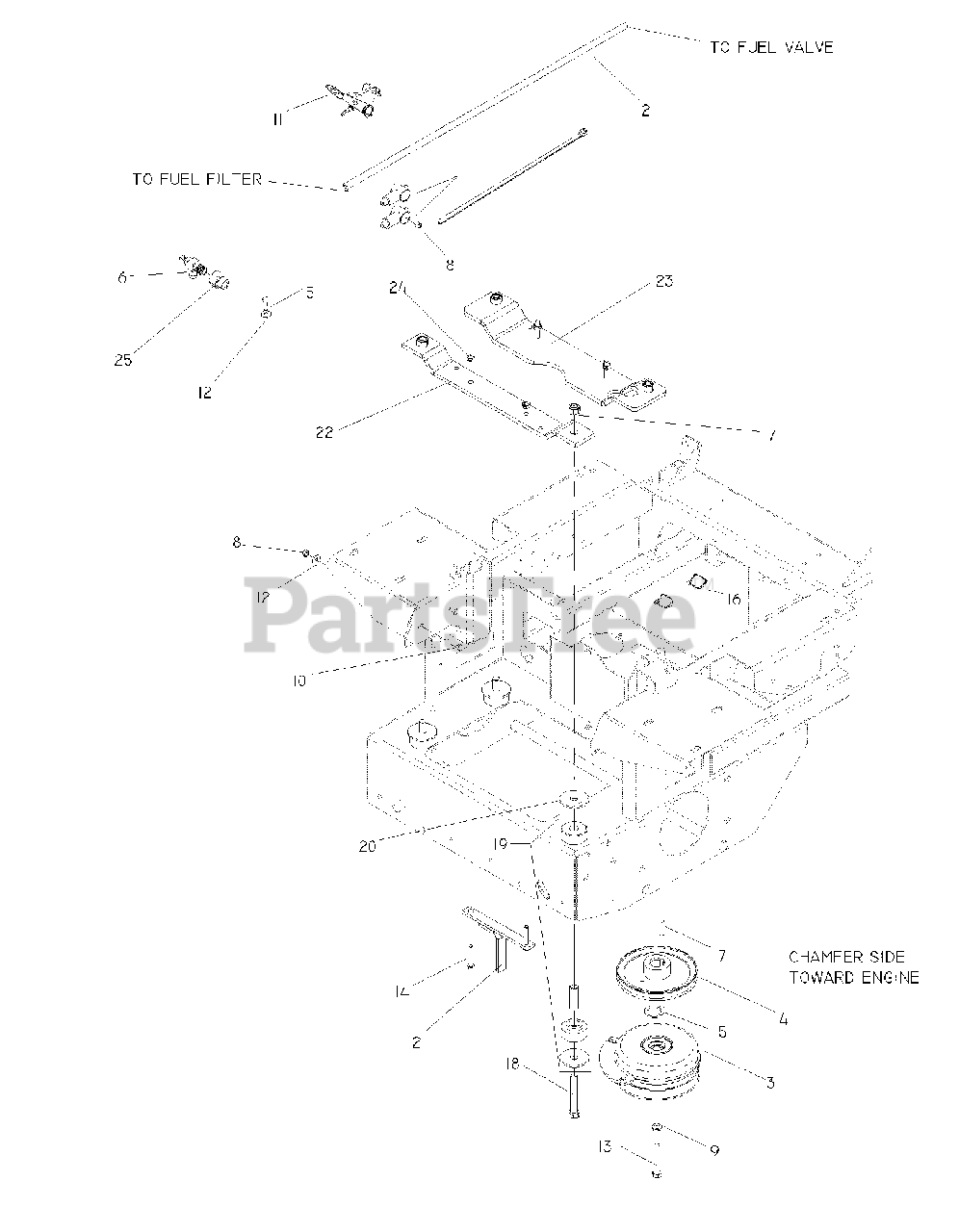

ENGINE PLATE Parts Diagram

  • Title

1

Dixon 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

2

Dixon 539110424

FUEL LINE 24"
(Superseded to 539107765)

$7.49

$

In Stock, only 3 left!

0

3

Dixon 539106880

CLUTCH-200 FT LB(RPLS 5218-102

$

$

Not available

4

Dixon 539106992

PULLEY

$

$

Not available

5

Dixon 539107955

HEX HEAD SCREW M6 X 1 X 20

$

$

Not available

6

Dixon 539121619

OIL DRAIN ADAP.(HONDA)

$

$

Not available

7

Dixon 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

In Stock, Qty 10

0

8

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

9

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

10

Dixon 539990548

HCS 1/4 X 1

$3.99

$

In Stock, only 1 left!

0

11

Dixon 539118815

CABLE CHOKE

$34.99

$

In Stock, only 2 left!

0

12

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available

13

Dixon 539991120

BOLT 7/16F X 2 1/2

$6.49

$

In Stock, Qty 11

0

14

Dixon 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

15

Dixon 539102050

BUSHING, 10GA MACHINERY

$

$

Not available

16

Dixon 539976856

TIE, PLASTIC

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

18

Dixon 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 12

0

19

Dixon 539104958

ISOLATORS

$

$

Not available

20

Dixon 539104959

ISOLATOR WASHER

$15.99

$

In Stock, only 1 left!

0

21

Dixon 539106819

CLUTCH TIE DOWN

$

$

Not available

22

Dixon 539114306

STRAP, ISO, REAR

$

$

Not available

23

Dixon 539114930

MOUNT, ENGINE - BLACK

$

$

Not available

24

Dixon 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

25

Dixon TBD

TBD

$

$

Not available

Dixon 539102757

CABLE POSITIVE

Note: NOT SHOWN

$15.99

$

Usually ships in 3-10 days

0

Dixon 539114231

PIGTAIL, HONDA

Note: NOT SHOWN

$

$

Not available

Dixon 539121497

MUFFLER HONDA

Note: NOT SHOWN

$218.99

$

Usually ships in 3-10 days

0
