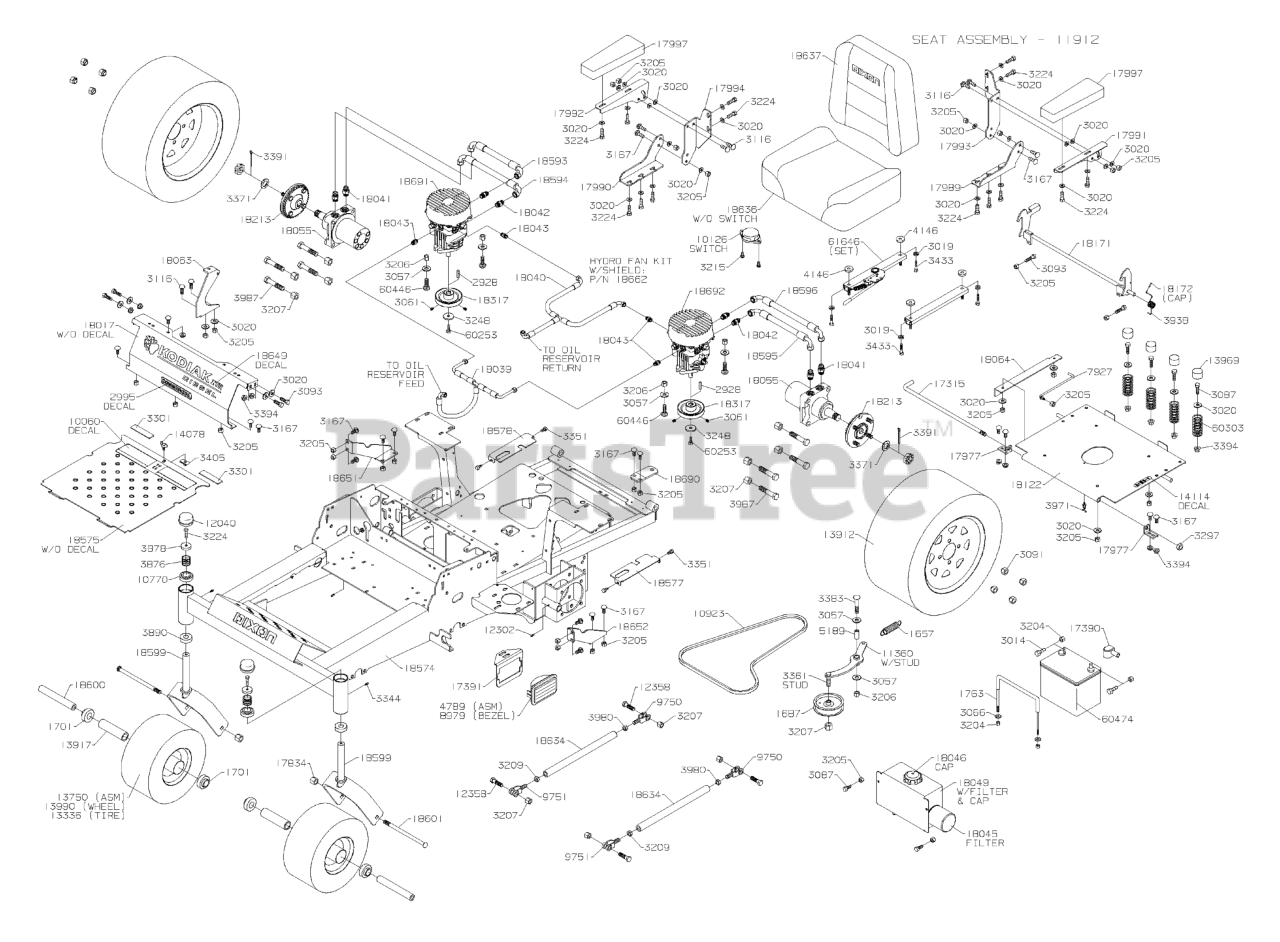

52" Kodiak Zero-Turn Mower, Diesel

CHASSIS Parts Diagram

  • Title

1657

1657

SPRING

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

2928

2928

KEY-3/16 DIA X 1

$

$

Not available

2995

2995

COMMERCIAL DECAL

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3215

3215

1/4-20X3/4RD HD SCR

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3301

3301

FOAM PAD 1/8X1X4

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3371

3371

WASHER .76X1.25X.085

$

$

Not available

3383

3383

3/8-16X2-1/4 CAR BLT

$

$

Not available

3391

3391

1/8DIAX1-1/2 COT PIN

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3433

3433

5/16-18X1-1/2 HHB GR5WNY

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3878

3878

$

$

Not available

3890

Dixon 3890

BEARING

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

3971

3971

LINK RETAINER

$

$

Not available

3980

Dixon 3980

1/2-20 LH HEX JAM NUT

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4789

4789

HEADLIGHT

$

$

Not available

5189

5189

BUSHING

$

$

Not available

7927

7927

ROD

$

$

Not available

8172

8172

FRAME - 503

$

$

Not available

8979

8979

HEADLIGHT BEZEL

$

$

Not available

9750

9750

LH CLEVIS

$

$

Not available

9751

9751

RH CLEVIS

$

$

Not available

10060

10060

DECAL, OPERATING INST.

$

$

Not available

10126

10126

R/B 10126 SEAT SWITCH

$

$

Not available

10770

10770

BUSHING, CASTER

$

$

Not available

10923

10923

BELT

$

$

Not available

11360

11360

ILDER ARM W/STUD

$

$

Not available

11912

11912

SEAT ASM.(REP. 18613)

$

$

Not available

12040

12040

DUST CAP

$

$

Not available

12302

12302

GREASE ZERK-1/4"

$

$

Not available

12358

12358

1/2-13X1-3/4 HHB GR. 5

$

$

Not available

13336

13336

FRONT TIRE

$

$

Not available

13750

13750

WHEEL & TIRE ASM.

$

$

Not available

13912

13912

REAR WHEEL AND TIRE ASM.

$

$

Not available

13917

13917

SPACER

$

$

Not available

13969

13969

$

$

Not available

13990

13990

FRONT WHEEL

$

$

Not available

14078

14078

1/4 X 20 X 1 WING BOLT

$

$

Not available

14114

14114

DECAL, PARK BRAKE

$

$

Not available

17315

17315

SEAT PIN

$

$

Not available

17390

17390

TERMINAL COVER

$

$

Not available

17391

17391

BRACKET HEADLIGHT.

$

$

Not available

17834

17834

NUT, HEX 1/2-13 W/NYLOK

$

$

Not available

17977

17977

SEAT PIVOT

$

$

Not available

17989

17989

SEAT BOT.BRKT. LH

$

$

Not available

17990

17990

SEAT BOT.BRKT. RH

$

$

Not available

17991

17991

ARM REST BRACKET LH

$

$

Not available

17992

17992

ARM REST BRACKET RH

$

$

Not available

17993

17993

SEAT BACK BRKT. LH

$

$

Not available

17994

17994

SEAT BACK BRKT. RH

$

$

Not available

17997

17997

ARMREST

$

$

Not available

18017

18017

FRONT PLATE

$

$

Not available

18039

18039

HYDRAULIC HOSE T-ASM

$

$

Not available

18040

18040

HYDRAULIC HOSE T-ASM.

$

$

Not available

18041

18041

FITTING HYDRAULIC

$

$

Not available

18042

18042

FITTING HYDRAULIC

$

$

Not available

18043

18043

FITTING HYDRAULIC

$

$

Not available

18045

18045

25 MICRON FILTER

$

$

Not available

18046

18046

HYDRO TANK CAP-KELCH

$

$

Not available

18049

18049

TANK ASM W/FILTER & CAP

$

$

Not available

18055

18055

MOTOR PARKER.

$

$

Not available

18063

18063

SEAT PLATE ANCHOR

$

$

Not available

18064

18064

SLIDE SEAT ROD

$

$

Not available

18122

18122

SEAT PLATE WLDT.

$

$

Not available

18171

18171

LATCH WLDT. (PLATED)

$

$

Not available

18213

18213

HUB ASM W/BRAKE & LUGS

$

$

Not available

18317

18317

PULLEY

$

$

Not available

18574

18574

$

$

Not available

18575

18575

FOOT PLATED

$

$

Not available

18577

18577

HYDRO COVER LH

$

$

Not available

18578

18578

HYDRO COVER RH

$

$

Not available

18593

18593

HOSE 8FLXP3-8FJX90MSP-

$

$

Not available

18594

18594

HOSE 8FLXP3-8FJX90MSP

$

$

Not available

18595

18595

HOSE 8FLXP3-8FJX90MSP

$

$

Not available

18596

18596

HOSE 8FLXP3-8FJX90MSP

$

$

Not available

18599

18599

CASTER WLDT.

$

$

Not available

18600

18600

TUBE

$

$

Not available

18601

18601

$

$

Not available

18634

18634

ROD TRAIL ARM

$

$

Not available

18636

18636

SEAT BOTTOM

$

$

Not available

18637

18637

SEAT BACK

$

$

Not available

18649

18649

KODIAK DIESEL DECAL

$

$

Not available

18651

18651

BRACE RH ENGINE

$

$

Not available

18652

18652

BRACE LH ENGINE

$

$

Not available

18662

18662

HUB/FAN KIT W/SHROUD

$

$

Not available

18690

18690

HITCH

$

$

Not available

18691

18691

PJ-3HCC-GY1C-XXXX PUMP

$

$

Not available

18692

18692

PJ-3KCC-GY1C-XXXX PUMP

$

$

Not available

60253

60253

CAPSCREW HH 6MM X 16MM

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60446

60446

3/8-16X1-1/4 CARRIAGE

$

$

Not available

60474

Dixon 60474

BATTERY

$

$

Not available

61646

61646

SEAT SLIDE (SET)

$

$
