Kodiak 52 Diesel - Dixon 52" Kodiak Zero-Turn Mower, Diesel (2006) CONTROLS & FUEL TANKS Parts Diagram

52" Kodiak Zero-Turn Mower, Diesel

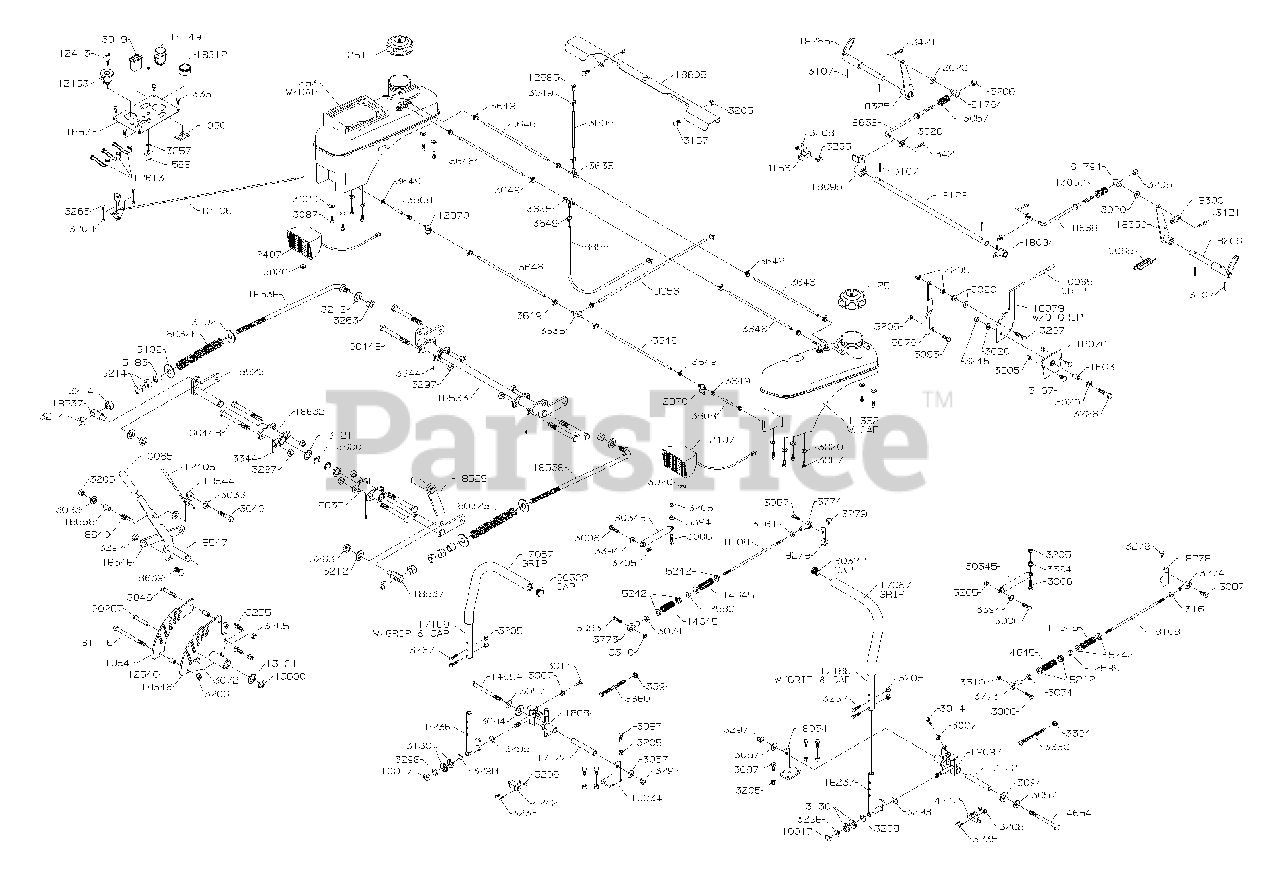

CONTROLS & FUEL TANKS Parts Diagram

  • Title

1060

1060

$

$

Not available

1603

1603

BUSHING

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3102

3102

5/8 STD FLATWASHER

$

$

Not available

3107

3107

HD 1/4X11/2 SPIR PIN

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3212

3212

5/8 FLAT WASH-NARROW

$

$

Not available

3214

3214

5/8-11 HEX NUT

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3255

3255

CARR BLT 3/8-16 X 1

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3263

3263

5/8-11 THIN PROF NY

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3279

3279

SET SCREW W/HEX HEAD

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3360

3360

5/16-18X4HHBG5 ALTHD

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3635

3635

FUEL LINE TEE

$

$

Not available

3646

Dixon 3646

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3808

3808

HOSE 1/4 X 5.5

$

$

Not available

3919

Dixon 3919

HOUR METER

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

5183

Dixon 5183

SPACER

$

$

Not available

5242

5242

PLUG W/HOLE - FLAT

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

8856

8856

R/B 8856 HOSE 1/4 X 25.5

$

$

Not available

10017

10017

NUT, HEX 1/2-13 THIN W/NY

$

$

Not available

10065

10065

GRIP

$

$

Not available

11352

11352

FUEL TANK ASM.-LH

$

$

Not available

11353

11353

FUEL TANK ASM.-RH

$

$

Not available

12106

12106

CABLE THROTTLE

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12405

12405

GRIP

$

$

Not available

12407

12407

HEADLIGHT ASM.

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

12511

12511

TANK CAP-DIESEL

$

$

Not available

12540

12540

BUSHING

$

$

Not available

12585

12585

VENT

$

$

Not available

12589

12589

LOCKING COLLAR

$

$

Not available

12613

12613

INDICATOR LIGHT ASM.

$

$

Not available

12870

12870

SHUT OFF VALVE

$

$

Not available

13057

13057

BRAKE SPRING

$

$

Not available

13121

13121

WASHER-1.06IDX1.63ODX.06

$

$

Not available

13212

13212

$

$

Not available

13600

13600

RETAINING RING-7/8

$

$

Not available

14149

14149

CLUTCH SWITCH

$

$

Not available

14645

14645

SPRING

$

$

Not available

14654

14654

1/2-13 X 6.0 HHB

$

$

Not available

17067

17067

GRIP

$

$

Not available

17122

17122

TUBE

$

$

Not available

17188

17188

CONTROL LEVER W/GRIP

$

$

Not available

17189

17189

CONTROL LEVER W/GRIP

$

$

Not available

18034

18034

PIVOT PLATE

$

$

Not available

18070

18070

PIVOT WLDT.

$

$

Not available

18078

18078

BRAKE LINK

$

$

Not available

18079

18079

HANDLE

$

$

Not available

18084

18084

CONTROL RH (PLATED)

$

$

Not available

18087

18087

CONTROL LH (PLATED)

$

$

Not available

18094

18094

DRILL BELL CRANK LH

$

$

Not available

18095

18095

BELL CRANK RH DRILLED

$

$

Not available

18108

18108

CONTROL ROD

$

$

Not available

18128

18128

BRAKE SHAFT (PLATED)

$

$

Not available

18156

18156

BRAKE SWITCH

$

$

Not available

18236

18236

CONTROL WLDT.RH(PLATED)

$

$

Not available

18237

18237

CONTROL WLDT.LH(PLATED)

$

$

Not available

18265

18265

BRAKE SHAFT RH (PLATED)

$

$

Not available

18266

18266

BRAKE SHAFT LH(PLATED)

$

$

Not available

18278

18278

CONTROL ARM DRILLED

$

$

Not available

18300

18300

BRKT.

$

$

Not available

18325

18325

DRILLED BRAKE ARM

$

$

Not available

18330

18330

BRAKE ARM DRILLED

$

$

Not available

18526

18526

LIFT SHAFT WLDT.

$

$

Not available

18529

18529

FOOT LEVER WLDT.

$

$

Not available

18533

18533

LIFT SHAFT REAR WLDT.

$

$

Not available

18537

18537

SWIVEL

$

$

Not available

18538

18538

LIFT ROD

$

$

Not available

18542

18542

QUAD.OUTSIDE(PLATED)

$

$

Not available

18544

18544

LIFT LATCH (PLATED)

$

$

Not available

18546

18546

QUADRANT WLDT.(PLATED)

$

$

Not available

18547

18547

$

$

Not available

18548

18548

LIFT LINK

$

$

Not available

18573

18573

CONTROL PANEL

$

$

Not available

18612

18612

TEMP GUAGE

$

$

Not available

18632

18632

$

$

Not available

18638

18638

BRAKE ROD

$

$

Not available

18639

18639

1/2-13 X 1-1/4 CAR BLT

$

$

Not available

18640

18640

SPRING

$

$

Not available

18658

18658

BUSHING

$

$

Not available

18805

18805

HOSE GUARD

$

$

Not available

60267

60267

CLEVIS PIN 1/2X2`LG.

$

$

Not available

60322

60322

END PLUG 15/16` (BLACK)

$

$

Not available

60328

60328

SPRING COMP. 1.406 O.D.

$

$

Not available

60345

60345

DAMPNER DUAL ACITON #326

$

$

Not available

60448

60448

CAPSCREW 1/2-13X4-1/2`

$

$

Not available

61418

61418

CAPSCREW HX 3/8-16X5 GR5

$

$

Not available

61794

61794

SWIVEL

$

$

Not available
