52" Kodiak Zero-Turn Mower, Diesel

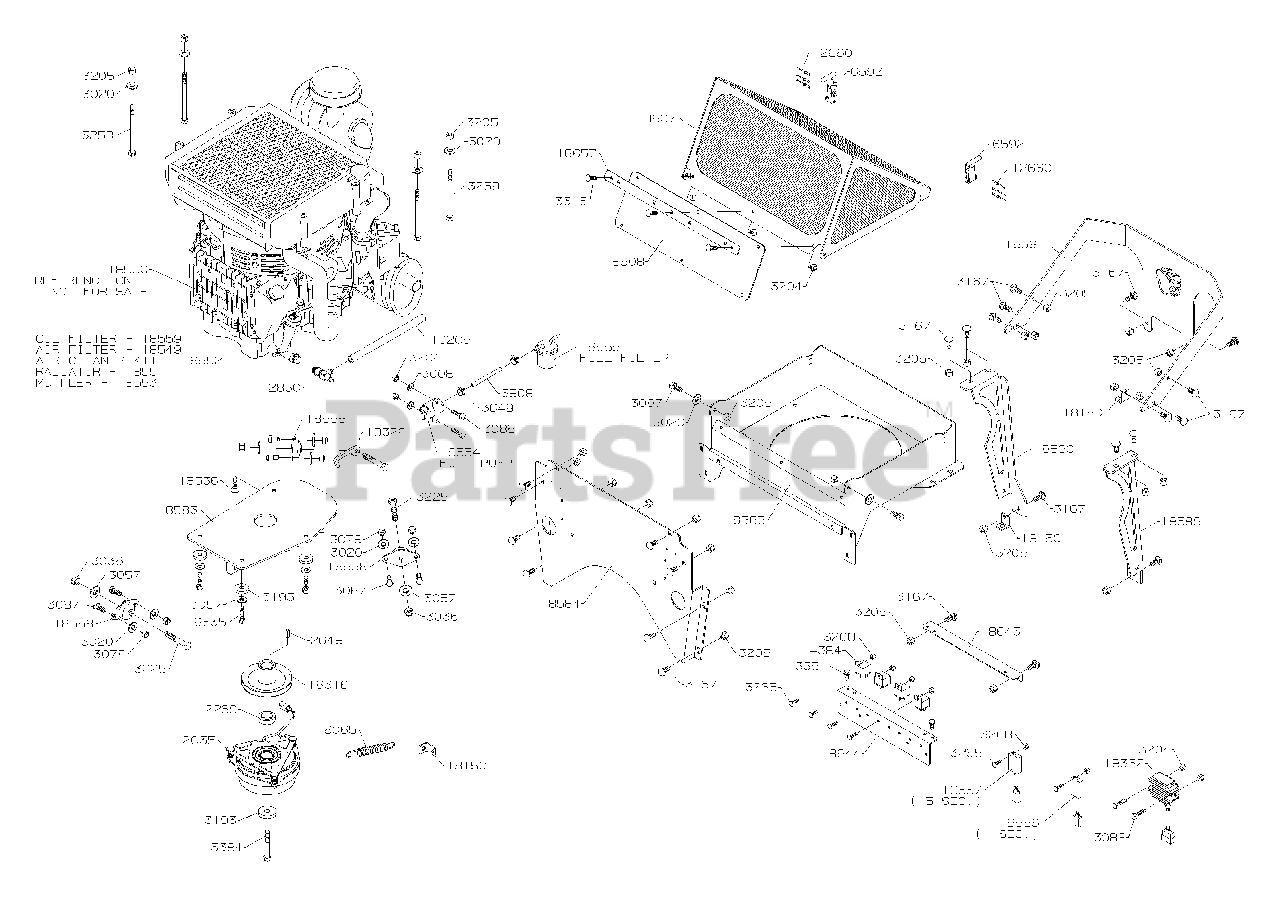

ENGINE RELATED PARTS Parts Diagram

  • Title

2648

2648

KEY - 1/4 X .88

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3036

Dixon 3036

3/8-16UNC HEX L-NUT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3078

3078

5/16-18UNC HEX L-NUT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$3.49

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3258

3258

5/16-18X4-1/2 HHB GR8

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3384

Dixon 3384

M10X1.5X60 HHB GR8.8

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3808

3808

HOSE 1/4 X 5.5

$

$

Not available

4384

4384

RELAY

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6592

6592

LATCH

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

12035

12035

ELECTRIC CLUTCH

$

$

Not available

12269

12269

BUSHING

$

$

Not available

12660

12660

POP RIVET

$

$

Not available

12830

12830

ADAPTER OIL DRAIN

$

$

Not available

18150

18150

SPRING BRKT.

$

$

Not available

18316

18316

ENGINE PULLEY

$

$

Not available

18326

18326

CLUTCH ANCHOR

$

$

Not available

18332

18332

ENGINE REGULATOR

$

$

Not available

18535

18535

M10X1.5X35MM HHB

$

$

Not available

18536

18536

M10X1.5X25MM FHSCC

$

$

Not available

18549

18549

AIR FILTER

$

$

Not available

18550

18550

$

$

Not available

18551

18551

RADIATOR KIT

$

$

Not available

18552

18552

AIR CLEANER KIT

$

$

Not available

18553

18553

MUFFLER

$

$

Not available

18554

18554

FUEL PUMP

$

$

Not available

18555

18555

FUEL FILTER

$

$

Not available

18556

18556

$

$

Not available

18557

18557

15 SECOND TIMER

$

$

Not available

18558

18558

ISO MOUNT

$

$

Not available

18559

18559

OIL FILTER

$

$

Not available

18583

18583

ISO PLATE WLDT.

$

$

Not available

18584

18584

FRONT RAD. SUPPORT

$

$

Not available

18585

18585

RADIATOR SUPPORT WLDT.

$

$

Not available

18589

18589

LH REAR RAD. SUPPORT

$

$

Not available

18590

18590

RH REAR RAD. SUPPORT

$

$

Not available

18591

18591

REAR GUARD

$

$

Not available

18607

18607

COVER

$

$

Not available

18608

18608

RUBBER SEAL

$

$

Not available

18643

18643

COVER BRKT.

$

$

Not available

18644

18644

COVER

$

$

Not available

18657

18657

STRAP

$

$

Not available
