KRB 650 B (KRB650B-A1) - Kawasaki Blower AIR-FILTER/MUFFLER Parts Diagram

Blower

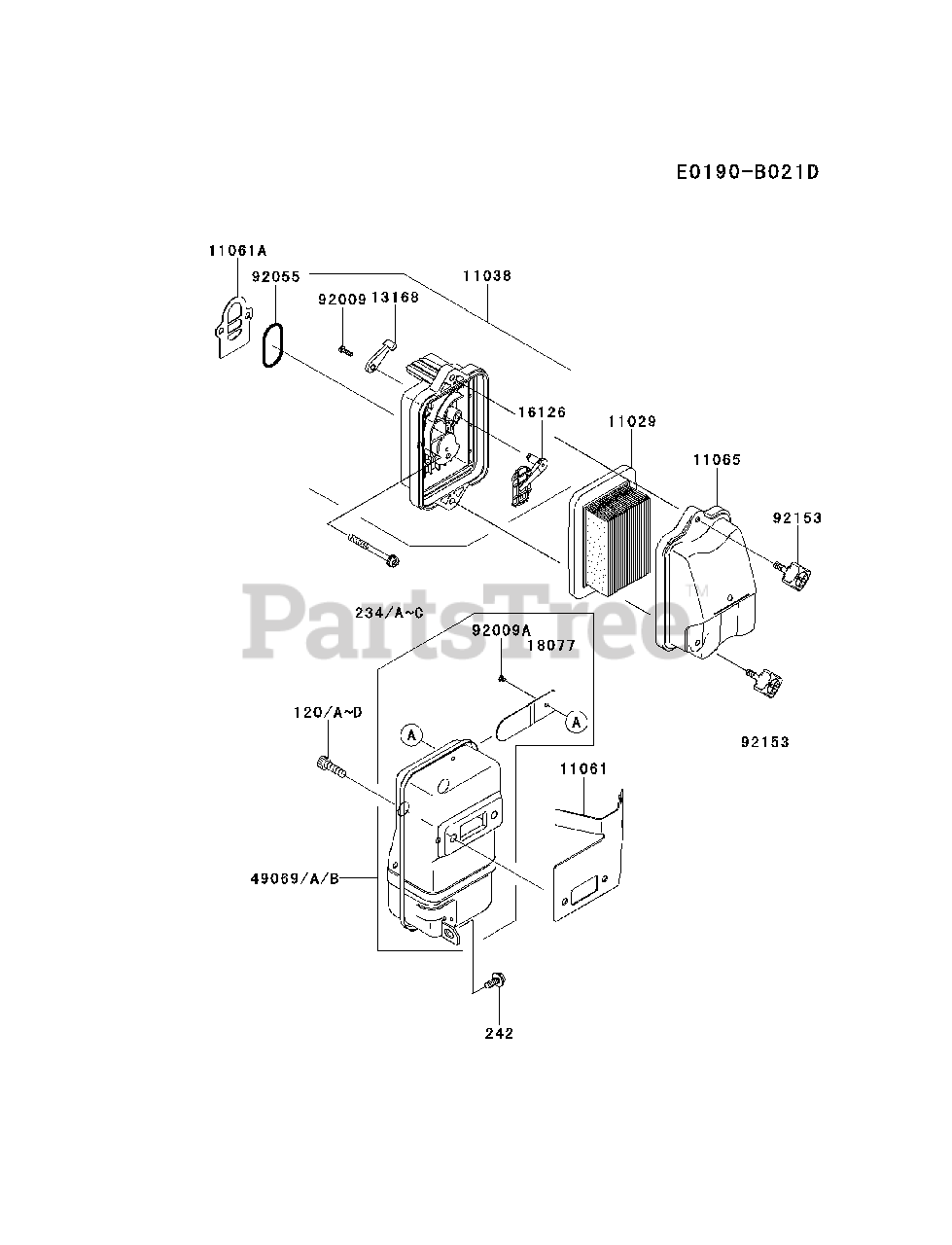

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11029

Kawasaki 11029-2022

ELEMENT-ASSY-AIR FILTER
(Superseded to 11029-2026)

$27.99

$

In Stock, only 1 left!

0

11038

Kawasaki 11038-2093

CASE-ASSY-AIR FILTER

$18.99

$

In Stock, only 1 left!

0

11061

Kawasaki 11061-2164

GASKET,MUFFLER

$9.99

$

Usually ships in 2-5 days

0

11061A

Kawasaki 11061-2167

GASKET

$4.99

$

In Stock, only 1 left!

0

11065

Kawasaki 11065-2121

CAP,AIR FILTER

$9.49

$

Usually ships in 2-5 days

0

13168

Kawasaki 13168-2493

LEVER

$3.99

$

In Stock, Qty 6

0

16126

Kawasaki 16126-2241

VALVE

$3.99

$

Usually ships in 2-5 days

0

18077

Kawasaki 18077-2134

ARRESTER-SPARK

$

$

Not available

49069A

Kawasaki 49069-2417

MUFFLER-ASSY
(Superseded to 49069-0747)

$124.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2359

SCREW,3X10

$1.49

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2411

SCREW

$0.99

$

In Stock, Qty 16

0

92055

Kawasaki 92055-2205

RING-O,ID=31.2

$0.99

$

In Stock, only 2 left!

0

92153

Kawasaki 92153-2107

BOLT,5X18
(Superseded to 92154-2054)

$5.49

$

In Stock, only 1 left!

0

120B

Kawasaki 120W0616

BOLT-SOCKET,6X16
(Superseded to 120CB0616)

$2.49

$

In Stock, only 4 left!

0

234B

Kawasaki 234B0550

SCREW-PAN-WSP+-,5X50
(Superseded to 234AA0550)

$0.99

$

In Stock, only 3 left!

0

242

Kawasaki 242AA0514

SCREW-PAN-WSP+-,5X14

$0.99

$

Usually ships in 2-5 days

0
