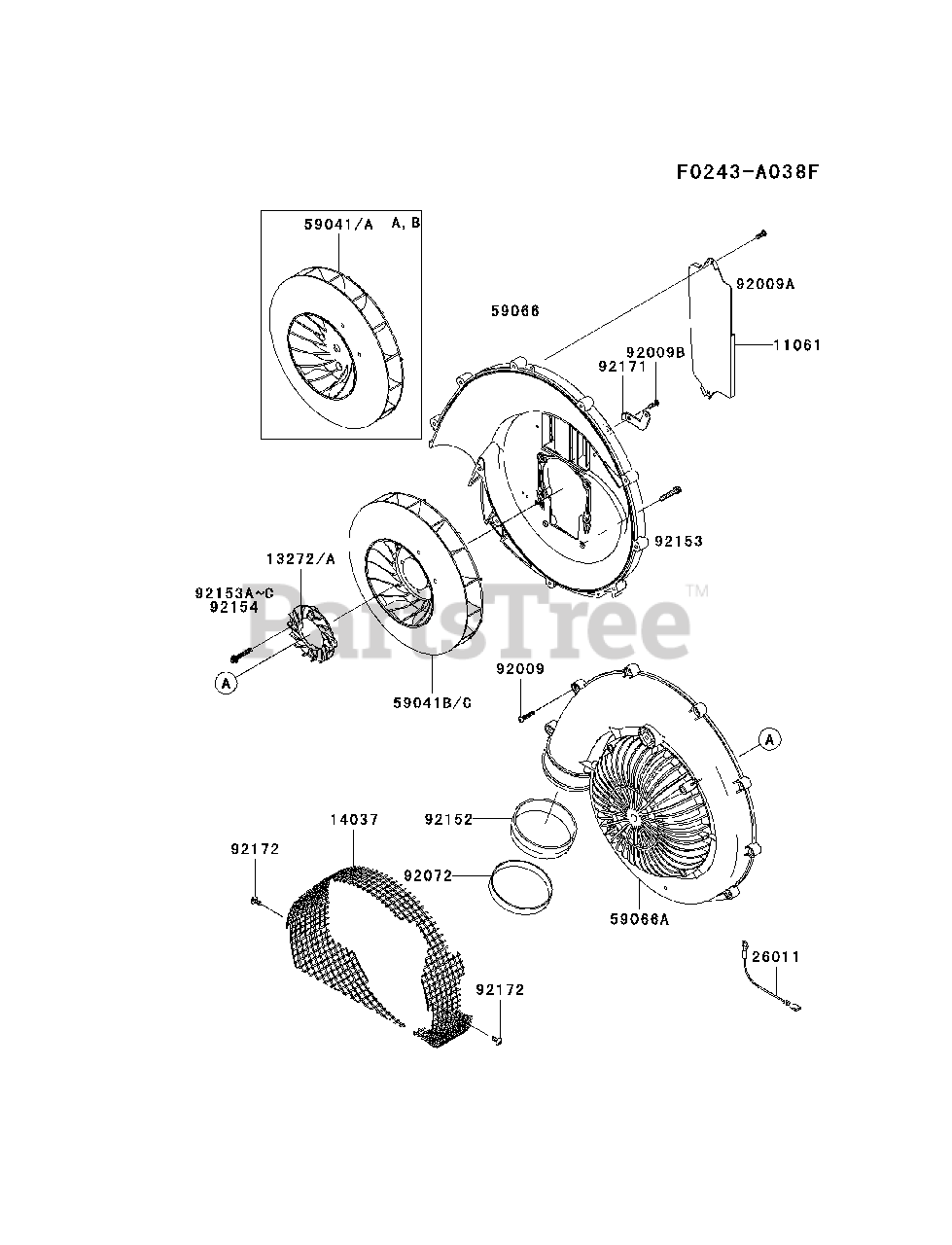

KRB 750 B (KRB750B-A2) - Kawasaki Blower HOUSING Parts Diagram

Blower

HOUSING Parts Diagram

  • Title

26011

Kawasaki 26011-2362

WIRE-LEAD

$

$

Not available

59041

Kawasaki 59041-W001

FAN
(Superseded to 99996-W002)

$

$

Not available

59066

Kawasaki 59066-W003

HOUSING-FAN,E-SIDE

$96.99

$

Usually ships in 2-5 days

0

59066A

Kawasaki 59066-W004

HOUSING-FAN,F-SIDE

$68.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-W001

SCREW,5X25

$1.49

$

In Stock, only 1 left!

0

92009A

Kawasaki 92009-W004

SCREW,5X16

$0.99

$

Usually ships in 2-5 days

0

92009B

Kawasaki 92009-W006

SCREW

$0.99

$

Usually ships in 2-5 days

0

92072

Kawasaki 92072-2130

BAND

$4.49

$

Usually ships in 2-5 days

0

92152

Kawasaki 92152-2060

COLLAR

$3.49

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-W004

BOLT,6X30

$1.49

$

Usually ships in 2-5 days

0

92153A

Kawasaki 92153-W005

BOLT,5X35
(Superseded to 92153-W010)

Note: Substitute part, supplied until the stock is exhausted.

$3.49

$

In Stock, only 4 left!

0

92153C

Kawasaki 92153-W010

BOLT,5X35

$3.49

$

In Stock, only 4 left!

0

92171

Kawasaki 92171-W004

CLAMP

$7.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-W001

GASKET

$25.99

$

Usually ships in 2-5 days

0
