KS 614 - Poulan Pro Chainsaw POWER UNIT Parts Diagram

Chainsaw

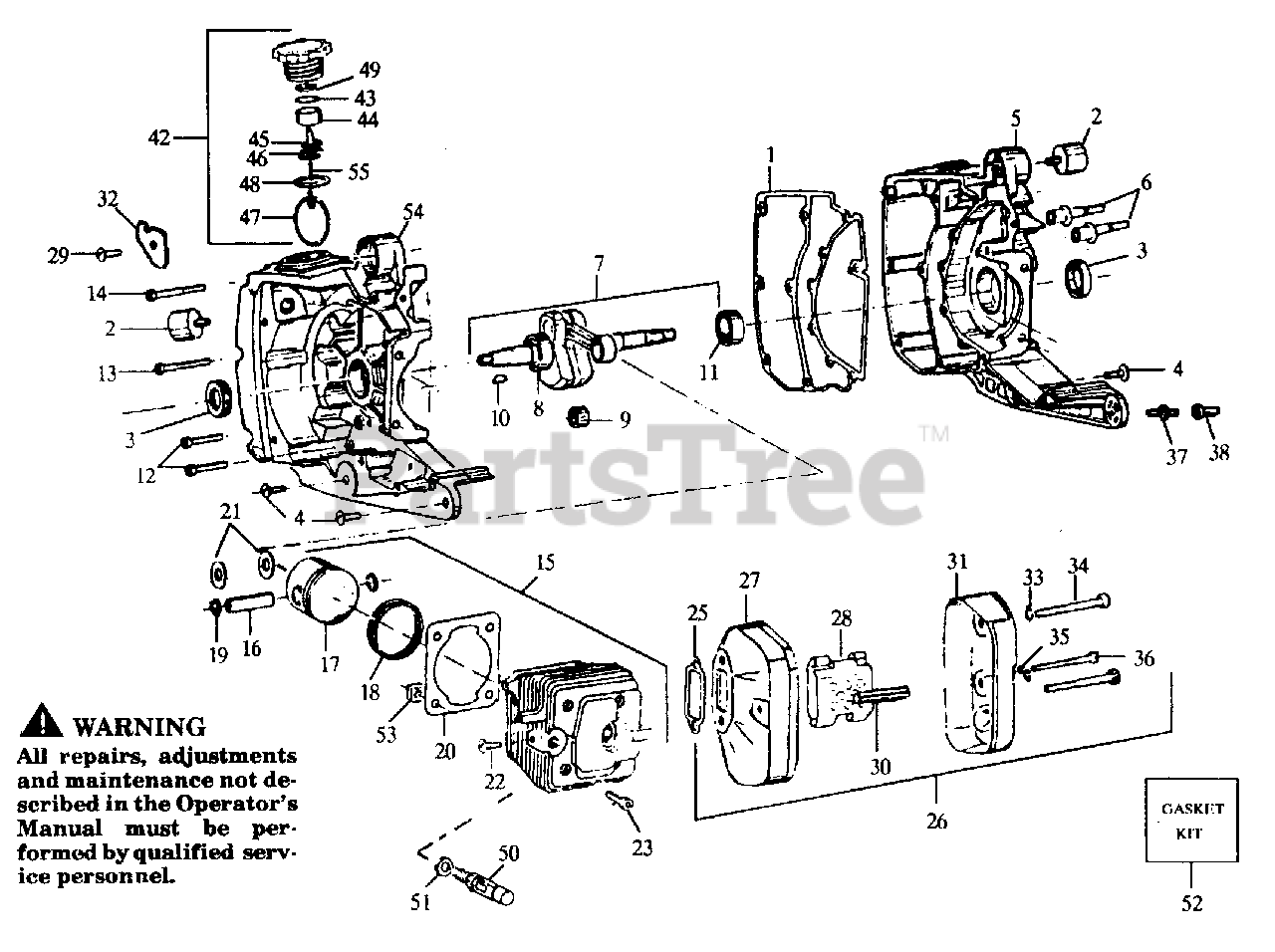

POWER UNIT Parts Diagram

  • Title

1

Poulan 507430573

Crankcase Gasket

$

$

Not available

2

Poulan 507432753

Shock Absorber

$

$

Not available

3

Poulan 507428746

Seal

$

$

Not available

4

Poulan 507432634

Screw

$

$

Not available

5

Poulan 5074766571

C'Case & Stud Ass'y.

$201.99

$

Usually ships in 3-10 days

0

6

Poulan 507433228

Bar Mounting Studs

$

$

Not available

7

Poulan 507476528

Crankshaft Ass'y.

$

$

Not available

8

Poulan 507433355

Main Bearing

$

$

Not available

9

Poulan 507431408

Bearing

$18.99

$

Usually ships in 3-10 days

0

10

Poulan 507432210

Flywheel Key

$

$

Not available

11

Poulan 507433508

Bearing

$

$

Not available

12

Poulan 507431650

Screw

$1.49

$

Usually ships in 3-10 days

0

13

Poulan 507431690

Screw

$

$

Not available

14

Poulan 507431658

Screw

$3.99

$

In Stock, only 1 left!

0

15

Poulan 507476630

Cylinder & Piston Kit

$

$

Not available

16

Poulan 507433753

Wrist Pin

$

$

Not available

17

Poulan 507476622

Piston

$

$

Not available

18

Poulan 507476624

Piston/Ring Set

$42.99

$

Usually ships in 3-10 days

0

19

Poulan 507433756

Wrist Pin Retainer

$

$

Not available

20

Poulan 507433226

Cylinder Base Gasket

$

$

Not available

21

Poulan 507433689

Thrust Washer

$

$

Not available

22

Poulan 507431675

Plate Screw

$1.49

$

Usually ships in 3-10 days

0

23

Poulan 507431691

Screw

$

$

Not available

25

Poulan 507430684

Muffler Gasket

$

$

Not available

26

Poulan 507476695

Muffler Ass'y.

$

$

Not available

27

Poulan 5074764288

Muffler Body

$

$

Not available

28

Poulan 507433096

Muffler Channel

$6.49

$

In Stock, only 1 left!

0

29

Poulan 507433611

Screw

$

$

Not available

30

Poulan 507430835

Spacer

$

$

Not available

31

Poulan 5074760078

Muffler Cover

$

$

Not available

32

Poulan 507433488

Washer

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 507431686

Lockwasher

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 507430992

Muffler Screw

$

$

Not available

35

Poulan 507431683

Lockwasher

$1.49

$

Usually ships in 3-10 days

0

36

Poulan 507430993

Screw

$

$

Not available

37

Poulan 507433041

Clutch Cover Stud

$

$

Not available

38

Poulan 507433042

Clutch Cover Bushing

$

$

Not available

42

Poulan 507475167

Gas Cap Ass'y.

$

$

Not available

43

Poulan 507427273

Gasket

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 507431003

Spacer

$

$

Not available

45

Poulan 507431702

Umbrella Valve

$

$

Not available

46

Poulan 507427278

Gas Cap Cover

$

$

Not available

47

Poulan 507431368

Gas Cap Retainer

$

$

Not available

48

Poulan 507429946

Gas Cap O-Ring

$

$

Not available

49

Poulan 507427993

Disc

$

$

Not available

50

Poulan 50747535618

Decompression Valve

$

$

Not available

51

Poulan 507432302

Washer

$3.99

$

In Stock, only 1 left!

0

52

Poulan 507475492

Gasket Set

$

$

Not available

53

Poulan 507431655

Nut

$

$

Not available

54

Poulan 5074332271

Crankcase Half M/S

$100.99

$

Usually ships in 3-10 days

0

55

Poulan 507431370

Bead Chain Gas Cap

$

$

Not available
