KTF 27 A (KTF27A-A2) - Kawasaki String Trimmer STARTER Parts Diagram

String Trimmer

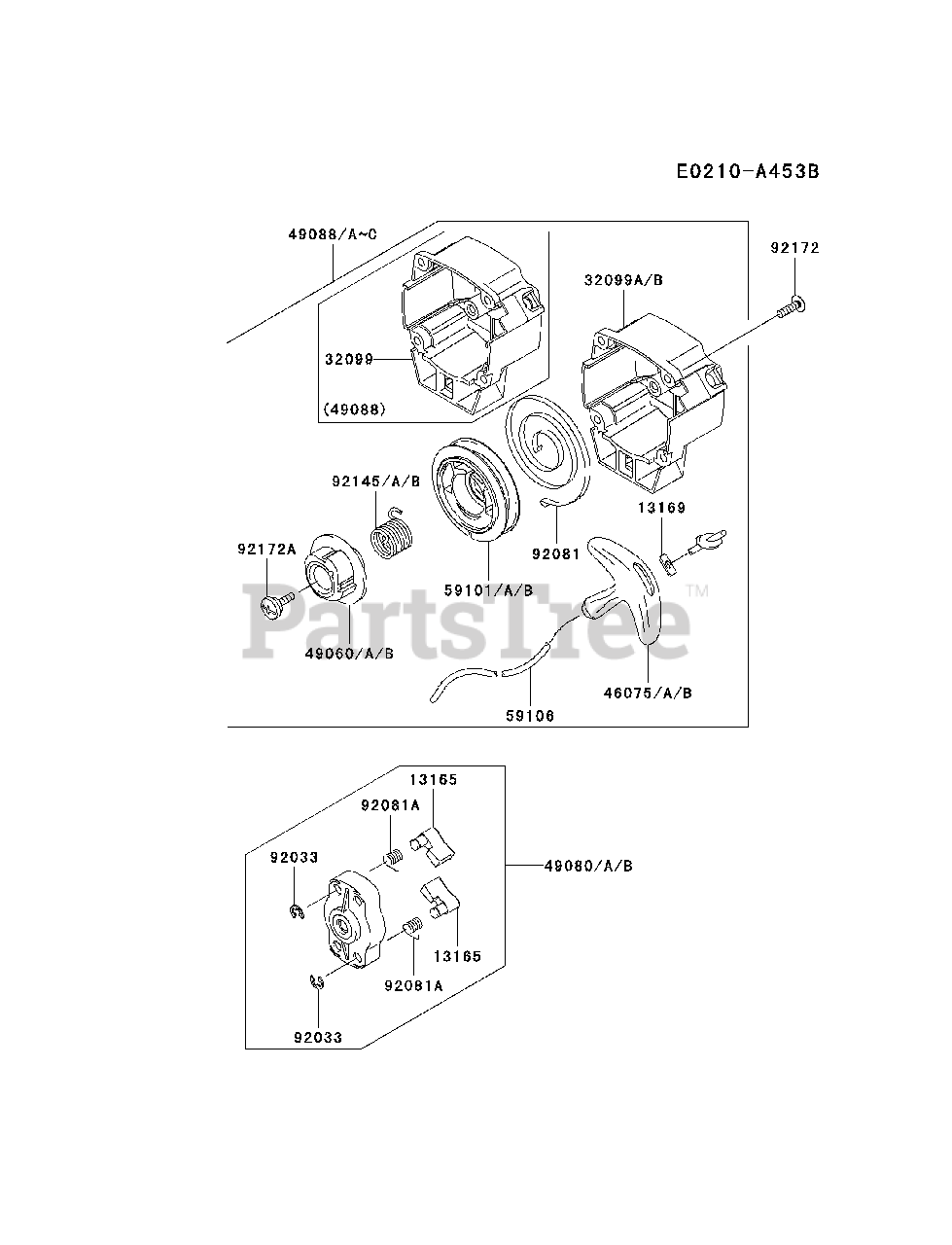

STARTER Parts Diagram

  • Title

13165

Kawasaki 13165-2100

PAWL

$3.49

$

Usually ships in 2-5 days

0

13169

Kawasaki 131692386

PLATE,RECOIL STARTER

$2.49

$

Usually ships in 2-5 days

0

32099A

Kawasaki 32099-2417

CASE,STARTER-RECOIL
(Superseded to 32099-2432)

$43.99

$

Usually ships in 2-5 days

0

46075A

Kawasaki 46075-2161

GRIP,STARTER-RECOIL
(Superseded to 46075-2159)

$9.49

$

Usually ships in 2-5 days

0

49060A

Kawasaki 49060-2066

CAM,STARTER-RECOIL
(Superseded to 49060-2064)

$13.99

$

In Stock, Qty 5

0

49080

Kawasaki 49080-2195

PULLEY-STARTING
(Superseded to 49080-2215)

$15.99

$

In Stock, only 2 left!

0

49088B

Kawasaki 49088-2586

STARTER-RECOIL
(Superseded to 49088-2587)

$

$

Not available

59101A

Kawasaki 59101-2126

REEL,STARTER-RECOIL
(Superseded to 59101-2125)

$12.99

$

In Stock, only 1 left!

0

59106

Kawasaki 591062168

ROPE,3X700

$10.99

$

In Stock, only 1 left!

0

92033

Kawasaki 920332010

RING-SNAP

$0.99

$

In Stock, Qty 6

0

92081

Kawasaki 92081-2238

SPRING,RECOIL

$25.99

$

In Stock, only 2 left!

0

92081A

Kawasaki 920812253

SPRING

$11.99

$

In Stock, only 2 left!

0

92145

Kawasaki 92145-2128

SPRING,RECOIL

$8.99

$

In Stock, Qty 20+

0

92172

Kawasaki 92172-2061

SCREW,4X14

$0.99

$

In Stock, Qty 20+

0

92172A

Kawasaki 921722065

SCREW

$3.49

$

In Stock, only 2 left!

0
