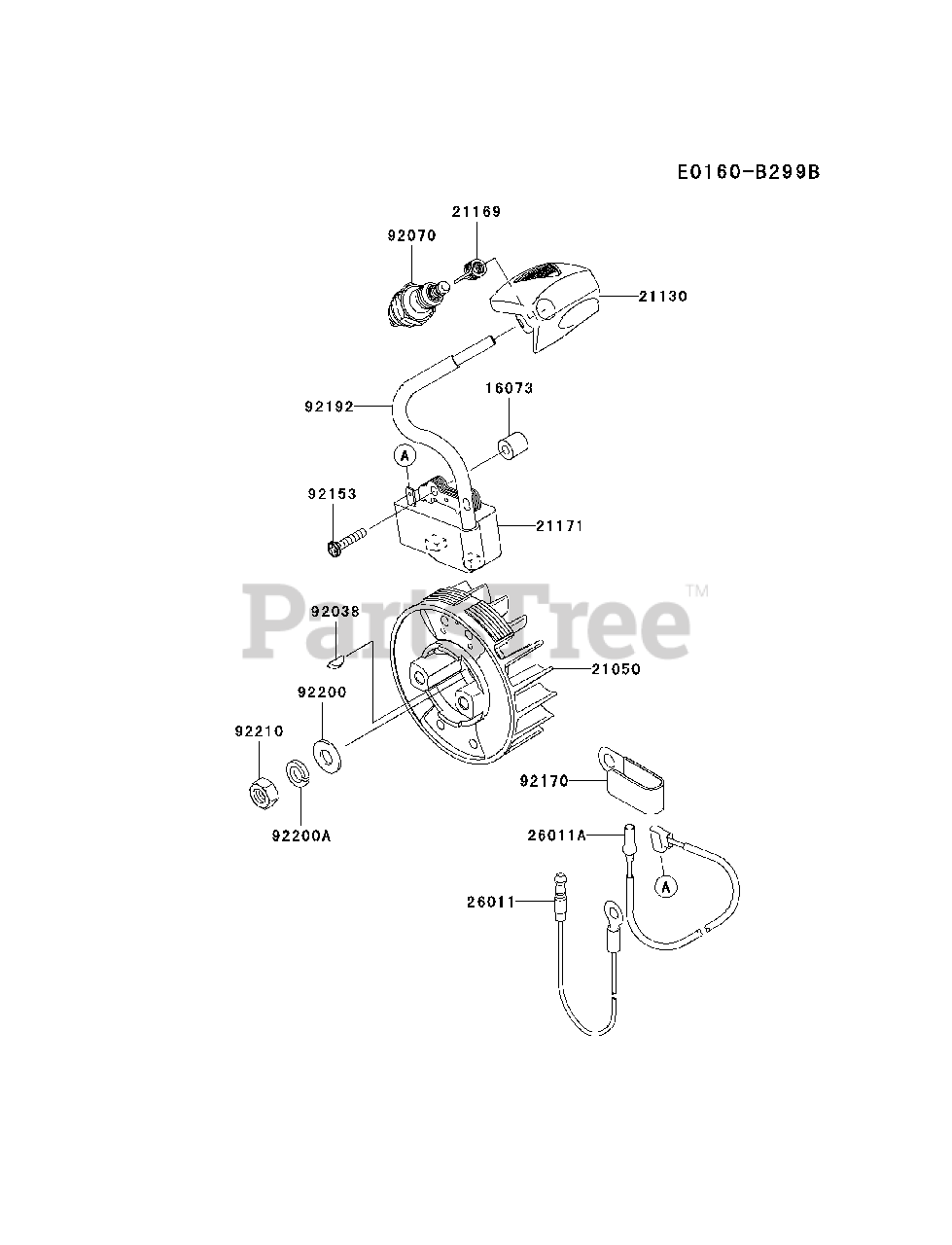

KTF 27 A (KTF27A-A3) - Kawasaki String Trimmer ELECTRIC-EQUIPMENT Parts Diagram

String Trimmer

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

16073

Kawasaki 16073-2239

INSULATOR

$2.49

$

Usually ships in 2-5 days

0

21050

Kawasaki 21050-2320

FLYWHEEL

$176.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-2076

CAP-SPARK PLUG
(Superseded to 21130-2071)

$5.99

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2076

TERMINAL
(Superseded to 21169-2075)

$1.49

$

In Stock, Qty 11

0

21171

Kawasaki 21171-2259

COIL-ASSY-IGNITION
(Superseded to 21171-2256)

$

$

Not available

26011

Kawasaki 26011-2113

WIRE-LEAD

$2.99

$

In Stock, only 1 left!

0

26011A

Kawasaki 26011-2388

WIRE-LEAD,L=230

$

$

Not available

92038

Kawasaki 92038-2106

KEY

$7.99

$

In Stock, only 4 left!

0

92070

Kawasaki 92070-2107

PLUG-SPARK,BPMR7A,SOLID
(Superseded to BPMR7A)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-2138

BOLT,4X20

$1.99

$

In Stock, only 4 left!

0

92170

Kawasaki 92170-2041

CLAMP

$

$

Not available

92192

Kawasaki 92192-2196

TUBE
(Superseded to 92192-2135)

$15.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2186

WASHER,8.2X17.5X1.5

$1.99

$

Usually ships in 2-5 days

0

92200A

Kawasaki 92200-2187

WASHER,SPRING,8MM

$2.49

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-2127

NUT,8MM

$0.99

$

In Stock, only 4 left!

0
