KTFR 27 A (KTFR27A-A4) - Kawasaki String Trimmer AIR-FILTER/MUFFLER Parts Diagram

String Trimmer

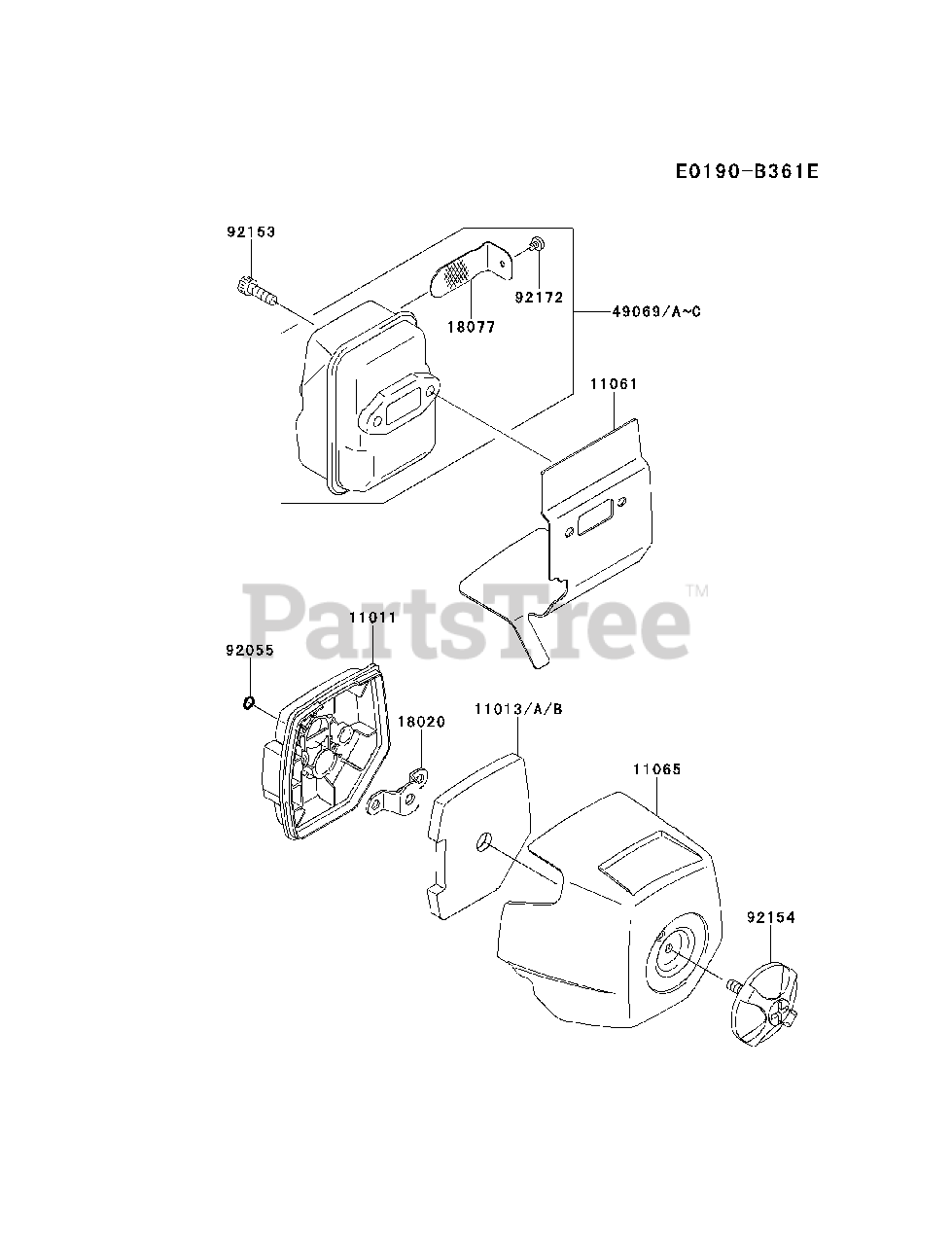

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-2392

CASE-AIR FILTER

$22.99

$

In Stock, only 1 left!

0

11013A

Kawasaki 11013-2228

ELEMENT-AIR FILTER
(Superseded to 11013-2245)

Note: Substitute part, supplied until the stock is exhausted.

$12.99

$

In Stock, Qty 20+

0

11013B

Kawasaki 11013-2245

ELEMENT-AIR FILTER

$12.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-2204

GASKET,MUFFLER

$22.99

$

In Stock, only 1 left!

0

11065

Kawasaki 11065-2143

CAP

$18.99

$

In Stock, only 3 left!

0

18020

Kawasaki 18020-2096

BAFFLE

$4.49

$

In Stock, only 1 left!

0

18077

Kawasaki 18077-2140

ARRESTER-SPARK

$21.99

$

In Stock, only 1 left!

0

49069A

Kawasaki 49069-0023

MUFFLER-ASSY
(Superseded to 49069-0784)

$136.99

$

Usually ships in 2-5 days

0

49069C

Kawasaki 49069-0728

MUFFLER-ASSY
(Superseded to 49069-0023)

Note: Substitute part, supplied until the stock is exhausted.

$136.99

$

Usually ships in 2-5 days

0

92055

Kawasaki 92055-2221

RING-O,4.8MM

$5.99

$

In Stock, only 3 left!

0

92153

Kawasaki 92153-2137

BOLT,SOCKET,5X16

$0.99

$

In Stock, only 1 left!

0

92154

Kawasaki 92154-2053

BOLT

$8.99

$

In Stock, Qty 11

0

92172

Kawasaki 921722112

SCREW

$1.49

$

In Stock, Qty 6

0
