KTFR 27 A (KTFR27A-A4) - Kawasaki String Trimmer CASE/CUTTER Parts Diagram

String Trimmer

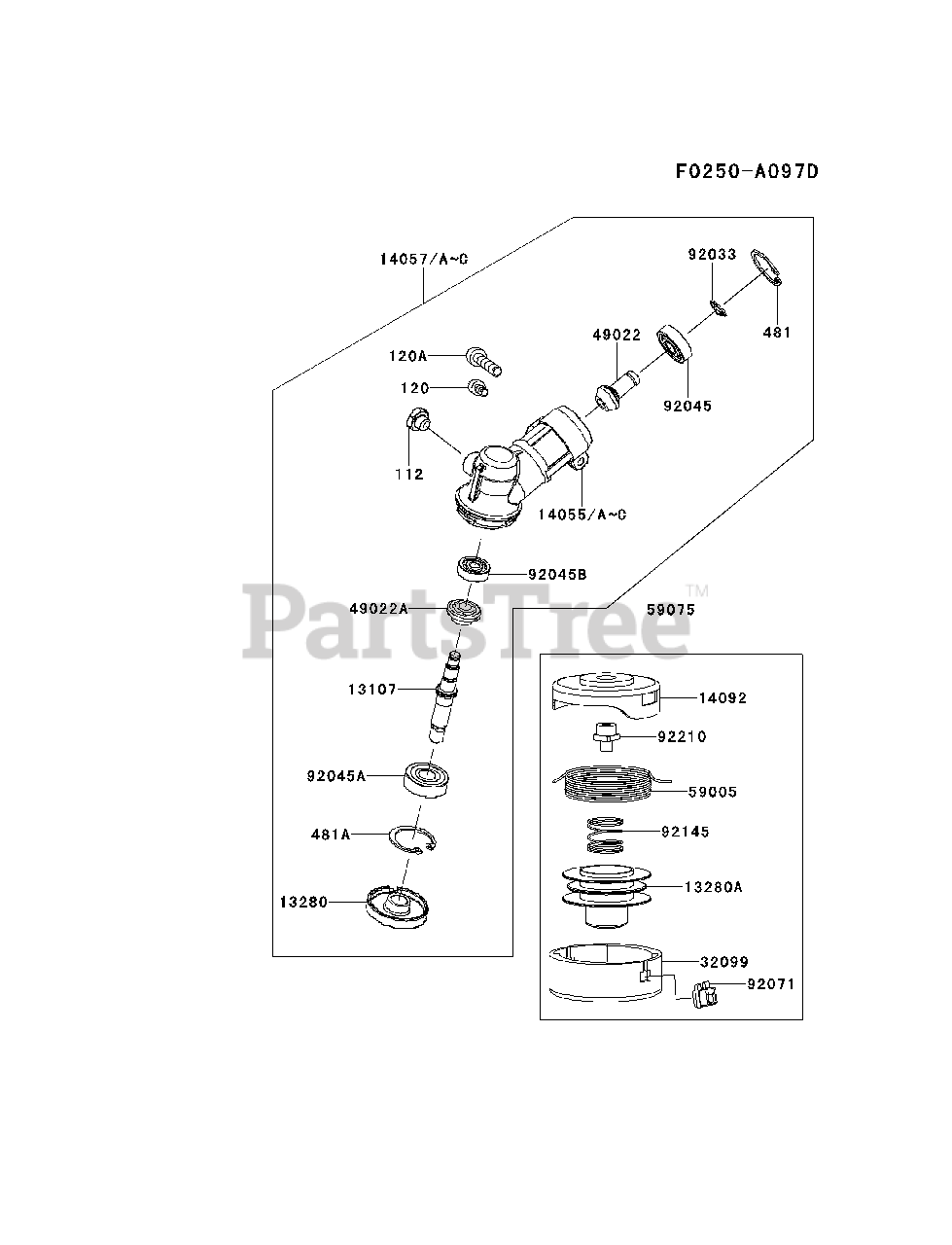

CASE/CUTTER Parts Diagram

  • Title

14057C

Kawasaki 14057-R012

CASE-COMP-GEAR

$234.99

$

Usually ships in 2-5 days

0

14092

Kawasaki 14092-R001

COVER

$25.99

$

In Stock, only 2 left!

0

32099

Kawasaki 32099-R001

CASE

$27.99

$

In Stock, only 2 left!

0

49022

Kawasaki 49022-R011

GEAR-BEVEL

$46.99

$

Usually ships in 2-5 days

0

49022A

Kawasaki 49022-R012

GEAR-BEVEL

$43.99

$

Usually ships in 2-5 days

0

59005

Kawasaki 59005-R001

STRING

$12.99

$

In Stock, only 1 left!

0

59075

Kawasaki 59075-R001

CUTTER-CORD

$64.99

$

In Stock, Qty 5

0

92033

Kawasaki 92033-R001

RING-SNAP,DIA=9

$6.49

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-X004

BEARING-BALL,609Z

$24.99

$

Usually ships in 2-5 days

0

92045A

Kawasaki 920452191

BEARING-BALL,6001DDUC3

$17.99

$

In Stock, only 1 left!

0

92045B

Kawasaki 920452237

BEARING-BALL,608Z

$15.99

$

Usually ships in 2-5 days

0

92071

Kawasaki 92071-R001

GROMMET,EYELET

$9.49

$

In Stock, only 3 left!

0

92145

Kawasaki 92145-R002

SPRING

$4.49

$

In Stock, only 3 left!

0

92210

Kawasaki 92210-R003

NUT

$16.99

$

In Stock, only 2 left!

0

112

Kawasaki 112AA0608

BOLT-UPSET,6X8

$0.99

$

In Stock, only 3 left!

0

120

Kawasaki 120CB0510

BOLT-SOCKET,5X10
(Superseded to 120S0510)

$

$

Not available

120A

Kawasaki 120CB0525

BOLT-SOCKET,5X25
(Superseded to 120W0525)

$1.49

$

In Stock, Qty 9

0

481

Kawasaki 481J2400

CIRCLIP,24MM

$3.99

$

Usually ships in 2-5 days

0

481A

Kawasaki 481J2800

CIRCLIP,28MM
(Superseded to 44044-002)

$1.99

$

In Stock, only 1 left!

0

13107

Kawasaki 13107-R001

SHAFT,GEAR

$63.99

$

Usually ships in 2-5 days

0

13280

Kawasaki 13280-R001

HOLDER,UPP

$20.99

$

Usually ships in 2-5 days

0

13280A

Kawasaki 13280-R002

HOLDER

$22.99

$

In Stock, Qty 12

0

14055A

Kawasaki 14055-R001

CASE-GEAR

Note: Substitute part, supplied until the stock is exhausted.

$60.99

$

Usually ships in 2-5 days

0

14055C

Kawasaki 14055-R008

CASE-GEAR

$64.99

$

Usually ships in 2-5 days

0

14057A

Kawasaki 14057-R010

CASE-COMP-GEAR

Note: Substitute part, supplied until the stock is exhausted.

$193.99

$

Usually ships in 2-5 days

0
