KTR 27 A (KTR27A-A4) - Kawasaki String Trimmer STARTER Parts Diagram

String Trimmer

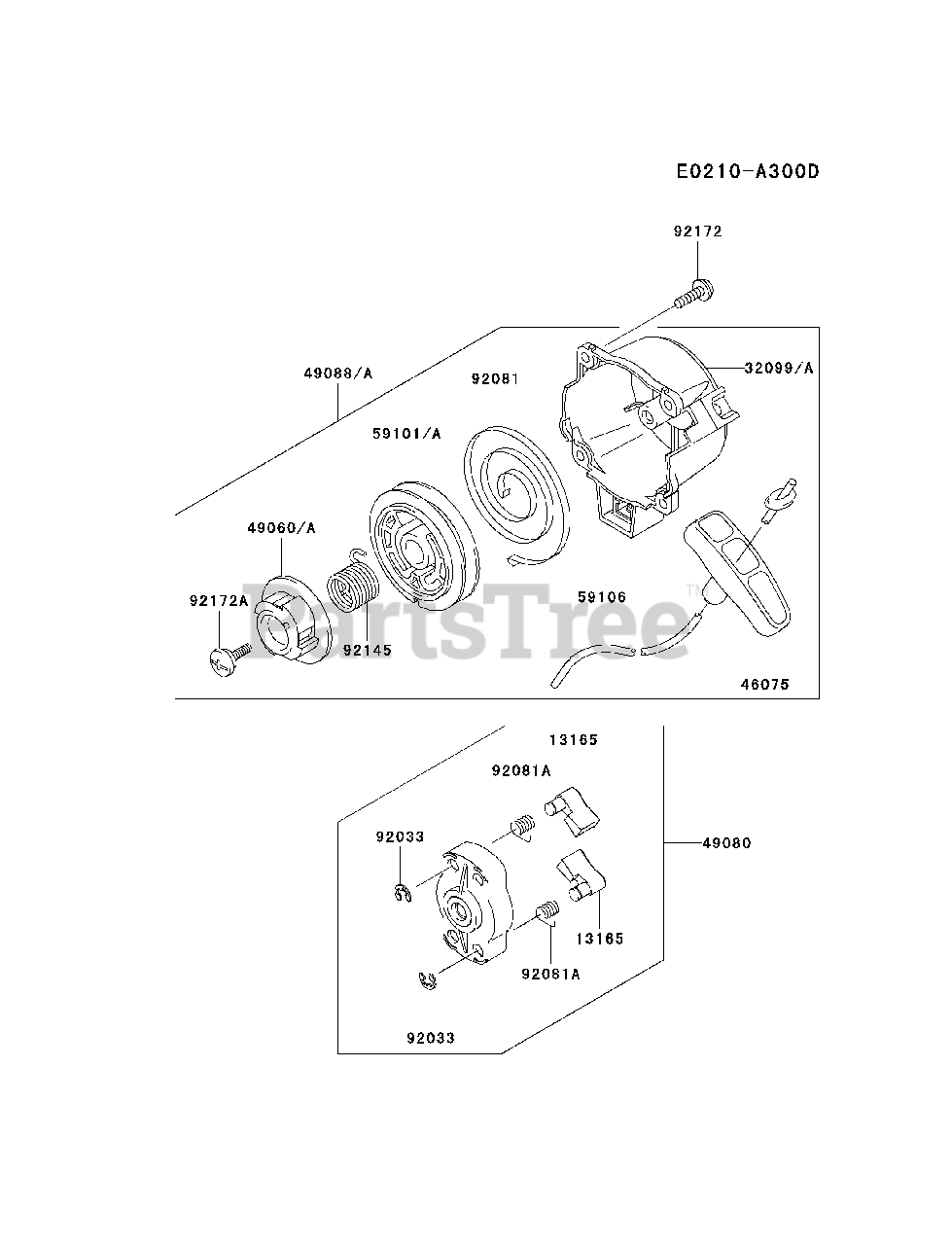

STARTER Parts Diagram

  • Title

13165

Kawasaki 13165-2100

PAWL

$3.49

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2408

CASE,STARTER-RECOIL

$33.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-2148

GRIP,STARTER-RECOIL

$6.49

$

Usually ships in 2-5 days

0

49060A

Kawasaki 49060-2066

CAM,STARTER-RECOIL
(Superseded to 49060-2064)

$12.99

$

In Stock, only 1 left!

0

49080

Kawasaki 49080-2195

PULLEY-STARTING
(Superseded to 49080-2215)

$14.99

$

In Stock, Qty 7

0

49088A

Kawasaki 49088-2560

STARTER-RECOIL
(Superseded to 49088-2530)

$42.99

$

In Stock, Qty 9

0

59101A

Kawasaki 59101-2126

REEL,STARTER-RECOIL
(Superseded to 59101-2125)

$11.99

$

In Stock, only 1 left!

0

59106

Kawasaki 59106-2168

ROPE,3X700

$10.99

$

In Stock, only 1 left!

0

92033

Kawasaki 92033-2010

RING-SNAP

$0.99

$

In Stock, Qty 8

0

92081

Kawasaki 92081-2238

SPRING,RECOIL

$20.99

$

In Stock, only 1 left!

0

92081A

Kawasaki 92081-2253

SPRING

$10.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-2128

SPRING,RECOIL

$6.99

$

In Stock, only 2 left!

0

92172

Kawasaki 92172-2061

SCREW,4X14

$0.99

$

In Stock, Qty 13

0

92172A

Kawasaki 92172-2065

SCREW

$2.99

$

In Stock, Qty 7

0
