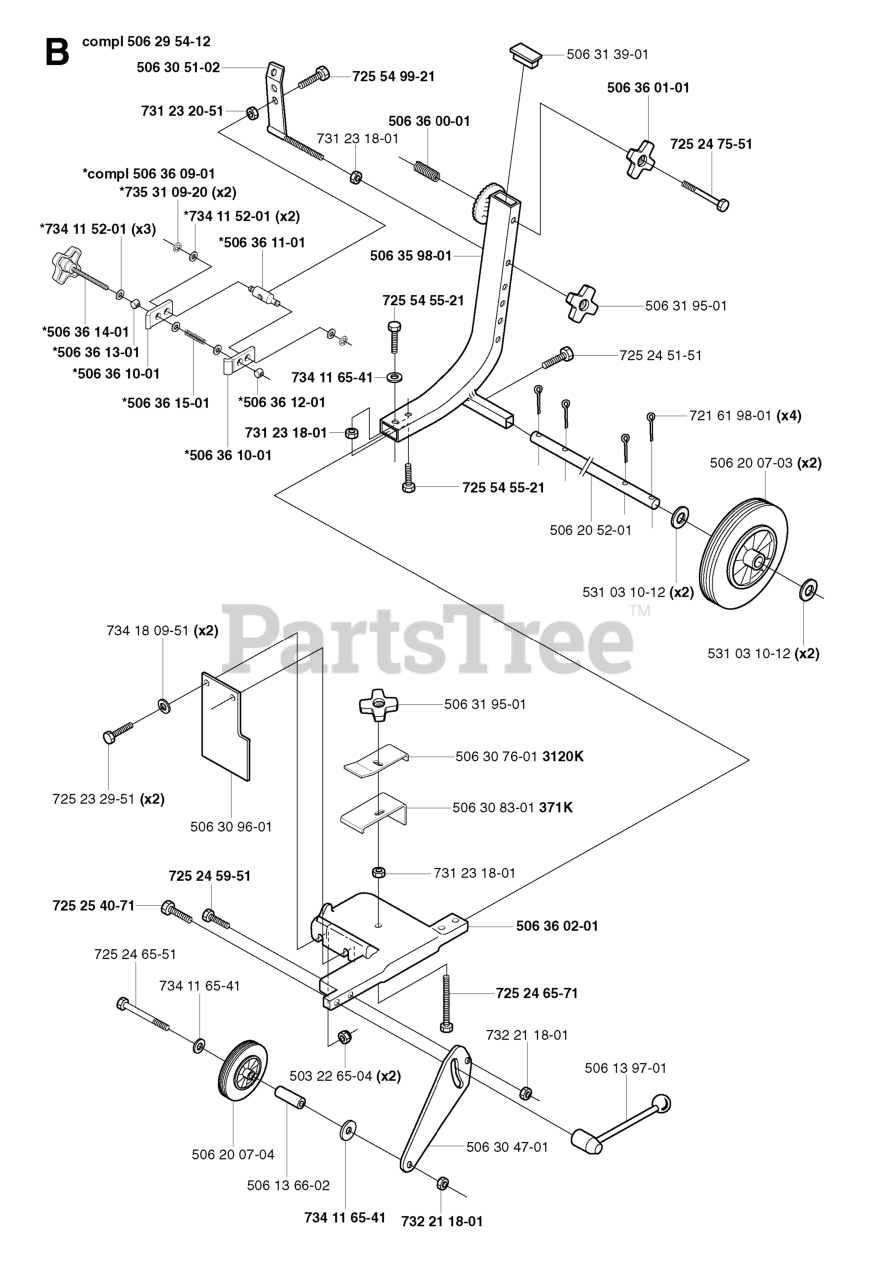

KV 03 - Husqvarna Cutting Trolley (2002-08) FRAME Parts Diagram

Cutting Trolley

FRAME Parts Diagram

  • Title

734 11 65-41

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

506 36 01-01

Husqvarna 506360101

STEERING WHEEL

$

$

Not available

506 36 11-01

Husqvarna 506361101

HOLDER

$16.14

$

Usually ships in 3-10 days

0

506 30 51-02

Husqvarna 506305102

BRACKET

$47.99

$

Usually ships in 3-10 days

0

506 36 02-01

Husqvarna 506360201

COUNTERWEIGHT

$

$

Not available

506 20 07-04

Husqvarna 506200704

WHEEL

$10.37

$

Usually ships in 3-10 days

0

506 30 76-01

Husqvarna 506307601

PLATE

Note: 3120K

$22.99

$

Usually ships in 3-10 days

0

506 36 14-01

Husqvarna 506361401

STEERING WHEEL

$6.91

$

Usually ships in 3-10 days

0

725 54 55-21

Husqvarna 725545521

SCREW M6S 8X30 FZB

$

$

Not available

731 23 18-01

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

725 23 29-51

Husqvarna 725232951

Slotted Truss Head Screw #10-32 x 5/8"

$

$

Not available

734 11 52-01

Husqvarna 734115201

WASHER - M6

$4.99

$

In Stock, Qty 13

0

506 36 10-01

Husqvarna 506361001

PAWL

$11.17

$

Usually ships in 3-10 days

0

506 30 83-01

Husqvarna 506308301

PLATE

Note: 371K

$

$

Not available

506 20 07-03

Husqvarna 506200703

WHEEL

$41.99

$

Usually ships in 3-10 days

0

506 36 15-01

Husqvarna 506361501

SPRING

$3.49

$

Usually ships in 3-10 days

0

506 13 97-01

Husqvarna 506139701

Lock Handle

$39.99

$

Usually ships in 3-10 days

0

506 13 66-02

Husqvarna 506136602

SPACING SLEEVE

$17.99

$

Usually ships in 3-10 days

0

506 31 95-01

Husqvarna 506319501

KNOB

$9.22

$

Usually ships in 3-10 days

0

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

725 25 40-71

Husqvarna 725254071

SCREW

$8.07

$

Usually ships in 3-10 days

0

734 11 52-01

Husqvarna 734115201

WASHER - M6

$4.99

$

In Stock, Qty 13

0

506 36 00-01

Husqvarna 506360001

COMPRESSION SPRING

$

$

Not available

725 24 59-51

Husqvarna 725245951

SCREW

$7.99

$

In Stock, only 1 left!

0

506 36 12-01

Husqvarna 506361201

NUT

$10.37

$

Usually ships in 3-10 days

0

503 22 65-04

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 20+

0

506 35 98-01

Husqvarna 506359801

FRAME WELDMENT

$

$

Not available

506 36 13-01

Husqvarna 506361301

NUT

$10.05

$

Usually ships in 3-10 days

0

731 23 20-51

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, Qty 13

0

506 30 96-01

Husqvarna 506309601

Splash Guard

$

$

Not available

531 03 10-12

Husqvarna 531031012

WASHER

$

$

Not available

725 24 51-51

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

506 30 47-01

Husqvarna 506304701

ARM

$64.99

$

Usually ships in 3-10 days

0

725 24 65-51

Husqvarna 725246551

SCREW M8 X 70

$

$

Not available

506 29 54-12

Husqvarna 506295412

TROLLEY CART
(Superseded to 506295404)

$553.99

$

Usually ships in 3-10 days

0

506 31 39-01

Husqvarna 506313901

Plug

$

$

Not available

725 24 65-71

Husqvarna 725246571

Screw

$

$

Not available

735 31 09-20

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

725 54 99-21

Husqvarna 725549921

SCREW
(Superseded to 725249971)

$2.49

$

Usually ships in 3-10 days

0

506 36 09-01

Husqvarna 506360901

BRACKET

$105.08

$

Usually ships in 3-10 days

0

725 24 75-51

Husqvarna 725247551

SCREW

$11.99

$

In Stock, only 1 left!

0

506 20 52-01

Husqvarna 506205201

Shaft

$

$

Not available

721 61 98-01

Husqvarna 721619801

SPLIT PIN

$2.49

$

Usually ships in 3-10 days

0

734 18 09-51

Husqvarna 734180951

WASHER

$3.99

$

Usually ships in 3-10 days

0
