KV 03 III - Husqvarna Cutting Trolley (2007-07) Page D KV03 III Mounting kit for 371K / 375K Parts Diagram

Cutting Trolley

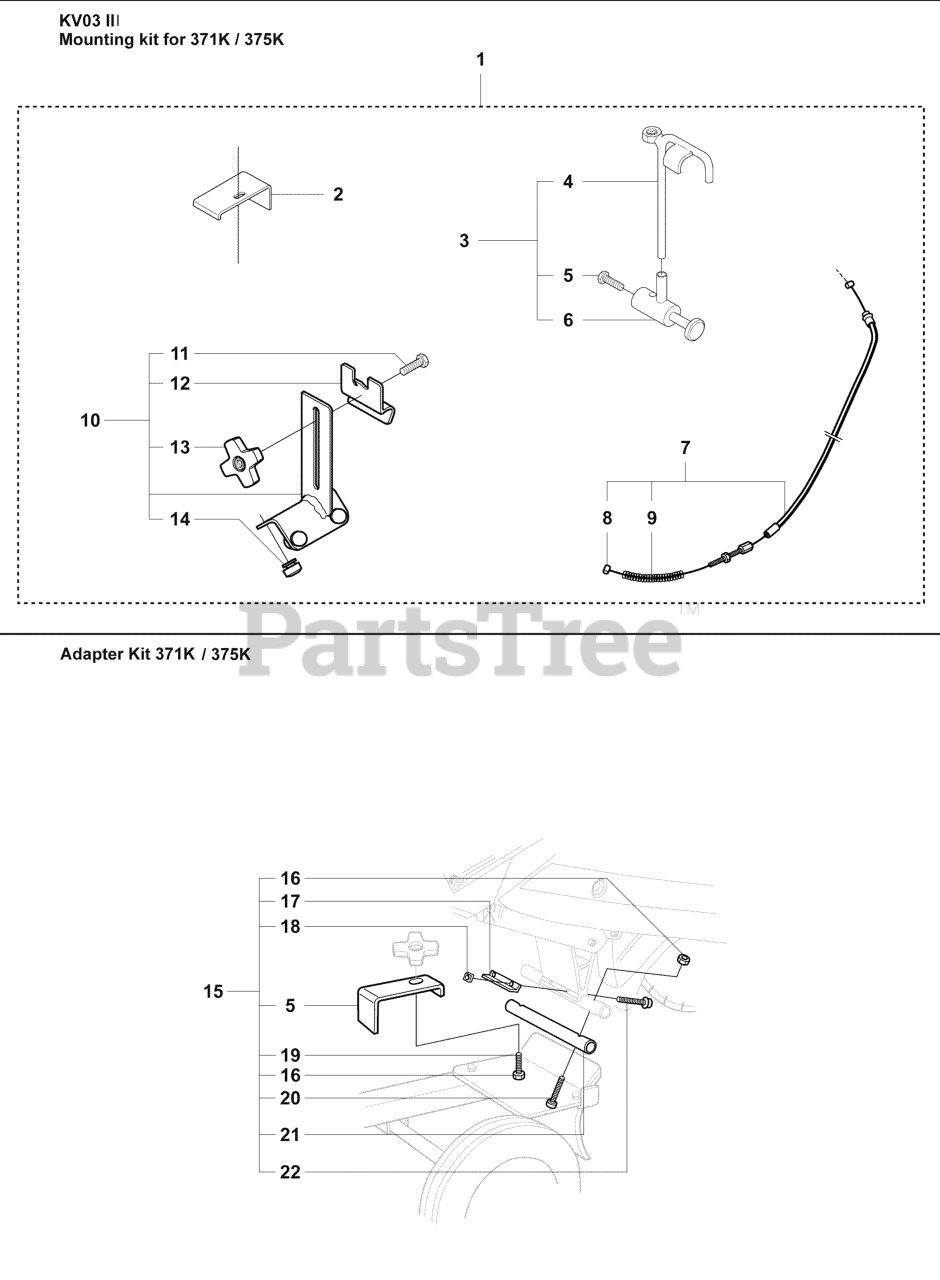

Page D KV03 III Mounting kit for 371K / 375K Parts Diagram

  • Title

1

Husqvarna 504111706

ASSEMBLY KIT
(Superseded to 504111707)

Note: Incl. 2, 3, 7, 10

$

$

Not available

2

Husqvarna 506308301

PLATE

$

$

Not available

3

Husqvarna 506362001

THROTTLE TRIGGER COMPLETE

Note: Incl. 4, 5, 6

$

$

Not available

4

Husqvarna 506362201

LOOP

$

$

Not available

5

Husqvarna 725232951

SCREW

$

$

Not available

6

Husqvarna 506362301

ARM

$

$

Not available

7

Husqvarna 506361601

CABLE ASSY.

Note: Incl. 8, 9

$

$

Not available

8

Husqvarna 506108801

CABLE RETAINER

$15.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506205502

SPRING

$

$

Not available

10

Husqvarna 506310501

HOLDER

Note: Incl. 11, 12, 13, 14

$

$

Not available

11

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

12

Husqvarna 506307001

LOOP

$27.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506319501

KNOB

$

$

Not available

14

Husqvarna 503471601

BUMPER

$10.99

$

In Stock, only 2 left!

0

15

Husqvarna 506362401

BRACKET
(Superseded to 504111707)

Note: Incl. 5, 16 - 22

$

$

Not available

16

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

17

Husqvarna 506308101

BRACKET

$

$

Not available

18

Husqvarna 732211401

LOCKNUT M5

$4.99

$

In Stock, Qty 12

0

19

Husqvarna 725246951

SCREW

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 725246351

SCREW

$5.99

$

In Stock, only 2 left!

0

21

Husqvarna 506314501

PIPE

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 725532955

SCREW MC6S 5X16

$3.99

$

In Stock, Qty 15

0
