KV 03 III - Husqvarna Cutting Trolley (2007-07) Page D KV03 III Mounting kit for 371K / 375K Parts Diagram

Cutting Trolley

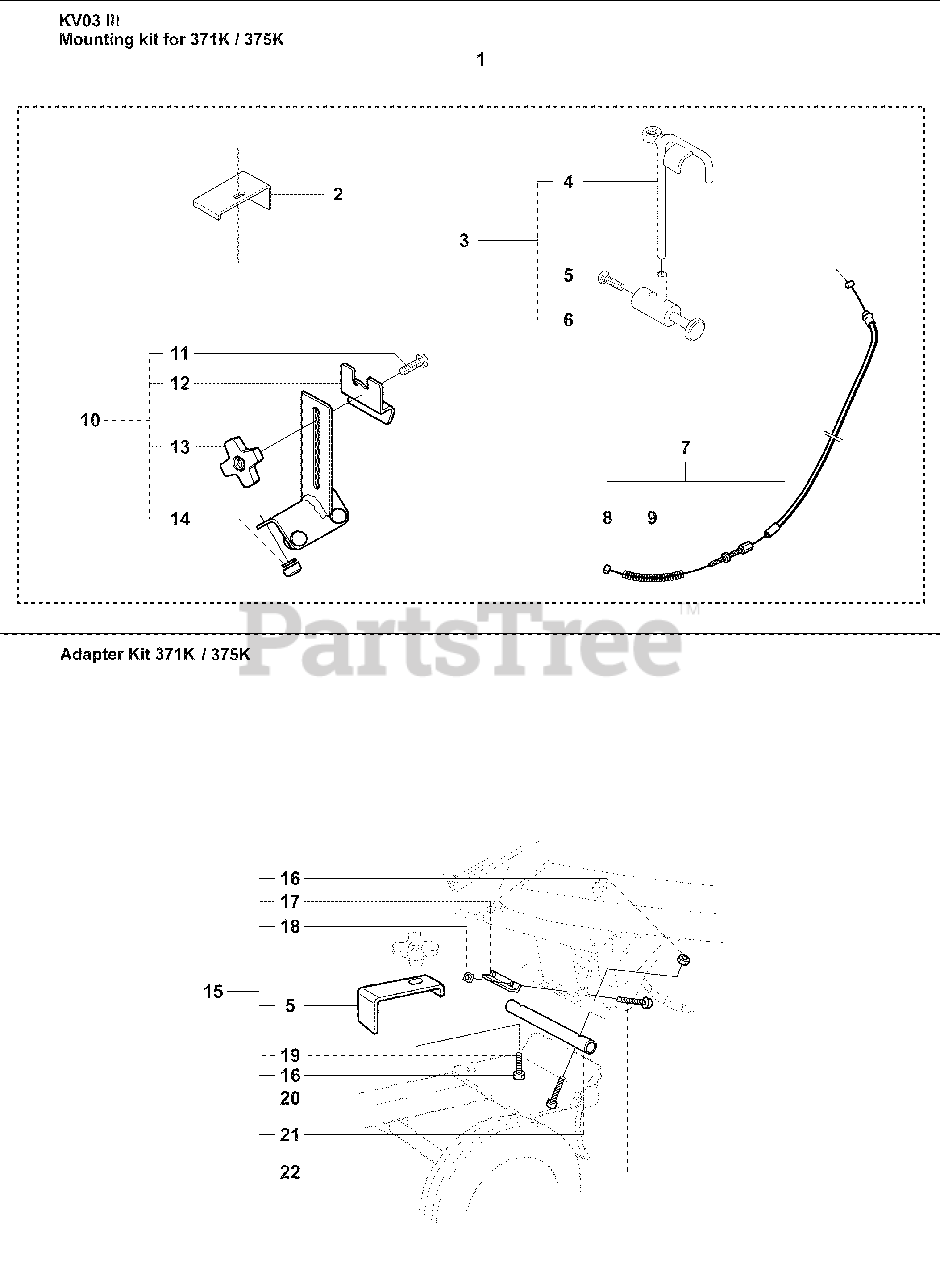

Page D KV03 III Mounting kit for 371K / 375K Parts Diagram

  • Title

1

Husqvarna 504111706

ASSEMBLY KIT
(Superseded to 504111707)

Note: Incl. 2, 3, 7, 10

$86.99

$

Usually ships in 3-10 days

0

2

Husqvarna 506308301

PRESSURE PLATE

$

$

Not available

3

Husqvarna 506362001

THROTTLE

Note: Incl. 4, 5, 6

$52.54

$

Usually ships in 3-10 days

0

4

Husqvarna 506362201

CLAMP

$17.30

$

Usually ships in 3-10 days

0

5

Husqvarna 725232951

SCREW

$

$

Not available

6

Husqvarna 506362301

LEVER

$32.30

$

Usually ships in 3-10 days

0

7

Husqvarna 506361601

THROTTLE WIRE

Note: Incl. 8, 9

$62.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506108801

CABLE RETAINER

$12.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506205502

COMPRESSION SPRING

$2.49

$

Usually ships in 3-10 days

0

10

Husqvarna 506310501

RETAINER

Note: Incl. 11, 12, 13, 14

$

$

Not available

11

Husqvarna 725245151

SCREW

$5.99

$

In Stock, only 4 left!

0

12

Husqvarna 506307001

CLAMP

$18.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506319501

STEERING WHEEL

$9.22

$

Usually ships in 3-10 days

0

14

Husqvarna 503471601

BUFFER

$10.99

$

In Stock, only 2 left!

0

15

Husqvarna 506362401

BRACKET
(Superseded to 504111707)

Note: Incl. 5, 16 - 22

$86.99

$

Usually ships in 3-10 days

0

16

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

17

Husqvarna 506308101

BRACKET

$16.14

$

Usually ships in 3-10 days

0

18

Husqvarna 732211401

LOCK NUT

$6.49

$

In Stock, Qty 8

0

19

Husqvarna 725246951

SCREW

$

$

Not available

20

Husqvarna 725246351

SCREW

$5.99

$

In Stock, only 4 left!

0

21

Husqvarna 506314501

SPACER TUBE

$5.49

$

Usually ships in 3-10 days

0

22

Husqvarna 725532955

SCREW

$6.49

$

In Stock, Qty 20+

0
