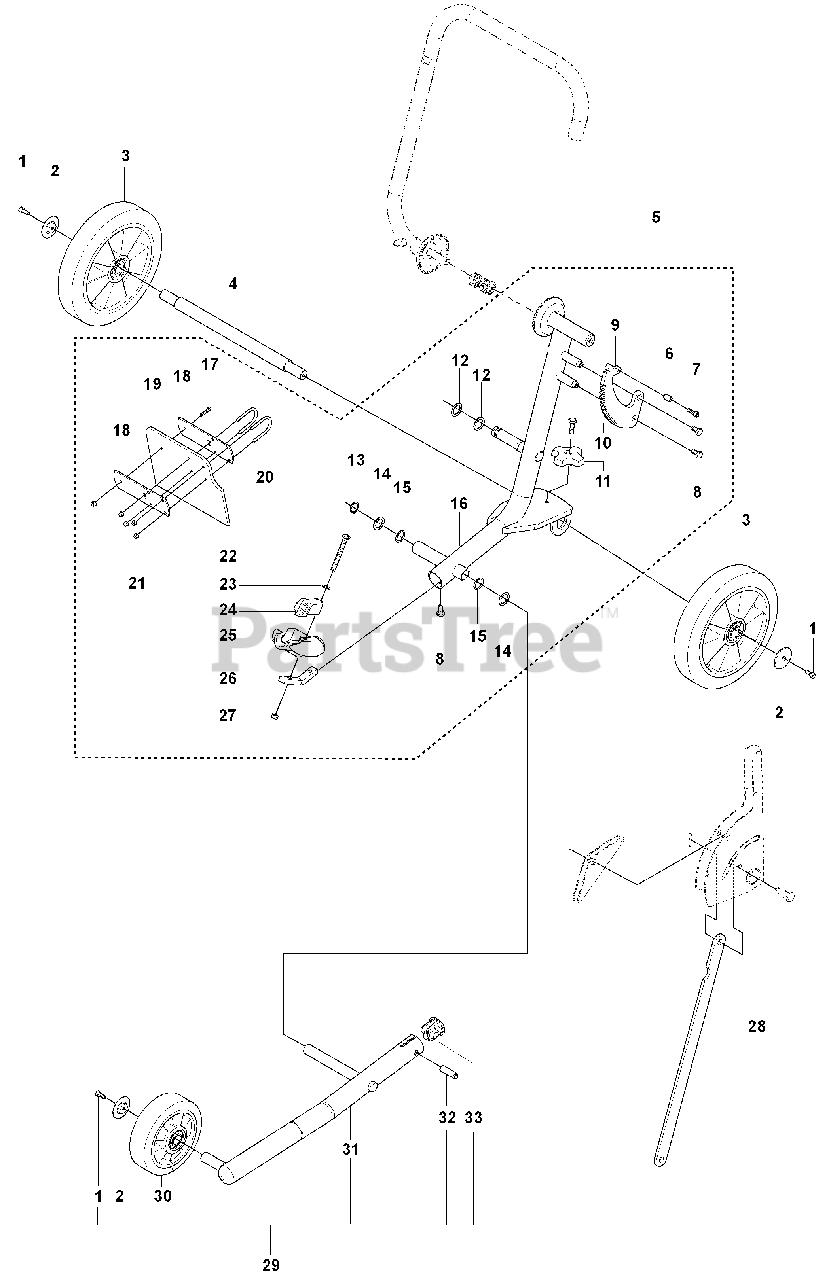

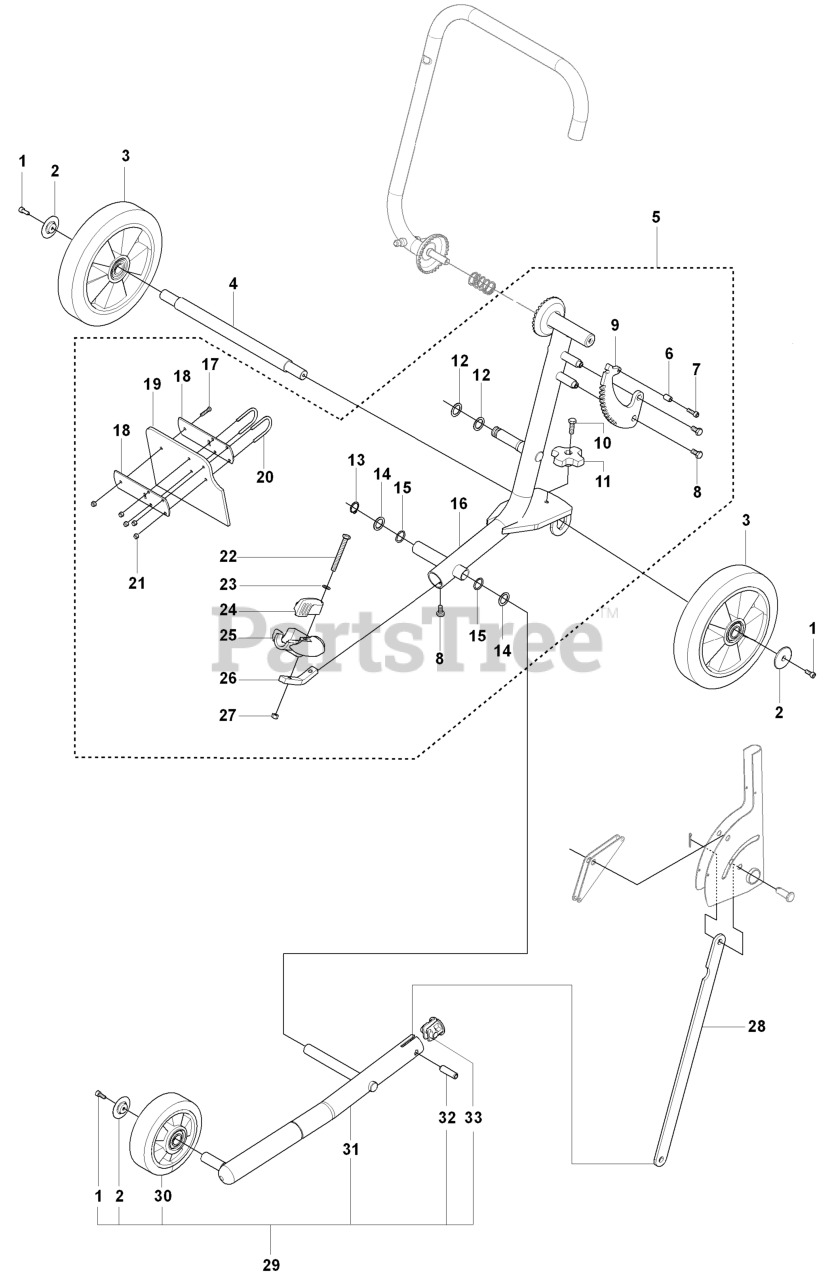

KV 750 - Husqvarna Cutting Trolley (2007-06) Wheel Assy and Frame Parts Diagram

Cutting Trolley

Wheel Assy and Frame Parts Diagram

  • Title

1

Husqvarna 725536801

SCREW

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 501321201

WASHER BACK WHEEL SHAFT

$59.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544953001

WHEEL ASSY

$

$

Currently unavailable

4

Husqvarna 544919401

SHAFT

$141.99

$

Usually ships in 3-10 days

0

5

Husqvarna 544953101

FRAME

Note: Incl. 6 - 27

$

$

Currently unavailable

6

Husqvarna 544932601

DRIVE SCREW

$

$

Currently unavailable

7

Husqvarna 725537001

SCREW MC6S 6X20
(Superseded to 725537055)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 725244971

REPL BY 725 24 49-51
(Superseded to 725244951)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 544919901

SHEET

$148.99

$

Usually ships in 3-10 days

0

10

Husqvarna 725245371

SCREW

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 501020001

KNOB
(Superseded to 504569301)

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 501019701

O-RING

$

$

Not available

13

Husqvarna 735312200

RETAINING RING SGA 20

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 501018001

WASHER

$

$

Not available

15

Husqvarna 501019601

O-RING

$2.49

$

Usually ships in 3-10 days

0

16

Husqvarna 544953401

FRAME TUBE

$

$

Not available

17

Husqvarna 725233171

SCREW

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 544962401

SPRING

$

$

Not available

19

Husqvarna 544962801

FENDER

$65.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544962901

SHACKLE

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 732251401

LOCK NUT

$2.49

$

Usually ships in 3-10 days

0

22

Husqvarna 725246571

SCREW

$

$

Not available

23

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 544918201

TURNING KNOB

$

$

Not available

25

Husqvarna 544918401

HOLDER

$27.99

$

Usually ships in 3-10 days

0

26

Husqvarna 544920701

SUPPORT

$43.99

$

Usually ships in 3-10 days

0

27

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

28

Husqvarna 544923901

ROD

$

$

Not available

29

Husqvarna 544953801

FRAME TUBE

Note: Incl. 1, 2, 30 - 33

$

$

Currently unavailable

30

Husqvarna 502530001

WHEEL

$

$

Currently unavailable

31

Husqvarna 544953901

FRAME

$

$

Not available

32

Husqvarna 501019801

SPRING PIN

$9.99

$

Usually ships in 3-10 days

0

33

Husqvarna 544922701

COVER LID

$10.99

$

Usually ships in 3-10 days

0
