KV 960 - Husqvarna Cutting Trolley (2008-01) Wheels and Frame Tube Parts Diagram

Cutting Trolley

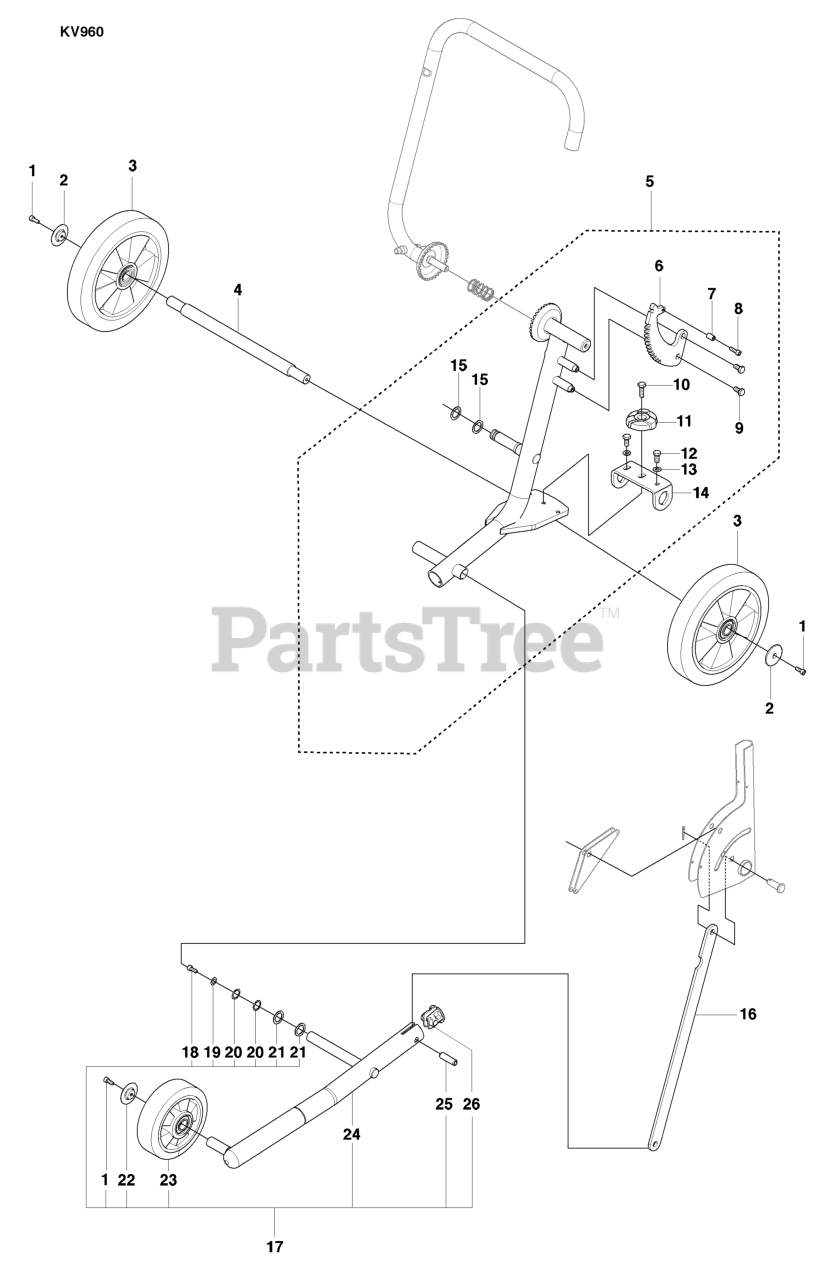

Wheels and Frame Tube Parts Diagram

  • Title

1

Husqvarna 725536801

SCREW

$3.49

$

In Stock, only 3 left!

0

2

Husqvarna 501321201

WASHER BACK WHEEL SHAFT

$57.99

$

Usually ships in 3-10 days

0

3

Husqvarna 504185501

WHEEL BLACK
(Superseded to 590726701)

$79.99

$

Usually ships in 3-10 days

0

4

Husqvarna 544919401

SHAFT

$141.99

$

Usually ships in 3-10 days

0

5

Husqvarna 504735302

FRAME

Note: Incl. 6 - 15

$998.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544919901

SHEET

$125.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544962601

SPACING SLEEVE

$30.99

$

Usually ships in 3-10 days

0

8

Husqvarna 725537001

SCREW MC6S 6X20
(Superseded to 725537055)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 725244971

REPL BY 725 24 49-51
(Superseded to 725244951)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 505456101

SCREW

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 504569301

TURNING KNOB

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 725245171

SCREW

$1.99

$

In Stock, only 4 left!

0

13

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

In Stock, only 2 left!

0

14

Husqvarna 501321301

BRACKET BACK WHEEL SHAFT

$48.99

$

Usually ships in 3-10 days

0

15

Husqvarna 502465101

O-RING

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544923902

ROD

$62.99

$

Usually ships in 3-10 days

0

17

Husqvarna 506497002

FRAME TUBE

Note: Incl. 1, 18 - 26

$

$

Not available

18

Husqvarna 725244971

REPL BY 725 24 49-51
(Superseded to 725244951)

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 504581101

WASHER

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 501019601

O-RING

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 504581001

CUP SPRING

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 506497301

PLATE

$120.99

$

Usually ships in 3-10 days

0

23

Husqvarna 543045954

SERVICE TOOL

$

$

Not available

24

Husqvarna 506497501

FRAME TUBE

$

$

Not available

25

Husqvarna 501019801

SPRING PIN

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 544922701

COVER LID

$9.49

$

Usually ships in 3-10 days

0
