KV 970 - Husqvarna Cutting Trolley (2010-03) FRAME Parts Diagram

Cutting Trolley

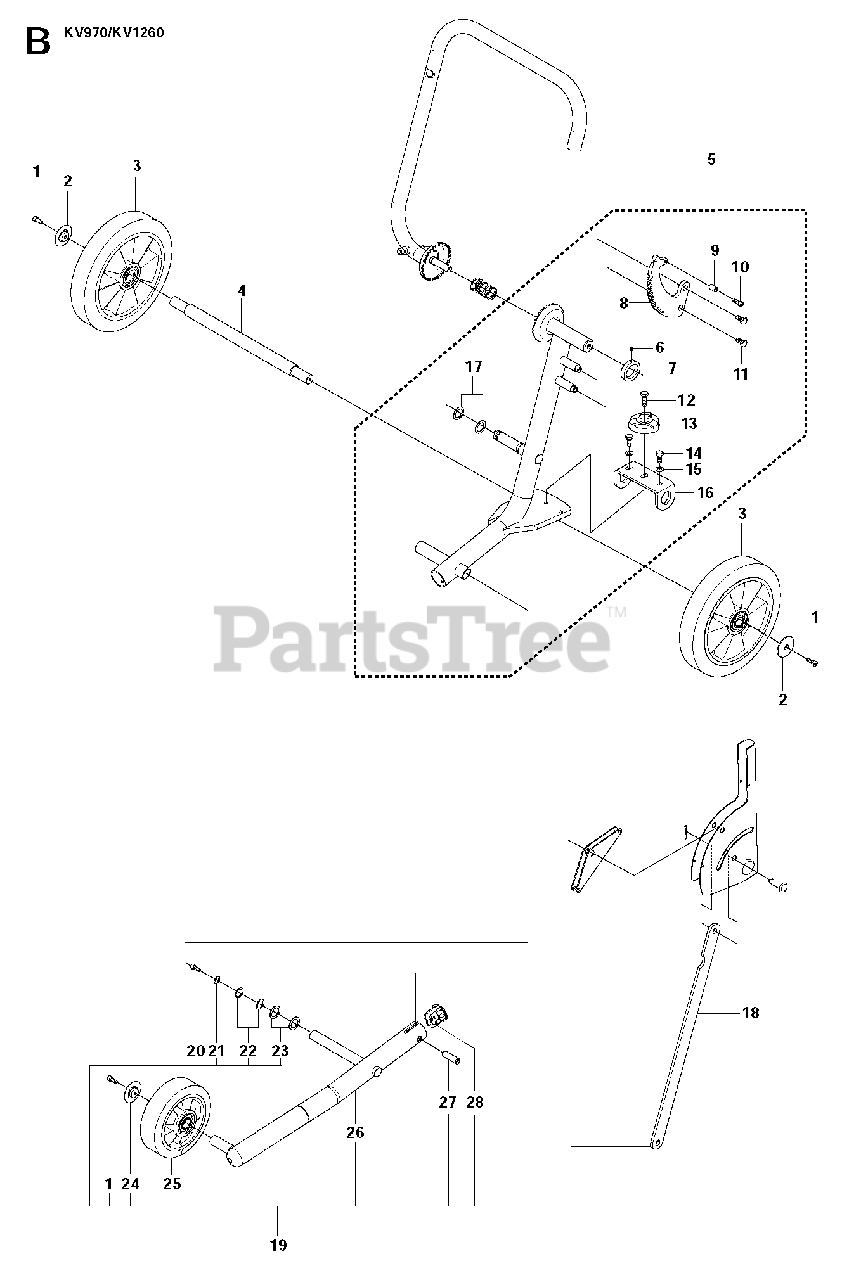

FRAME Parts Diagram

  • Title

1

Husqvarna Construction 725 53 68-51

SCREW IHSCM

$3.49

$

In Stock, Qty 5

0

2

Husqvarna 501 32 12-01

WASHER

$59.99

$

Usually ships in 3-10 days

0

3

Husqvarna 504 18 55-01

WHEEL
(Superseded to 590726701)

$83.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 544 91 94-01

SHAFT

$141.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 504 73 53-02

FRAMEIncl. 6 - 17

$998.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 542 13 97-69

SCREW

$2.49

$

In Stock, only 1 left!

0

7

Husqvarna Construction 504 59 57-01

STOP WASHER

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 544 91 99-01

SHEET

$148.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 544 96 26-01

SPACING SLEEVE

$33.99

$

Usually ships in 3-10 days

0

10

Husqvarna 725 53 70-01

SCREW IHSCM
(Superseded to 725537055)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 725 24 49-71

SCREW EHHM
(Superseded to 725244951)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 505 45 61-01

SCREW

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 504 56 93-01

TURNING KNOB

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 725 24 51-71

SCREW EHHM

$1.99

$

In Stock, only 4 left!

0

15

Husqvarna 734 11 65-41

WASHER

$5.99

$

In Stock, only 2 left!

0

16

Husqvarna Construction 501 32 13-01

BRACKET

$48.99

$

Usually ships in 3-10 days

0

17

Husqvarna 502 46 51-01

O-RING

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 544 92 39-02

ROD

$65.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 575 33 23-01

FRAMEIncl. 1, 20 - 28

$2068.99

$

Usually ships in 3-10 days

0

20

Husqvarna 725 24 49-71

SCREW EHHM
(Superseded to 725244951)

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 504 58 11-01

WASHER

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 501 01 96-01

O-RING

$2.49

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 504 58 10-01

CUP

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 506 49 73-01

PLATE

$131.99

$

Usually ships in 3-10 days

0

25

Husqvarna Construction 543 04 59-54

WHEEL

$

$

Not available

26

Husqvarna Construction 575 33 20-01

FRAME

$382.99

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 501 01 98-01

SPRING PIN

$9.99

$

Usually ships in 3-10 days

0

28

Husqvarna 544 92 27-01

COVER LID

$10.99

$

Usually ships in 3-10 days

0
