KWS 20 A (HD050A-BS00) - Kawasaki Semi Trash Pump CARBURETOR Parts Diagram

Semi Trash Pump

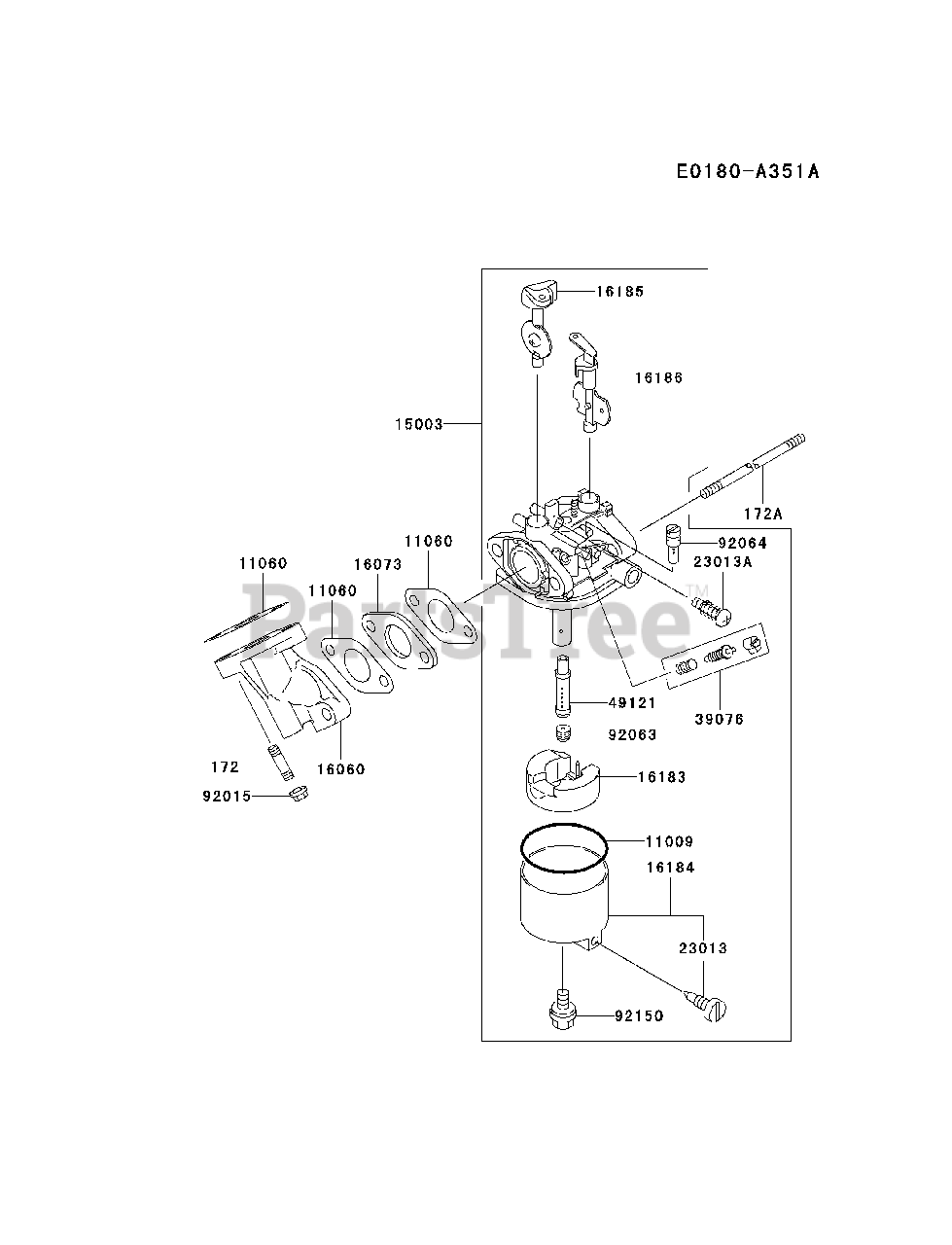

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 110092919

GASKET

$11.99

$

In Stock, Qty 20+

0

11060

Kawasaki 110602051

GASKET,CARBURETOR
(Superseded to 11009-2142)

$1.99

$

In Stock, Qty 20+

0

15003

Kawasaki 15003-2704

CARBURETOR-ASSY

$

$

Not available

16060

Kawasaki 160602160

PIPE-INTAKE

$26.99

$

In Stock, only 1 left!

0

16073

Kawasaki 160732180

INSULATOR
(Superseded to 16073-2147)

$2.49

$

In Stock, Qty 6

0

16183

Kawasaki 161832005

FLOAT-ASSY
(Superseded to 16183-2001)

$54.99

$

In Stock, only 1 left!

0

16184

Kawasaki 161842002

CHAMBER-ASSY-FLOAT

$55.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 161852022

VALVE-ASSY-THROTTLE

$64.99

$

Usually ships in 2-5 days

0

16186

Kawasaki 16186-2013

VALVE-ASSY-CHOKE

$

$

Not available

23013

Kawasaki 230132053

SCREW-ASSY

$13.99

$

Usually ships in 2-5 days

0

23013A

Kawasaki 230132054

SCREW-ASSY

$10.99

$

Usually ships in 2-5 days

0

39076

Kawasaki 390762055

LIMITER

$13.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 491212212

NOZZLE-MAIN

$21.99

$

In Stock, only 1 left!

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92063

Kawasaki 920632315

JET-MAIN,#65

$16.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 920642086

JET-PILOT,#40

$16.99

$

In Stock, only 1 left!

0

92150

Kawasaki 921502209

BOLT

$9.49

$

In Stock, only 1 left!

0

172

Kawasaki 172G0618

BOLT-STUD
(Superseded to 172BA0618)

$1.49

$

In Stock, only 1 left!

0

172A

Kawasaki 172G0680

BOLT-STUD
(Superseded to 172BA0680)

$3.49

$

In Stock, Qty 15

0
