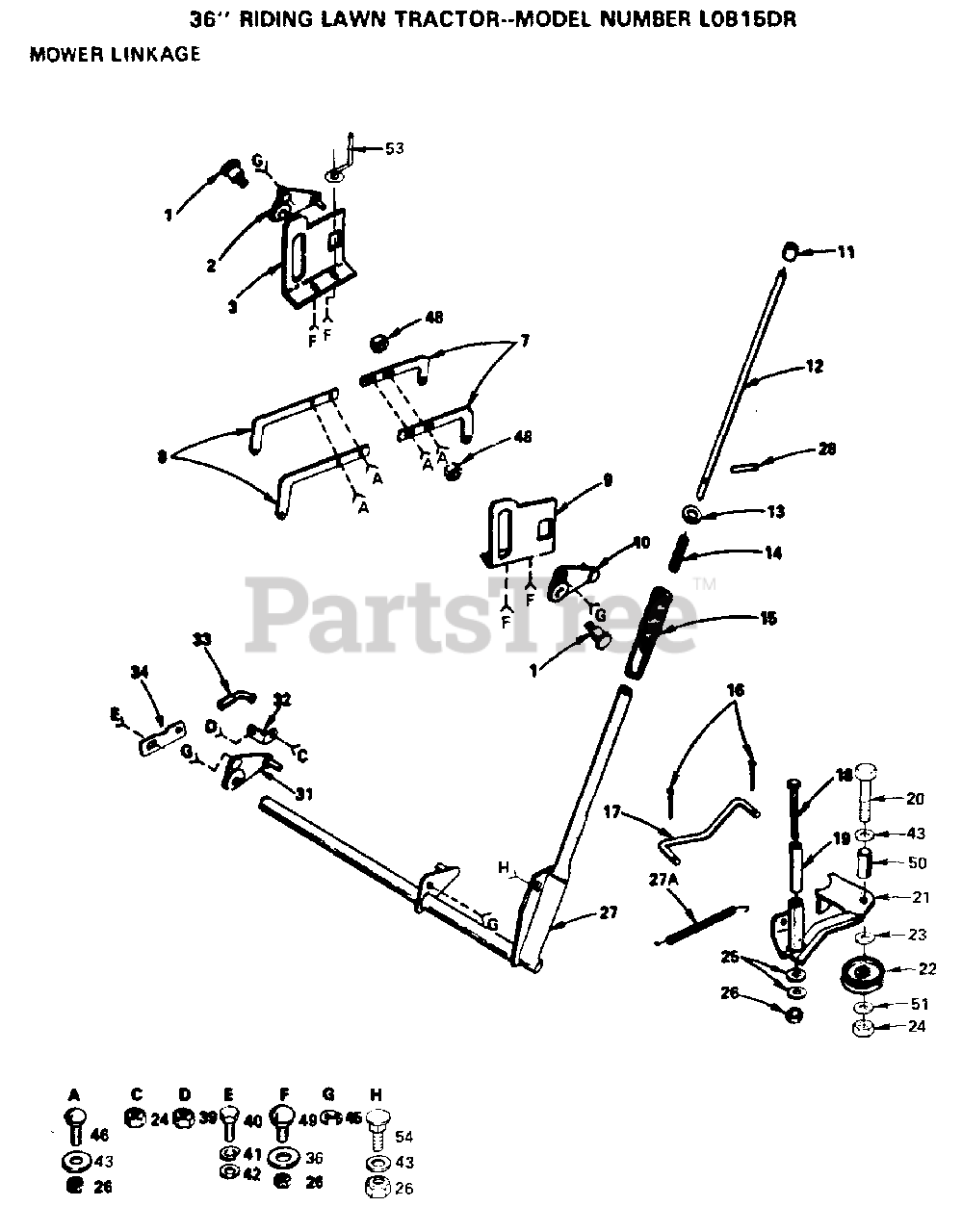

L 0815 DR - Electrolux/AYP Lawn Tractor MOWER LINKAGE Parts Diagram

Lawn Tractor

MOWER LINKAGE Parts Diagram

  • Title

1

Electrolux/AYP 4488J

SHOULDER BOLT T

$

$

Not available

2

Electrolux/AYP 677A110

ARM ASSY T

$

$

Not available

3

Electrolux/AYP 100526M

SLIDE BRKT T

$

$

Not available

7

Electrolux/AYP 512J

LIFT LINK ADJ T
(Superseded to 583768901)

$2.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 1658J

LIFT LINK LT

$

$

Not available

9

Electrolux/AYP 100525M

SLIDE BRKT T

$

$

Not available

10

Electrolux/AYP 677A109

NLA

$

$

Not available

11

Electrolux/AYP 7740J

SUB= 9479R

$

$

Not available

12

Electrolux/AYP 1663J

ROD PLUNGER T
(Superseded to 583688801)

$6.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

14

Electrolux/AYP 71669

SPRING LT

$

$

Not available

15

Electrolux/AYP 1747J

GRIP LT
(Superseded to 583693601)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 76020512

PIN - COTTER

$

$

Not available

17

Electrolux/AYP 102796X

SUB= 106404X

$

$

Not available

18

Electrolux/AYP 74760576

NLA

$

$

Not available

19

Electrolux/AYP 1850J

INNER SLEEVE T

$

$

Not available

20

Electrolux/AYP 74780648

BOLT LT
(Superseded to 583614301)

$

$

Not available

21

Electrolux/AYP 677A117

BRACKET

$

$

Not available

22

Electrolux/AYP 105313X

PULLEY LT
(Superseded to 583645101)

$

$

Not available

23

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

24

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19101216

WASHER

$

$

Not available

26

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 677A498

LIFT SHAFT ASST T

$

$

Not available

27A

Electrolux/AYP 106161X

SPRING

$

$

Not available

28

Electrolux/AYP 667J

NLA

$

$

Not available

31

Electrolux/AYP 677A497

LIFT ARM ASSY T

$

$

Not available

32

Electrolux/AYP 536J

ADJ BRACKET L T

$

$

Not available

33

Electrolux/AYP 100530K

ROD ADJ T

$

$

Not available

34

Electrolux/AYP 102797X

ARM-ADJ LT

$

$

Not available

36

Electrolux/AYP 19111010

WASHER LT

$

$

Not available

39

Electrolux/AYP 7810H

GRIPCO NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

41

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

42

Electrolux/AYP 19092016

WASHER
(Superseded to 819092016)

$4.99

$

In Stock, only 1 left!

0

43

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 12000007

E-RING LT
(Superseded to 583607201)

$6.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 73680800

NUT LTV
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

49

Electrolux/AYP 72140508

BOLT
(Superseded to 595901501)

$3.99

$

In Stock, Qty 17

0

50

Electrolux/AYP 101496X

SPACER LT
(Superseded to 583639901)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 106317X

SNUBBER-BELT

$

$

Not available

54

Electrolux/AYP 72110506

SUB= 72270506
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0
