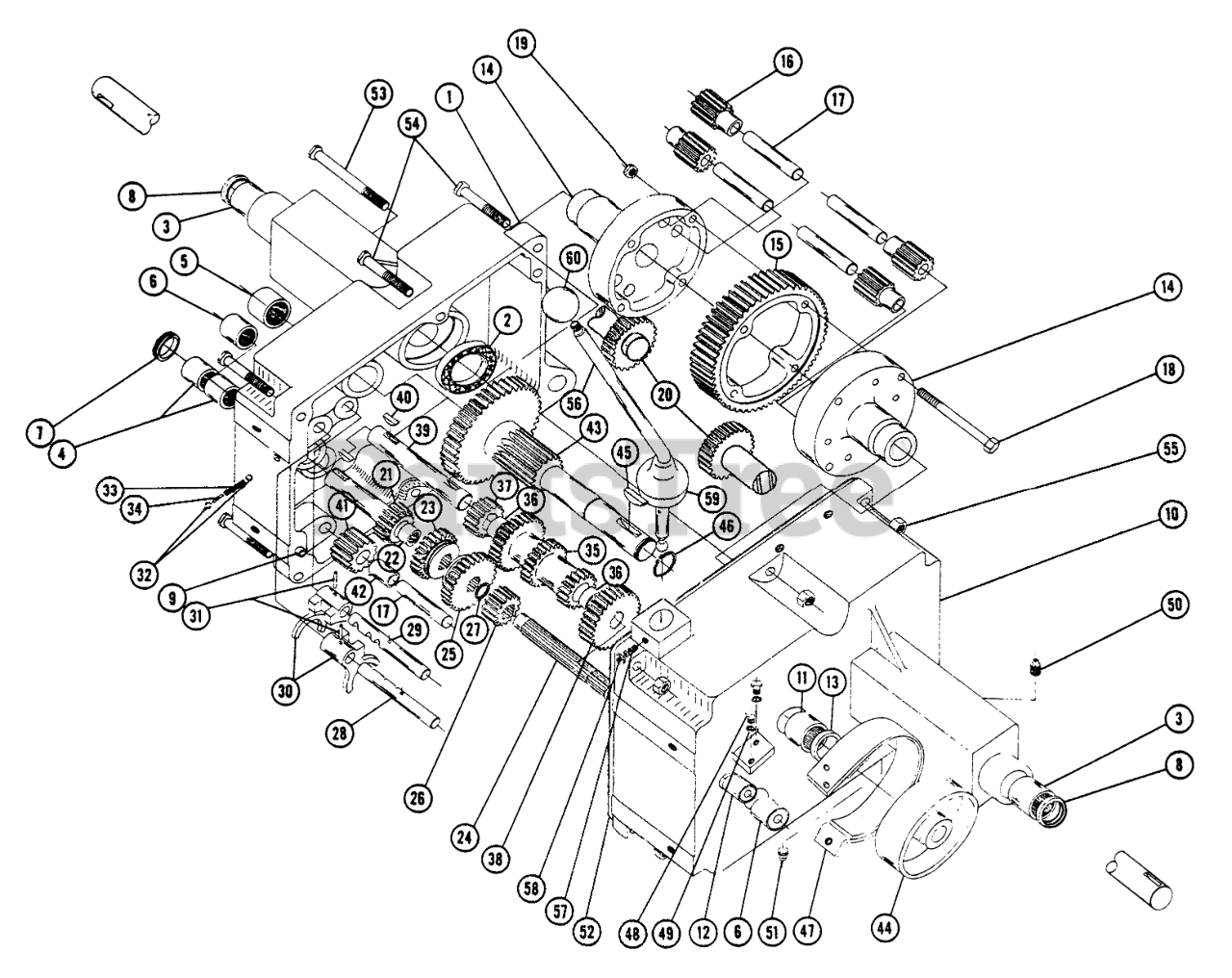

L-105 - Toro Lawn Tractor (1965) Transmission Parts List Parts Diagram

Lawn Tractor

Transmission Parts List Parts Diagram

  • Title

1

Toro 3900

DISCONTINUED

$

$

Not available

2

Toro 1533

DISCONTINUED

$

$

Not available

3

Toro 5571

DISCONTINUED

$

$

Not available

4

Toro 1508

See Supercession: 252-6
(Superseded to 252-6)

$13.99

$

In Stock, Qty 7

0

5

Toro 1532

BEARING-NEEDLE

$65.99

$

In Stock, only 2 left!

0

6

Toro 1529

BEARING-NEEDLE

$55.99

$

Usually ships in 3-6 days

0

7

Toro 1303

See Supercession: 100441
(Superseded to 100441)

$10.99

$

In Stock, Qty 12

0

8

Toro 1232

See Supercession: 100863
(Superseded to 100863)

$19.99

$

In Stock, only 2 left!

0

9

Toro 3915

PIN-DOWEL

$8.49

$

Usually ships in 3-6 days

0

10

Toro 3901

DISCONTINUED

$

$

Not available

11

Toro 1530

See Supercession: 704019
(Superseded to 704019)

$

$

Not available

12

Toro 1531

DUP PART SEE $BOOK

$

$

Not available

13

Toro 1232

See Supercession: 100863
(Superseded to 100863)

$19.99

$

In Stock, only 2 left!

0

14

Toro 3905

DIFFERENTIAL CASE

$

$

Not available

15

Toro 5575

Gear-Differential Bull

$

$

Currently unavailable

16

Toro 4235

DISCONTINUED

$

$

Not available

17

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

18

Toro 1329

See Supercession: 703223
(Superseded to 703223)

$

$

Not available

19

Toro 1316

See Supercession: 108687
(Superseded to 108687)

$1.49

$

Usually ships in 3-6 days

0

20

Toro 5577

DISCONTINUED

$

$

Not available

21

Toro 3522

DISCONTINUED

$

$

Not available

22

Toro 1518

BEARING-NEEDLE

$33.99

$

Usually ships in 3-6 days

0

23

Toro 3523

DISCONTINUED

$

$

Not available

24

Toro 3907

DISCONTINUED

$

$

Not available

25

Toro 3524

DISCONTINUED

$

$

Not available

26

Toro 5572

DISCONTINUED
(Superseded to 3526)

$

$

Not available

27

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 5

0

28

Toro 5615

RAIL-SHIFT

$130.99

$

Usually ships in 3-6 days

0

29

Toro 5616

RAIL-REAR SHIFT

$100.99

$

Usually ships in 3-6 days

0

30

Toro 3503

FORK-SHIFT

$147.99

$

Usually ships in 3-6 days

0

31

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 8

0

32

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 3 left!

0

33

Toro 3518

See Supercession: 106030
(Superseded to 106030)

$3.49

$

In Stock, Qty 13

0

34

Toro 5614

PIN-SHIFT

$

$

Not available

35

Toro 3525

See Supercession: 7269
(Superseded to 7269)

$

$

Not available

36

Toro 1504

BUSHING-BRONZE

$53.99

$

Usually ships in 3-6 days

0

37

Toro 3528

DISCONTINUED

$

$

Not available

38

Toro 5574

See Supercession: 3527
(Superseded to 3527)

$

$

Not available

39

Toro 3910

DISCONTINUED

$

$

Not available

40

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 15

0

41

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$177.99

$

Usually ships in 3-6 days

0

42

Toro 1516

BUSHING

$

$

Not available

43

Toro 3903

DISCONTINUED XREF

$

$

Not available

44

Toro 3902

DISCONTINUED

$

$

Not available

45

Toro 937022

KEY-WOODRUFF

$3.49

$

In Stock, only 3 left!

0

46

Toro 936131

See Supercession: 32151-29
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 8

0

47

Toro 4437

See Supercession: 7376
(Superseded to 7376)

$192.99

$

Usually ships in 3-6 days

0

48

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

49

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

50

Toro 943460-4

Plug 1/4 Pipe

$

$

Currently unavailable

51

Toro 943420-4

Plug 3/8 Pipe

$

$

Currently unavailable

52

Toro 3912

GASKET-TRANSMISSION

$11.99

$

In Stock, only 3 left!

0

53

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

54

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

55

Toro 915113-6

Nut

$

$

Currently unavailable

56

Toro 5279

Stick-Ship Ass-y.

$

$

Currently unavailable

57

Toro 1239

SETSCREW

$11.99

$

In Stock, Qty 6

0

58

Toro 915111-4

Nut 1/4-20

$

$

Currently unavailable

59

Toro 3577

COVER-DUST

$

$

Not available

60

Toro 1001

DUP PART SEE $BOOK

$

$

Not available
