L 10575 E (1694986) - Simplicity 30" Snow Thrower, 10.5hp Auger Drive Group Parts Diagram

30" Snow Thrower, 10.5hp

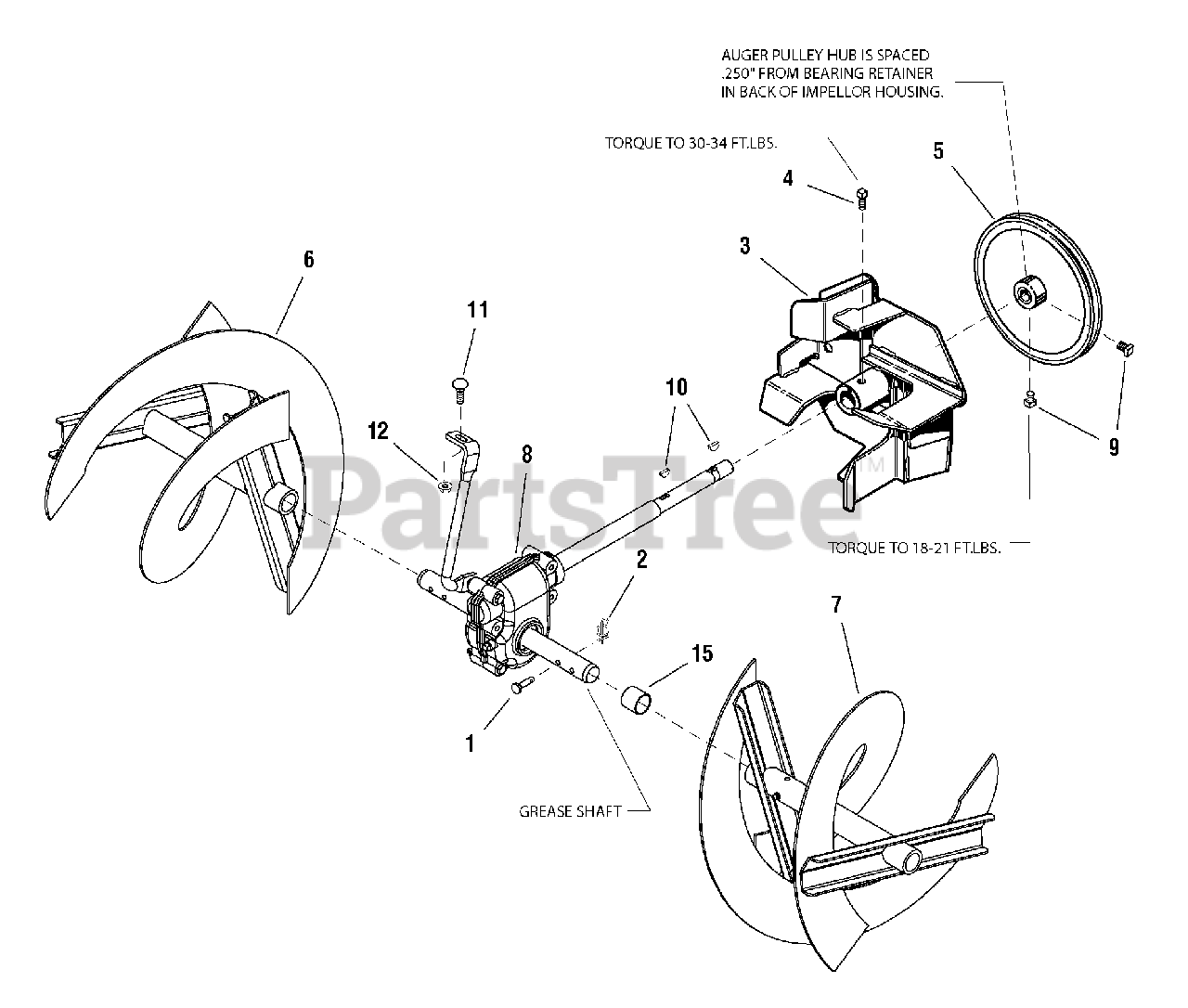

Auger Drive Group Parts Diagram

  • Title

1

Simplicity 1668344SM

PIN, SHEAR
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1918447SM

COTTER PIN, 1/4" Self Locking
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1612187ASM

IMPELLER ASSEMBLY, Large Frame Snow
(Superseded to 1612187BMYP)

$201.99

$

In Stock, only 2 left!

0

4

Simplicity 1960474SM

SCREW, Set, Square Head Cup Point 3/8-16 x 1/2 G8

$5.99

$

In Stock, Qty 7

0

5

Simplicity 1732185SM

PULLEY, w/Hub
(Superseded to 1752220YP)

$87.99

$

In Stock, Qty 6

0

6

Simplicity 1718783ASM

AUGER ASSEMBLY, 24" & 26" R.H.
(Superseded to 1734674BMYP)

$207.99

$

Usually ships in 2-12 days

0

6

Simplicity 1718785ASM

AUGER ASSEMBLY, 28" & 30" R.H.

$171.99

$

Usually ships in 2-12 days

0

6

Simplicity 1718787ASM

AUGER ASSEMBLY, 32" R.H.

$170.99

$

Usually ships in 2-12 days

0

7

Simplicity 1718782ASM

AUGER ASSEMBLY, 24" & 26" L.H.

$165.99

$

Usually ships in 2-12 days

0

7

Simplicity 1718784ASM

AUGER ASSEMBLY, 24" & 30" L.H.

$171.99

$

Usually ships in 2-12 days

0

7

Simplicity 1718786ASM

AUGER ASSEMBLY, 32" L.H.

$170.99

$

Usually ships in 2-12 days

0

8

Simplicity 1732303SM

GEAR BOX ASSEMBLY

$512.99

$

Usually ships in 2-12 days

0

9

Simplicity 1928721SM

SCREW, Set, Square Head Cup Point 5/16-18 x 1/2 G8

$4.99

$

In Stock, Qty 12

0

10

Simplicity 2818312SM

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18HEX FLANGE 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Simplicity 1733406SM

TUBE

$5.49

$

In Stock, only 2 left!

0
